ST 330 T (961930095-02) - Husqvarna 30" Snow Blower (2015-09) TRACK SYSTEM Parts Diagram

30" Snow Blower

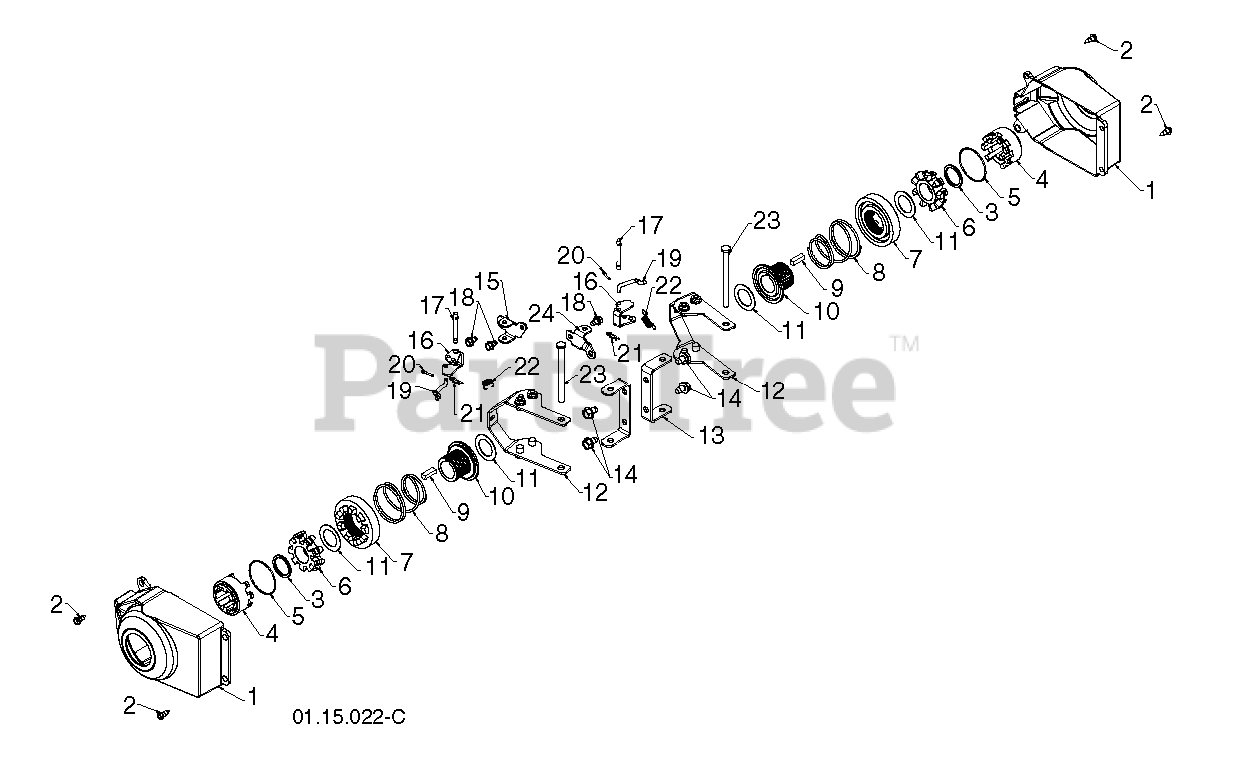

TRACK SYSTEM Parts Diagram

  • Title
11

Husqvarna 532444949

WASHER 1.00

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532405161

COVER, POWER STEERING

$10.99

$

In Stock, only 1 left!

0

7

Husqvarna 581644901

SLIDE.CLUTCH.SNOW

$44.99

$

In Stock, only 2 left!

0

19

Husqvarna 532405077

LINK.STEER.YOKE

$

$

Not available

17

Husqvarna 532181847

PIN, STEERING BELLCRANK

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532184197

BRACKET.STEER.PNT.BLACK

$

$

Not available

20

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 585057001

SPACER.POWER.STEERING TRACK

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585056801

DRIVER.WHEEL.POWER.STEERING

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585351601

SPRING COMPRESSION TAPERED.PS

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532182015

PIN, STEERING LEVER

$4.99

$

Usually ships in 3-10 days

0

10

$12.99

$

In Stock, only 2 left!

0

9

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532187622

LOBE WHEEL

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532182466

RING, WIRE RETAINER

$7.49

$

In Stock, Qty 5

0

24

Husqvarna 532199512

BRACKET.STEER.PIVOT.LH.YZ
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532199518

BELLCRANK.STEER
(Superseded to 532194944)

$

$

Not available

14

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584927902

YOKE.ASM.BOLT.BLACK

$

$

Not available

15

Husqvarna 532199511

BRKT.STEER.PIVOT.RH
(Superseded to 532194943)

$

$

Not available

21

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0
