ST 330 T (961910086-01) - Husqvarna 30" Snow Blower (2015-06) AUGER HOUSING IMPELLER Parts Diagram

30" Snow Blower

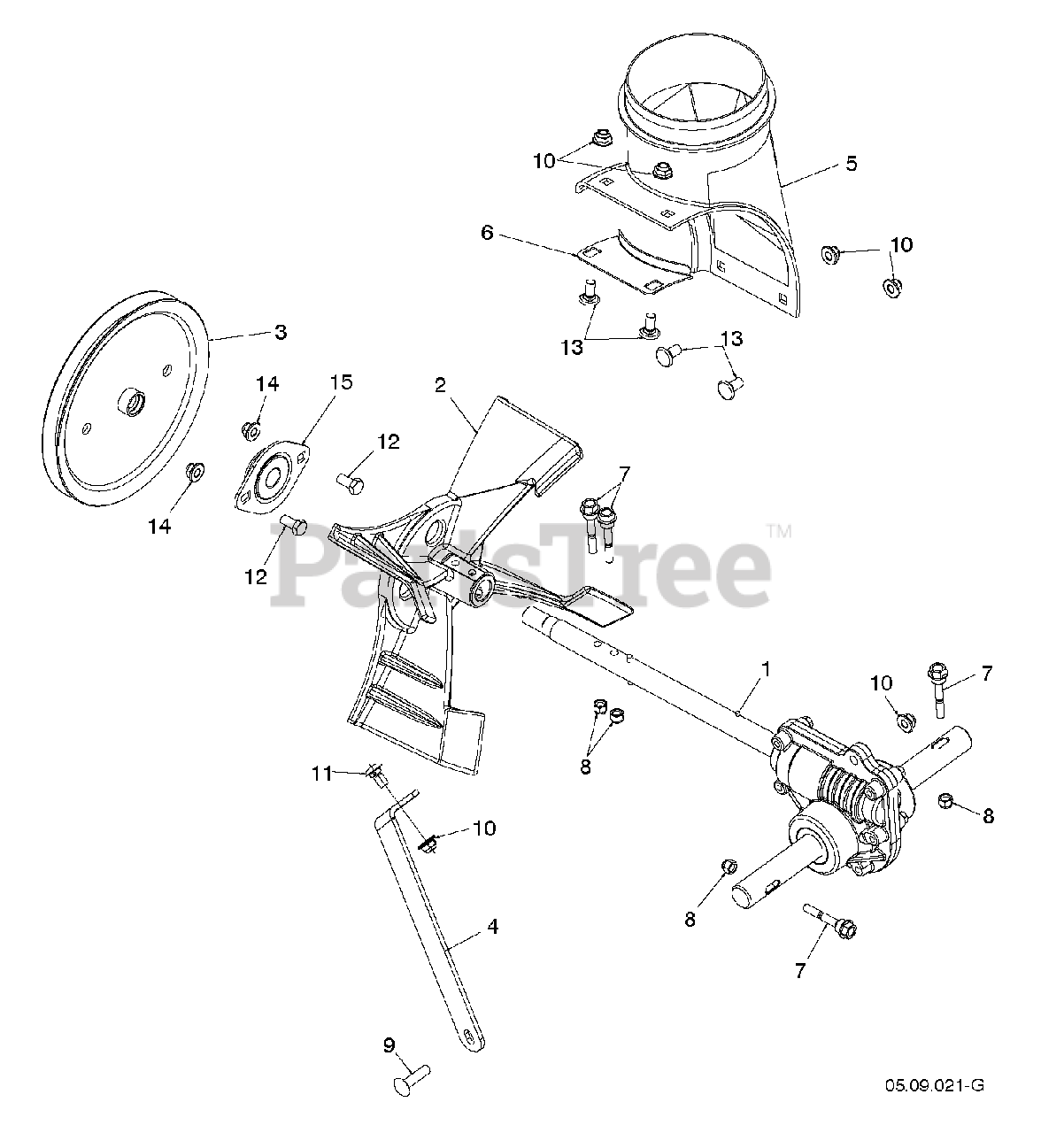

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Husqvarna 586715001

GEAR BOX ASM CAST
(Superseded to 597371601)

$338.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585198303

IMPELLER CAST.IRON.12IN MS 417

$157.99

$

In Stock, only 1 left!

0

3

Husqvarna 586715401

PULLEY SCREW ON 7.9

$34.99

$

In Stock, only 1 left!

0

4

Husqvarna 585109004

SUPPORT.GEARBOX.LS.498

$7.99

$

In Stock, only 1 left!

0

5

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$11.99

$

In Stock, Qty 5

0

6

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 9

0

7

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, Qty 8

0

11

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$7.49

$

In Stock, Qty 8

0

14

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0
