ST 330 P (961930094-02) - Husqvarna 30" Snow Blower (2015-06) ACCESSORIES Parts Diagram

30" Snow Blower

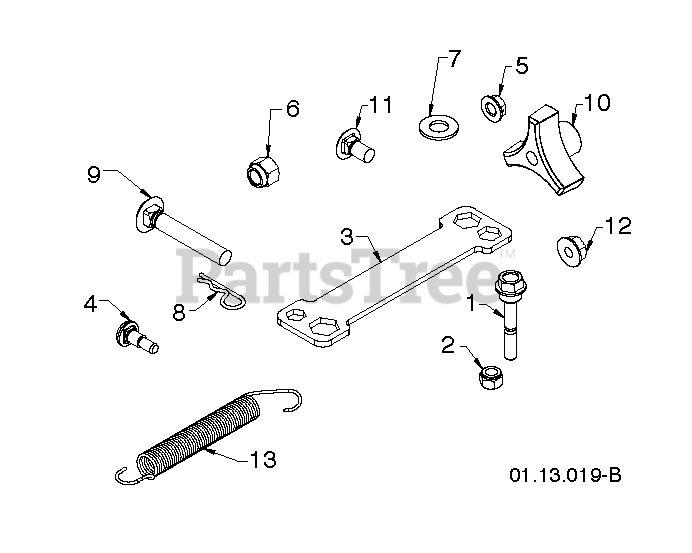

ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532429112

WRENCH.SNOWTHROWER.ZINC.YZ

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 10

0

5

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

11

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 8

0

--

Husqvarna 588556301

Note: NOT SHOWN

$

$

Currently unavailable
