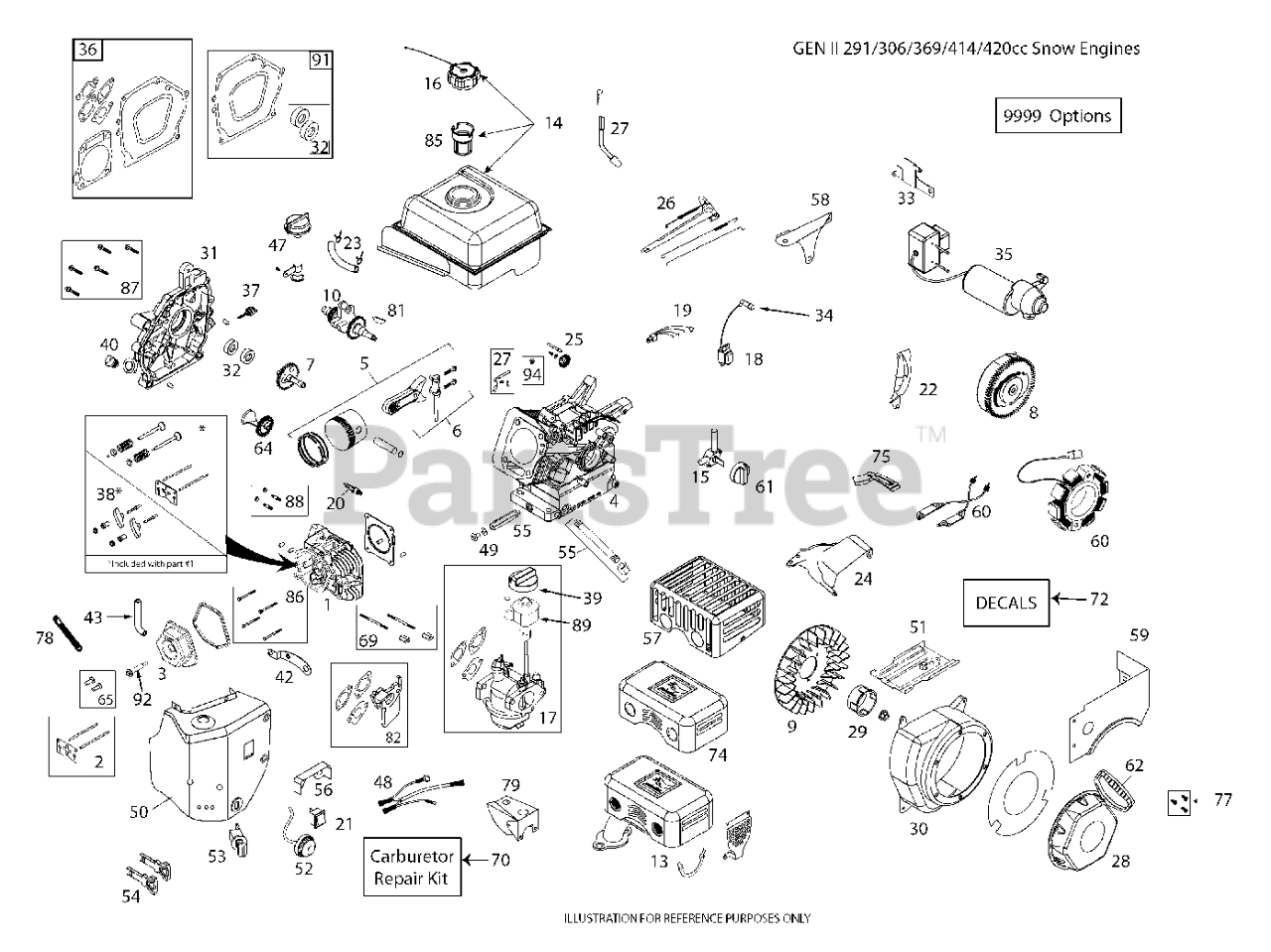

ST 330 - Husqvarna 30" Snow Blower ENGINE Parts Diagram

30" Snow Blower

ENGINE Parts Diagram

  • Title

19

000000000

Note: For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

30

Husqvarna 587394101

BLOWER LCT 414CC

$

$

Not available

91

Husqvarna 587994104

GASKET KIT CRANKSHAFT.LCT

$56.99

$

Usually ships in 3-10 days

0

59

Husqvarna 582621701

FUEL TANK SKIRT.LCT.369/420CC

$60.99

$

Usually ships in 3-10 days

0

97

Husqvarna 590046601

GUARD.EXHAUST

Note: For 96193012800, 96193012801, 97046970100

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532429306

FLYWHEEL.FAN(SK4144000)

$34.99

$

Usually ships in 3-10 days

0

58

Husqvarna 597671001

SHIELDS

Note: For 97046960100, 97046970101

$20.99

$

Usually ships in 3-10 days

0

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$10.99

$

In Stock, only 4 left!

0

9999

Husqvarna 586326501

HIGH ALTITUDE JET 6000FT

$22.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532429606

PUSH ROD TAPPET KIT

$96.99

$

Usually ships in 3-10 days

0

28

Husqvarna 582621501

RECOIL

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$18.99

$

Usually ships in 3-10 days

0

24

Husqvarna TBD

Note: For 97046960100, (597 73 80-01) Speed Control -Fixed

$

$

Not available

60

Husqvarna 532443896

ALTERN.60WATT.SKSN2402.1

$145.99

$

Usually ships in 3-10 days

0

31

Husqvarna 580984101

CRANKCASE.COVER.LCT.414CC.HIGH

Note: For 97046970100, 97046970101, 97046960100

$193.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532443899

HANDLE.RECOIL.DELUXE.LCT

$17.99

$

Usually ships in 3-10 days

0

94

Husqvarna 588485501

SEAL GOVERNOR SHAFT OIL.LCT

$9.99

$

Usually ships in 3-10 days

0

43

Husqvarna 587179601

BREATHER TUBE LCT 291/369/414

$7.49

$

In Stock, only 1 left!

0

89

Husqvarna 587124801

KNOB LCT.SKSN5325.1 SPEED

$9.99

$

In Stock, only 1 left!

0

69

Husqvarna 586326701

STUD.CARB.MOUTING.KIT.414CC

$22.99

$

Usually ships in 3-10 days

0

87

Husqvarna 586327001

KIT.BOLT.CRANKCASE.COVER.414CC

$20.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532429221

KEY.SWITCH.ASSY.SNOW(SKSN4401)

$26.99

$

In Stock, only 3 left!

0

37

Husqvarna 532435534

DIPSTK.OIL.BLK.LCTSK4143711.1

$12.99

$

In Stock, only 2 left!

0

4

000000000

Note: For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

57

Husqvarna 532437466

CE COMPLIANT MUFFLER SHEILD

$45.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532429312

GOVERNOR.GEAR.ASSY(SK4142900)

$20.99

$

Usually ships in 3-10 days

0

78

Husqvarna 585771301

STRAP.RETAINING.TUBE.BREATHER.

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 582621601

STARTER CUP
(Superseded to 582621101)

$120.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532429286

RP TOP SHIELD
(Superseded to 532435579)

Note: For 96193012500, 96193012501

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532429211

FUEL.TANK.CAP.SNOW(SKSN4301)
(Superseded to 532424942)

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 597737901

MUFFLERS

Note: For 97046970100

$72.99

$

Usually ships in 3-10 days

0

19

000000000

Note: For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE

$

$

Not available

85

Husqvarna 586325601

STRAINER.FUEL.TANK.LCT.208CC

$8.99

$

In Stock, only 1 left!

0

48

Husqvarna 532429262

WIRE.HARNESS.SNOW

Note: For all EXCEPT 97046960100, 97046970101

$15.99

$

Usually ships in 3-10 days

0

70

Husqvarna 580353701

CARBURETTOR REPAIR KIT 291CC/4

$72.99

$

In Stock, only 1 left!

0

56

Husqvarna 532429213

SHIELD.VAPOR(SKSN4606)

Note: For all EXCEPT 97046960100, 97046970101

$72.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 597738101

CRANKCASES

Note: For 97046970100, 97046970101

$125.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587151301

CRANKSHAFT KEYED #18 LCT 414C

$250.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532429298

PLATE.GOVERN.LINK.S

Note: For all EXCEPT 97046960100, 97046970101

$21.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532429231

SHIELD.CYLINDER.SNOW(SK4141010

$4.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 579806401

KIT.BOLT.LCT.SK9990.1

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 586327401

KIT.BOLT.CYLINDER.HEAD.(4PC)

$27.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532443944

IGNITION.COIL.(CDI).291-414CC

$62.99

$

Usually ships in 3-10 days

0

4

000000000

Note: For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE

$

$

Not available

9999

Husqvarna 590920801

STARTER SCREW.STARTER SWITCH B

Note: For 97046960100, 97046970100, 97046970101

$5.99

$

Usually ships in 3-10 days

0

79

000000000

Note: For 97046960100, 97046970101, Combined with ref 58

$

$

Not available

8

Husqvarna 532443900

FLYWHEEL.EL.ST.SKSN4408.1

$278.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587179101

CARBURETTOR L18D LCT 369

Note: For all EXCEPT 97046970100

$169.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 3 left!

0

65

Husqvarna 581372901

TAPPET KIT.LCT.SK2911005.1

$12.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532429242

NONREMVABLE.OIL.PLUG(SK4143715

$10.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, only 2 left!

0

82

Husqvarna 585020501

SPACER.CARBURETOR.414CC.LCT

$12.99

$

Usually ships in 3-10 days

0

92

Husqvarna 587995201

CENTER VALVE COVER BOLT

$8.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 597671101

CLIPS

Note: For 97046960100, 97046970100, 97046970101

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582505201

PISTON ROD ASM.LCT SK3691400.1

$170.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532435494

OIL.DRAIN.PLUG

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 597738001

NEEDS DESCRIPTION

Note: For 97046970101

$

$

Currently unavailable

72

Husqvarna 587152201

ARIENS 414 SNOW DECAL KIT
(Superseded to 532435648)

Note: For 96193012500, 96193012501

$9.49

$

Usually ships in 3-10 days

0

42

000000000

Note: For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

48

Husqvarna 595012501

HARNESS WIRE. W/O OFF/ON SWITC

Note: For 97046960100, 97046970101

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532429223

ON/OFF.SWITCH.SNOW(SKSN4403)

Note: For all EXCEPT 97046960100, 97046970101

$17.99

$

Usually ships in 3-10 days

0

74

Husqvarna 587375301

MUFFLER SHIELD

$51.99

$

Usually ships in 3-10 days

0

42

000000000

Note: For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE

$

$

Not available

35

Husqvarna 532437465

STARTER EUROPEAN 230V ELECTRIC

Note: For all EXCEPT 96193012500, 96193012501, 97046960100

$512.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587176801

CYLINDER HEAD LCT 178 INCLUDES

$569.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532429608

COUNTER WEIGHT KIT

$182.99

$

Usually ships in 3-10 days

0

6

000000000

Note: For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE

$

$

Not available

52

Husqvarna 532429218

PRIMER.BULB.ASSY(SKSN4304)
(Superseded to 595079601)

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532429237

HIGHOIL.FILL.ASSY.KIT(SKSN4911

Note: For all EXCEPT 97046960100, 97046970101

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532429313

CAMSHAFT(SK4141600)

$84.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 4 left!

0

35

Husqvarna 532429297

ELEC.START.ASSY.SNOW(SKSN4400)

Note: For 96193012500, 96193012501, 97046960100

$341.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532429209

FUEL.TANK.ASSY.SNOW(SKSN4300)

$193.99

$

Usually ships in 3-10 days

0

17

Husqvarna 597937001

CARBURETORS

Note: For 97046970100

$145.99

$

Usually ships in 3-10 days

0

55

Husqvarna 587139901

OIL PIPE DRAIN EXTENDED.LCT SK

Note: For all EXCEPT 97046960100, 97046970101

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 591097701

CONTROL.SPEED.FIXED.LCT.SKSN44

Note: For 96193012800, 96193012801, 97046970100

$17.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532432146

FUEL HOSE KIT

$15.99

$

In Stock, only 1 left!

0

33

Husqvarna 532429290

ELECTRIC.START.BRKT(SKSN4405)

$21.99

$

Usually ships in 3-10 days

0

56

000000000

Note: For 97046960100, 97046970101, Combined with ref 58

$

$

Not available

72

000000000

Note: For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE

$

$

Not available

22

000000000

Note: For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

61

Husqvarna 532432752

FUEL KNOB-SNOW

$12.99

$

In Stock, only 2 left!

0

81

Husqvarna 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$26.99

$

In Stock, only 1 left!

0

27

Husqvarna 532429311

GOVERNOR.SHAFT(SK4143100)

$7.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532429294

HEATER.BOX.ASSY-SNW(SKSN4100)

Note: For all EXCEPT 97046970100, 97046970101

$109.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532429612

ROCKER ARM KIT

$34.99

$

Usually ships in 3-10 days

0

36

Husqvarna 587179401

GASKET KIT ENGINE LCT 369

$27.99

$

Usually ships in 3-10 days

0

6

000000000

Note: For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

26

Husqvarna 532429310

GOVERNOR.ARM.ASSY(SKSN4502)

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532429232

SHIELD.U/FYWHL.CHARG(SKSN4604)

Note: For 96193012500, 96193012501

$8.99

$

Usually ships in 3-10 days

0

50

Husqvarna 597738201

CARBURETORS

Note: For 97046970100, 97046970101, (597 73 82-01) Carburetor Heater Box

$27.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532429232

SHIELD.U/FYWHL.CHARG(SKSN4604)

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532429303

VALVE.COVER.LCT.414CC.

$31.99

$

In Stock, only 1 left!

0

13

Husqvarna 587198701

MUFFLER ASSY LCT SNO

Note: For 97046960100, 97046970100

$170.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532429316

OIL SEAL KIT NON-GENERATOR

$48.99

$

Usually ships in 3-10 days

0
