ST 327 P - Husqvarna 27" Snow Blower DRIVE Parts Diagram

27" Snow Blower

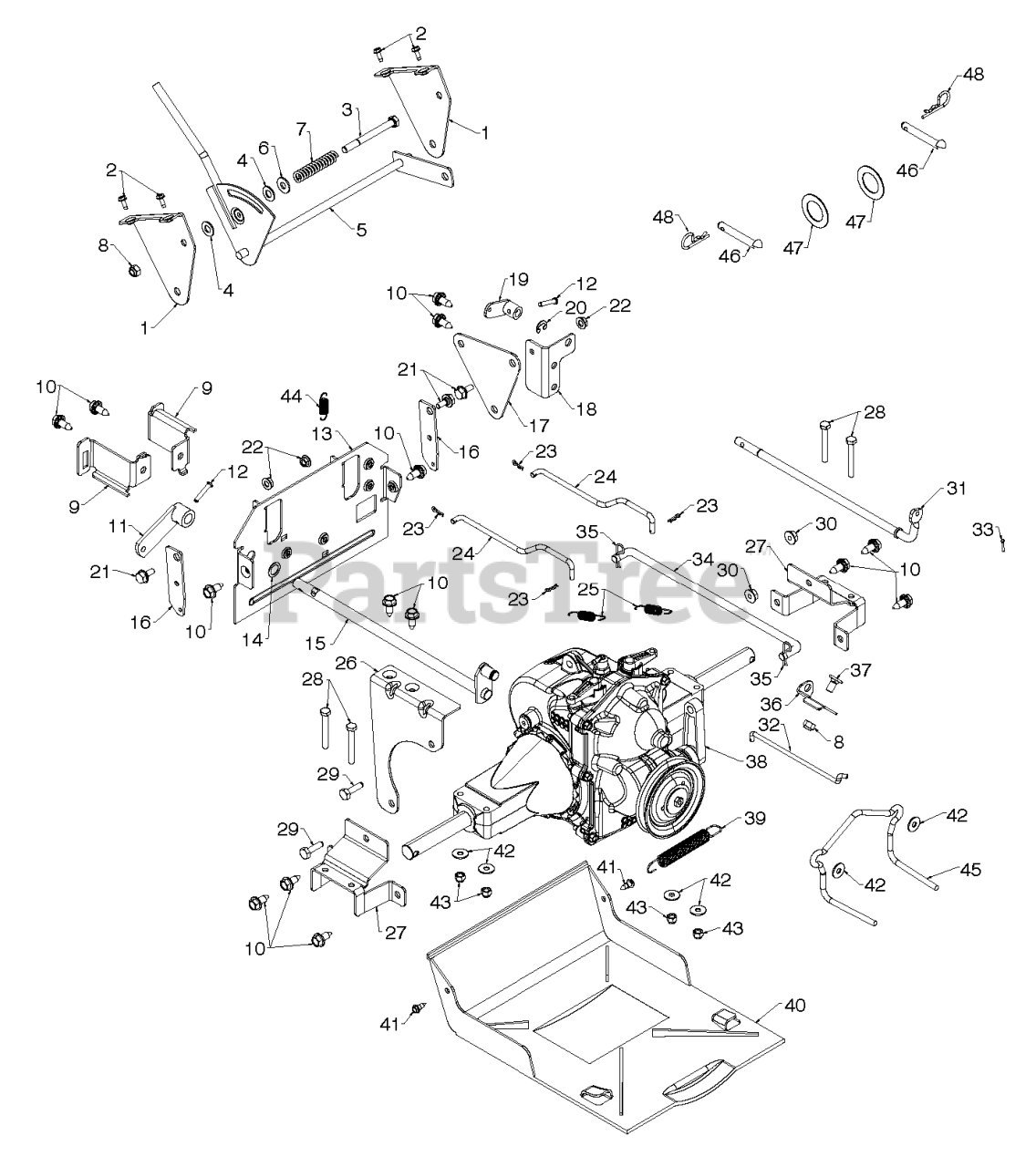

DRIVE Parts Diagram

  • Title
25

Husqvarna 532194124

SPRING.RETURN

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532443345

BRACKET.TRANSMISSION.MOUNT

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

$8.99

$

In Stock, Qty 7

0

3

Husqvarna 874760552

SCREW 5/16-18 X 3.25

$

$

Not available

36

Husqvarna 532429803

BRACKET.HYD.CLUTCH.

$

$

Not available

37

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

24

Husqvarna 532425496

ROD.STEER.HYD

$26.99

$

Usually ships in 3-10 days

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 532443346

BRACKET.HYDRO.STABILIZER

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

9

Husqvarna 532443347

BRACKET.CABLE.PNT.HYDRO

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

23

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

28

Husqvarna 874880432

BOLT.HEX.1/4-20X2.00.HEX.HD.

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

21

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532443348

BRACKET.SPEED.PIVOT.YZP

Note: For all EXCEPT 96191008302, 96191008303

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532443350

LEVER.STEER.CABLE.PNT.SNOW

Note: For 96191008302, 96191008303

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532425499

ROD.SPEED.CONT.HYD.SNOW

$10.99

$

Usually ships in 3-10 days

0

45

Husqvarna 584994501

GUIDE BELT.HYDRO 2

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532443349

BRACKET.SPEED.PIVOT.YZP

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 532443350

LEVER.STEER.CABLE.PNT.SNOW

Note: For all EXCEPT 96191008302, 96191008303

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532192195

SRPING.FRICTION.HYDRO

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 532198251

SHAFT.HYD.CLUTCH

$

$

Not available

38

Husqvarna 501111301

TRANSMISSION.HYDROII.PS
(Superseded to 591388201)

$1367.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532425498

PAN.BOTTOM.PLASTIC.SNOW

$31.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532198249

ARM.HYD.CLUTCH

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532443348

BRACKET.SPEED.PIVOT.YZP

Note: For 96191008302, 96191008303

$8.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532443344

BRACKET.SHIFT.HYDRO

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532425596

CONTROL.WLD.HYD.II

$60.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 532437151

PLATE.REAR.HYDRO.PNT.ORANGE

$9.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532446293

ROD.HYDRO CLUTCH

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 10

0

35

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0
