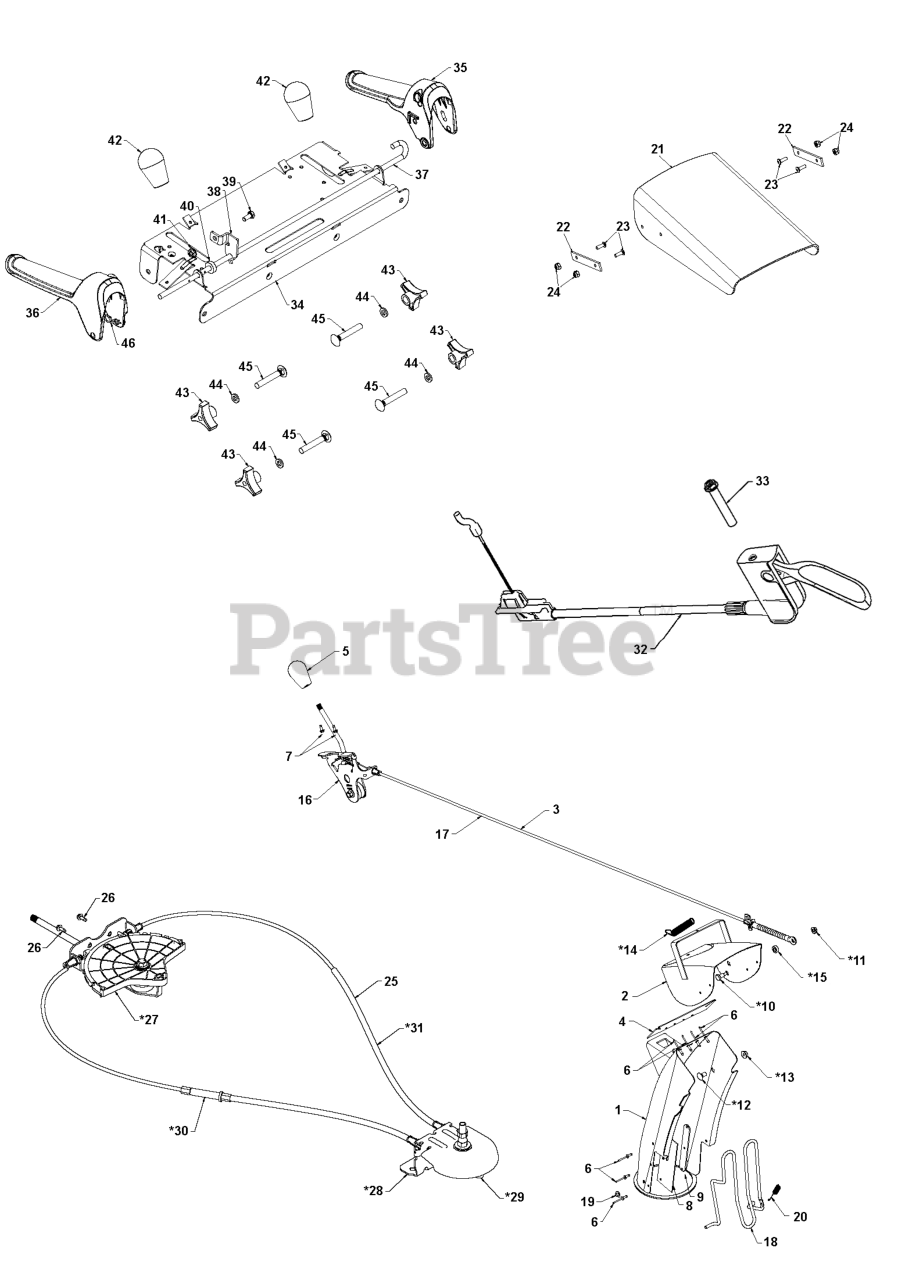

ST 327 P - Husqvarna 27" Snow Blower CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

27" Snow Blower

CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

  • Title

2

000000000

Note: For all EXCEPT 96191008500, 96193009401, DEFLECTOR

$

$

Not available

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 532128415

RIVET BLIND

Note: For 96191008500, 96193009401

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

Note: For 96191008500, 96193009401

$120.99

$

In Stock, only 2 left!

0

45

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: For 96193009401, 96193009402, 96193009403, 96193009404

$7.99

$

In Stock, Qty 13

0

8

000000000

Note: For all EXCEPT 96191008500, 96193009401, SHIELD

$

$

Not available

9

Husqvarna 532421728

STRAP.SHEILD.RETAINER

Note: For 96191008500, 96193009401

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874780410

BOLT
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP

$7.99

$

In Stock, Qty 13

0

4

000000000

Note: For 96193009402, 96193009403, 96193009404

$

$

Not available

6

000000000

Note: For all EXCEPT 96191008500, 96193009401

$

$

Not available

*10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: For 96193009403, 96193009404

$5.99

$

In Stock, Qty 8

0

*10

Husqvarna 532179829

BOLT, SHOULDER

Note: For 96193009401, 96193009402

$6.49

$

In Stock, Qty 11

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: For 96193009402, 96193009403, 96193009404

$120.99

$

In Stock, only 2 left!

0

1

Husqvarna 532444041

CHUTE.WELDMENT.SNOW.ORANGE
(Superseded to 588077802)

Note: For 96191008500, 96193009401

$120.99

$

In Stock, only 2 left!

0

35

Husqvarna 581779801

LEVER.CONTROL.LH.PL.BLACK

Note: LH

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532421613

SPACER.CONTROL.LEVER

$4.99

$

In Stock, only 1 left!

0

*10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: For 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP

$5.99

$

In Stock, Qty 8

0

42

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$22.99

$

In Stock, only 2 left!

0

*28

Husqvarna 585199201

BRACKET.ROTATOR.HEAD

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$13.99

$

Usually ships in 3-10 days

0

36

Husqvarna 581779701

LEVER.CONTROL.RH.PL.BLACK

Note: RH

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532423247

DEFLECTOR SHIELD STRAP
(Superseded to 532435831)

Note: RH

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532430324

SHIELD.SNOW.CHUTE

Note: For 96191008500, 96193009401

$20.99

$

In Stock, only 4 left!

0

23

Husqvarna 586118001

SCREW.MACHINE.8-32 X 1/2-BLK

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 587030901

RP CABLE.DEFLECTOR.BOWDEN

Note: For 96191008500, 96193009401, SERVICE PART

$80.99

$

In Stock, only 2 left!

0

4

Husqvarna 532420325

SEAL.DEFLECTOR

Note: For 96191008500, 96193009401

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: For 96191008501, 96191008502, 96191008503, INCLUDES KEY NUMBERS 1,2,4,6,8,9

$120.99

$

In Stock, only 2 left!

0

16

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$80.99

$

In Stock, Qty 5

0

*13

Husqvarna 532751153

NUT.LOCK.5/16-18

Note: For 96191008500, 96191008501, * ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 532425799

CABLE.ASM.HYDROII.BLK/BLK

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$22.99

$

In Stock, only 2 left!

0

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$80.99

$

In Stock, Qty 5

0

*27

Husqvarna 532420678

CHUTE.ROT.HEAD.SERVICE

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$205.99

$

In Stock, only 1 left!

0

*15

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

Note: For all EXCEPT 96191008500, 96193009401, 96191008501, 96193009402

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 585004703

BRACKET.ARM.IMPELLER.ROD.YZ

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532435616

SPRING.CHUTE.GUARD

Note: For 96191008500, 96191008501, 96191008502, 96191008503

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874041024

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 585198802

PANEL.CONTROL.SNOW.BLACK
(Superseded to 532415539)

$27.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

Note: For 96191008500, 96191008501, 96191008502, 96191008503

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 586118101

NUT.HEX.NYLOCK

$4.99

$

In Stock, only 3 left!

0

*31

Husqvarna 532428310

SNOW.CBL.ASM.SERVICE(428272)

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$40.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

19

Husqvarna 532059349

NUT
(Superseded to 582935201)

Note: For 96191008500, 96191008501, 96191008502, 96191008503

$4.99

$

Usually ships in 3-10 days

0

*13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: For 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP

$3.99

$

Usually ships in 3-10 days

0

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP

$7.49

$

In Stock, Qty 5

0

*29

Husqvarna 532420675

SNOW.PIVOT.PULLY

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$62.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532421138

SHIELD.DEFLECTOR.BLACK.SNOW

Note: LH

$53.99

$

In Stock, only 1 left!

0

4

000000000

Note: For 96191008501, 96191008502, 96191008503, SEAL

$

$

Not available

17

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

Note: For all EXCEPT 96191008500, 96193009401, SERVICE PART

$80.99

$

In Stock, Qty 5

0

37

Husqvarna 584809001

BAIL.CONTROL.INTERLOCK.SNOW

$13.99

$

Usually ships in 3-10 days

0

*10

Husqvarna 532179829

BOLT, SHOULDER

Note: For 96191008500, 96191008501, * ITEM PROVIDED IN THE BOP

$6.49

$

In Stock, Qty 11

0

25

Husqvarna 532428272

LEVER/CABLE.ASM.ROTATOR

$182.99

$

In Stock, only 1 left!

0

9

000000000

Note: For all EXCEPT 96191008500, 96193009401, STRAP

$

$

Not available

*13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: For 96193009403, 96193009404

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532088349

NUT

$7.49

$

In Stock, only 1 left!

0

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: For 96193009401, 96193009402, 96193009403, 96193009404

$7.49

$

In Stock, Qty 5

0

*13

Husqvarna 532751153

NUT.LOCK.5/16-18

Note: For 96193009401, 96193009402

$4.99

$

In Stock, only 1 left!

0

*30

Husqvarna 532428273

SNOW.CBL.ASM.ADJ.SERVICE(74)

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$47.99

$

Usually ships in 3-10 days

0

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: For 96193009401, 96193009402, 96193009403, 96193009404

$4.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0
