ST 327 P - Husqvarna 27" Snow Blower AUGER HOUSING & IMPELLER Parts Diagram

27" Snow Blower

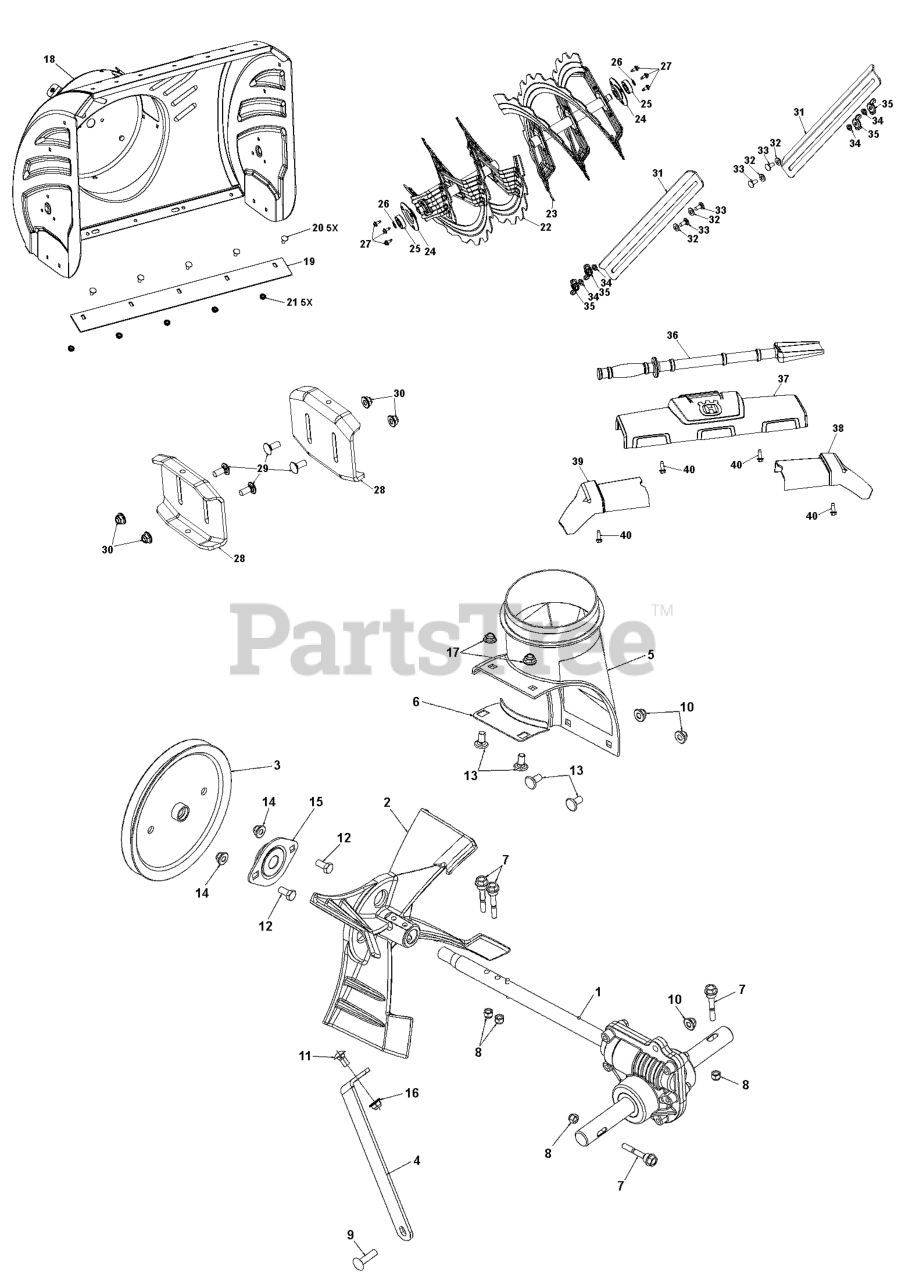

AUGER HOUSING & IMPELLER Parts Diagram

  • Title

22

Husqvarna 581970303

AUGER.RIB.27.RH.LS.GREY

Note: For 96193009203, 96193009204, 96191008303, LH

$182.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532437622

BEARING.BALL.MANDREL
(Superseded to 532110485)

$13.99

$

In Stock, Qty 10

0

10

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

Note: For all EXCEPT 96193009201, 96191008300, 96193009202

$6.99

$

In Stock, Qty 7

0

40

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 532751153

NUT.LOCK.5/16-18

Note: For 96193009201, 96191008300, 96193009202

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 586330302

TRIM AUGER.HOUSING.WING.RH MS

$28.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

20

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 581970403

AUGER.RIB.27.LH.LS.GREY

Note: For 96191008303, LH

$182.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 3 left!

0

2

Husqvarna 585198303

IMPELLER CAST.IRON.12IN MS 417

$157.99

$

In Stock, only 1 left!

0

5

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$11.99

$

In Stock, Qty 6

0

16

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

Note: For all EXCEPT 96193009201, 96191008300, 96193009202

$6.99

$

In Stock, Qty 7

0

9

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 585048402

PLATE.SHAVE.27.LS.SNOW.BLACK

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

Note: For 96193009201, 96191008300, 96193009202

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 7

0

14

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

Note: For all EXCEPT 96191008300

$6.99

$

In Stock, Qty 7

0

35

Husqvarna 532128638

NUT WING PM

$7.49

$

In Stock, Qty 8

0

13

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 532184747

DRIFT CUTTER BAR
(Superseded to 532435832)

$22.99

$

Usually ships in 3-10 days

0

22

Husqvarna 581970303

AUGER.RIB.27.RH.LS.GREY

Note: For 96191008303, RH

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585109004

SUPPORT.GEARBOX.LS.498

$7.99

$

In Stock, only 1 left!

0

1

Husqvarna 586715001

GEAR BOX ASM CAST
(Superseded to 597371601)

$338.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 6

0

17

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, Qty 7

0

3

Husqvarna 586715401

PULLEY SCREW ON 7.9

$34.99

$

In Stock, only 1 left!

0

33

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 586414801

TRIM AUGER.HOUSING.FRONT.ASM

$96.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 586330402

TRIM AUGER.HOUSING.WING.LH MS

$28.99

$

In Stock, only 1 left!

0

22

Husqvarna 581970302

AUGER.RIB.27.RH.LS.479
(Superseded to 581970303)

Note: For 96193009203, 96193009204, LH

$182.99

$

Usually ships in 3-10 days

0

24

Husqvarna 580855501

SUPPORT.BEARING.SINGLE.STAGE.B

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 585691701

BOLT CARR BLK 5_16-18 X .750

Note: For all EXCEPT 96191008300

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 581970402

AUGER.RIB.27.LH.LS.479

Note: For 96193009203, 96193009204, RH

$133.99

$

Usually ships in 3-10 days

0

18

Husqvarna 581708377

KIT.AUGER.HOUSING.581976802

$

$

Not available

23

Husqvarna 581970403

AUGER.RIB.27.LH.LS.GREY

Note: For 96193009203, 96193009204, 96191008303, RH

$182.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532407834

SKID PLATE

Note: For all EXCEPT 96191008300

$20.99

$

In Stock, only 2 left!

0
