ST 327 - Husqvarna 27" Snow Blower "CHASSIS, ENGINE & PULLEYS" Parts Diagram

27" Snow Blower

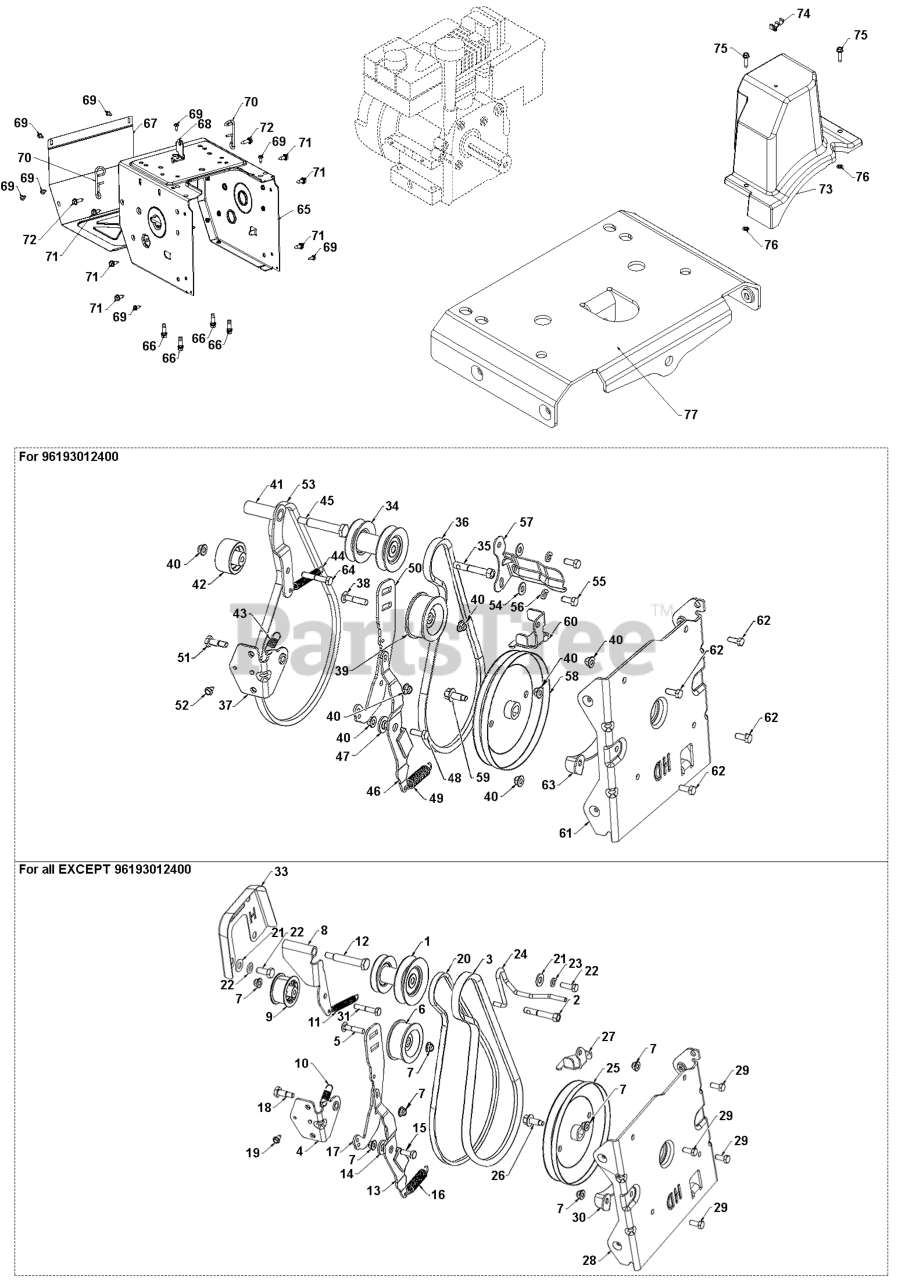

"CHASSIS, ENGINE & PULLEYS" Parts Diagram

  • Title

4

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

45

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

52

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

32

Husqvarna 874610516

SCREW

Note: For 97046940100, 97046950100

$4.99

$

In Stock, only 4 left!

0

34

Husqvarna 589262201

PULLEY WELDMENT

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593192502

ARM DRIVE IDLER CLEAR ZINC PLA

$11.99

$

In Stock, only 1 left!

0

7

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For all EXCEPT 96193012700, 96193012400

$6.99

$

In Stock, Qty 20+

0

Husqvarna 585742704

ENGINE.LCT.369CC.SNO.16
(Superseded to 585742702)

Note: For 96193012700, LCT - PW2HK18850178Y

$1595.99

$

Usually ships in 3-10 days

0

9

Husqvarna 581141402

PULLEYIDLER.2.0.W/SPACER.CZ

$11.99

$

In Stock, Qty 8

0

58

Husqvarna 589263801

PULLEY IMPELLER DD 5L HD

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 1 left!

0

24

Husqvarna 589262401

GUIDE BELT - 3L FRICTION, 5L I

Note: For 96193012700

$7.99

$

Usually ships in 3-10 days

0

67

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$56.99

$

Usually ships in 3-10 days

0

48

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

Note: For all EXCEPT 96193012700

$4.99

$

In Stock, only 1 left!

0

76

000000000

Note: PALNUT

$

$

Not available

25

Husqvarna 589263801

PULLEY IMPELLER DD 5L HD

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 1 left!

0

46

Husqvarna 579763301

ARM IMPELLER BRAKE

$31.99

$

In Stock, only 1 left!

0

56

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

54

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 582640702

BELT 3L 39.68; POLY CORD

$7.99

$

In Stock, only 1 left!

0

55

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

74

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 589262401

GUIDE BELT - 3L FRICTION, 5L I

$7.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 13

0

38

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 596959001

Engines

Note: For 97046940100, COMPLETE LCT ENGINE PWBHK18850178E

$1698.99

$

Usually ships in 3-10 days

0

50

Husqvarna 589262902

ARM IDLER BLACK ZINC

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589262602

BELT 5L 39.15L

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579763301

ARM IMPELLER BRAKE

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

Note: For all EXCEPT 96193012700

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 589262902

ARM IDLER BLACK ZINC

$11.99

$

Usually ships in 3-10 days

0

19

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: For 96193012700

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

Note: For 96193012700

$6.99

$

In Stock, Qty 20+

0

69

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

73

Husqvarna 587105501

COVER BELT ASM HIGH CRANK
(Superseded to 585771101)

$31.99

$

In Stock, only 1 left!

0

61

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$56.99

$

Usually ships in 3-10 days

0

35

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

64

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 598712002

Gutter

Note: For 97046940100, 97046950100

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

$6.99

$

Usually ships in 3-10 days

0

63

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

49

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$56.99

$

Usually ships in 3-10 days

0

26

Husqvarna 583814901

SCREW FLANGE HEAD CAP WITH DOG
(Superseded to 595517901)

Note: For 96193012700

$4.99

$

In Stock, only 1 left!

0

60

Husqvarna 589262505

GUIDE BZP

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 596959002

ENGINES

Note: For 97046950100, COMPLETE LCT ENGINE PWBHK18850178Y

$2062.99

$

Usually ships in 3-10 days

0

41

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 589262505

GUIDE BZP

$6.99

$

Usually ships in 3-10 days

0

68

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 597207601

GUIDE.BELT.5L.IMPELLER.3L.DRV

Note: For all EXCEPT 96193012700

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

Note: For 96193012700

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 589262701

PULLEY IDLER

$

$

Not available

66

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

75

000000000

Note: BOLT

$

$

Not available

65

Husqvarna 589264705

FRAME MS 668

$113.99

$

Usually ships in 3-10 days

0

77

Husqvarna 585546002

BRACKET.FRAME.SUP.LARGEENG.BLA

$51.99

$

Usually ships in 3-10 days

0

72

Husqvarna 585217501

SCREW HEX_SERR_HD_5_16-18X1.0
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 583814901

SCREW FLANGE HEAD CAP WITH DOG
(Superseded to 595517901)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

Husqvarna 580426108

ENGINE.LCT.291CC.ST FORCE.SNO

Note: For 96193012701, LCT - PW2HK18850178Y

$1941.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 582640702

BELT 3L 39.68; POLY CORD

$7.99

$

In Stock, only 1 left!

0

16

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

Note: For all EXCEPT 96193012700

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

In Stock, only 4 left!

0

36

Husqvarna 589262602

BELT 5L 39.15L

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589262201

PULLEY WELDMENT

$28.99

$

Usually ships in 3-10 days

0

Husqvarna 580426107

ENGINE.LCT.291CC.SNO.16

Note: For 96193012400, 96193012401, LCT - PW2HK18850178E

$1152.99

$

Usually ships in 3-10 days

0

15

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

70

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

6

Husqvarna 589262702

Pulleys

$12.99

$

Usually ships in 3-10 days

0
