ST 327 (961930127-01) - Husqvarna 27" Snow Blower (2019-04) "CHASSIS, ENGINE & PULLEYS" Parts Diagram

27" Snow Blower

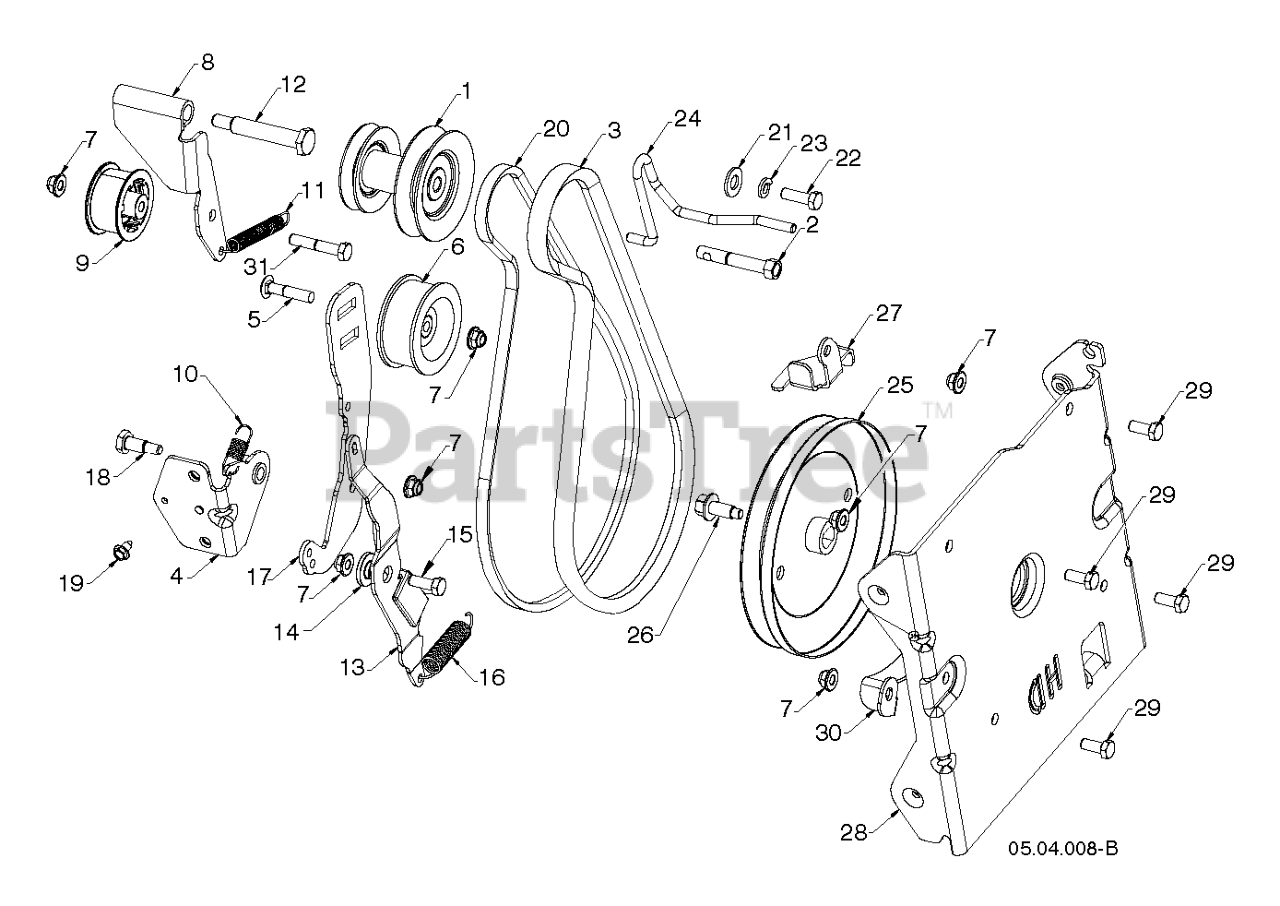

"CHASSIS, ENGINE & PULLEYS" Parts Diagram

  • Title
31

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 18

0

3

Husqvarna 589262602

BELT 5L 39.15L

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579763301

ARM IMPELLER BRAKE

$31.99

$

In Stock, only 1 left!

0

20

Husqvarna 582640702

BELT 3L 39.68; POLY CORD

$7.99

$

In Stock, only 2 left!

0

1

Husqvarna 589262201

PULLEY WELDMENT

$28.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 5

0

29

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 581141402

PULLEYIDLER.2.0.W/SPACER.CZ

$11.99

$

In Stock, Qty 10

0

12

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

$12.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 589263801

PULLEY IMPELLER DD 5L HD

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 593192502

ARM DRIVE IDLER CLEAR ZINC PLA

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 589262902

ARM IDLER BLACK ZINC

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 597207601

GUIDE.BELT.5L.IMPELLER.3L.DRV

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$56.99

$

Usually ships in 3-10 days

0

27

$6.99

$

Usually ships in 3-10 days

0
