ST 324 P - Husqvarna 24" Snow Blower HANDLE & CONTROLS Parts Diagram

24" Snow Blower

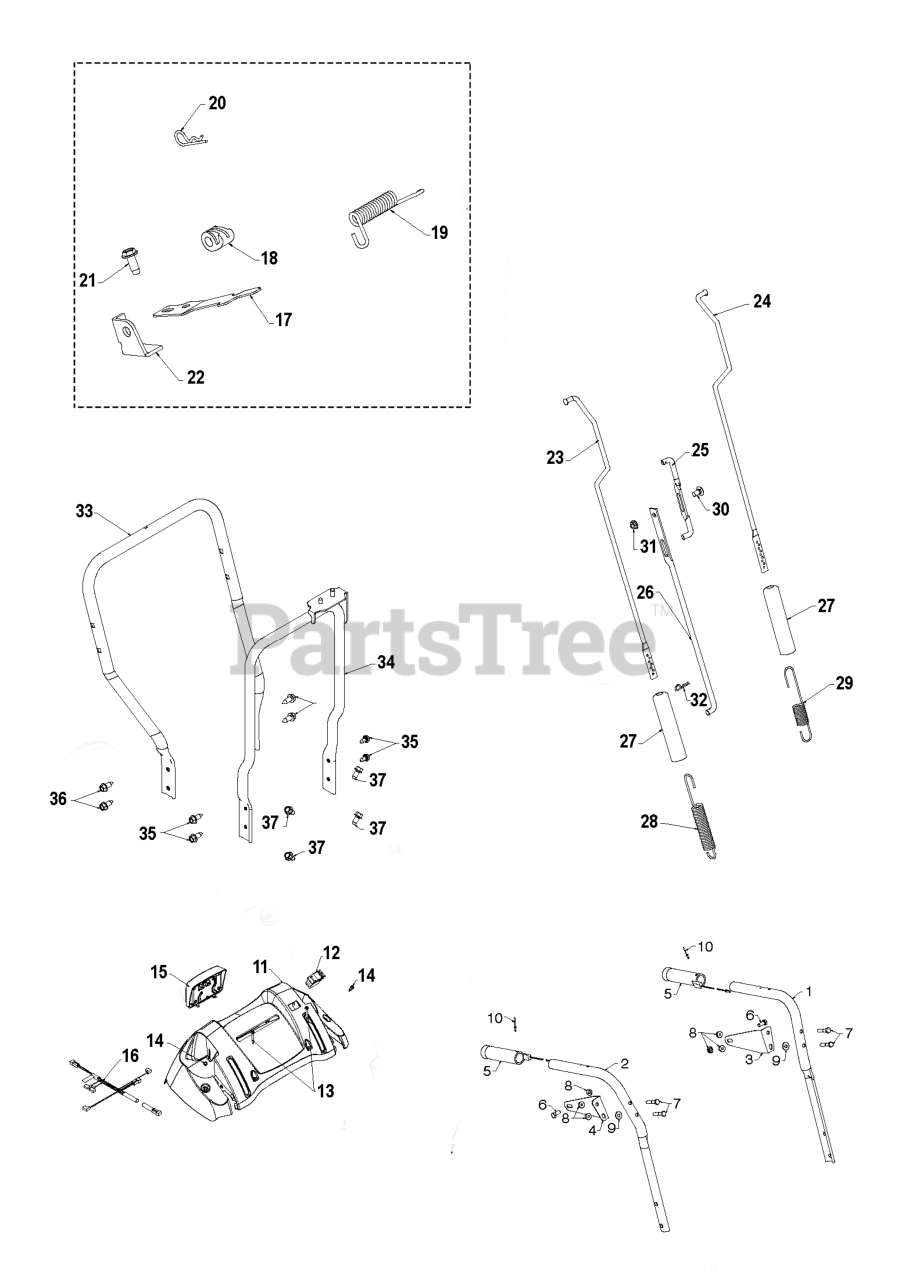

HANDLE & CONTROLS Parts Diagram

  • Title

37

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 580802101

SPRING.TRACTION.ROD.SNOW

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 585238103

HANDLE.LOWER.CHAIN.SNOW.GREY

$

$

Not available

23

Husqvarna 584808701

ROD.IMPELLER

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 584808801

ROD.TRACTION

$13.99

$

In Stock, only 1 left!

0

4

Husqvarna 532429149

BRACKET.PANEL.RH.

Note: RH

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 532443215

SPRING.TORSION.LEVER

$6.49

$

In Stock, only 1 left!

0

1

Husqvarna 532421708

TUBE.HANDLE.PLOW.LH.GREY

Note: LH

$

$

Not available

27

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 532414515

GRIP.HANDLE.HEATED

$91.99

$

In Stock, only 1 left!

0

2

Husqvarna 532421709

TUBE.HANDLE.PLOW.RH.GREY

Note: RH

$39.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532425598

ROD.SHIFTER.TOP.HYD

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532429148

BRACKET.PANEL.LH.

Note: LH

$

$

Not available

36

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

7

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

20

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 581684201

HEADLIGHT.LED.DUAL STAGE.GREY

$46.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532178775

RIVET.POP.1/8X

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532187784

ROD, LOWER, SPEED CONTROL

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 532417760

SWITCH.HEATED.GRIP

$43.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532443617

SUPPORT.WELDMENT.ROTATOR.BLACK

$

$

Not available

22

Husqvarna 532421814

STOP.INTERTLOCK
(Superseded to 532421252)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 3 left!

0

13

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

28

Husqvarna 580796201

SPRING.CONTROL.ROD.SNOW

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532416288

SPRING.INTERLOCK
(Superseded to 532412675)

$

$

Not available

18

Husqvarna 532445291

CAM.INTERLOCK.RELEASE

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 580625601

HARNESS.WIRE.FLOOD/LED.HEAT.

$51.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532421351

PANEL.CONSOLE.

$79.99

$

Usually ships in 3-10 days

0
