ST 324 P - Husqvarna 24" Snow Blower AUGER HOUSING & IMPELLER Parts Diagram

24" Snow Blower

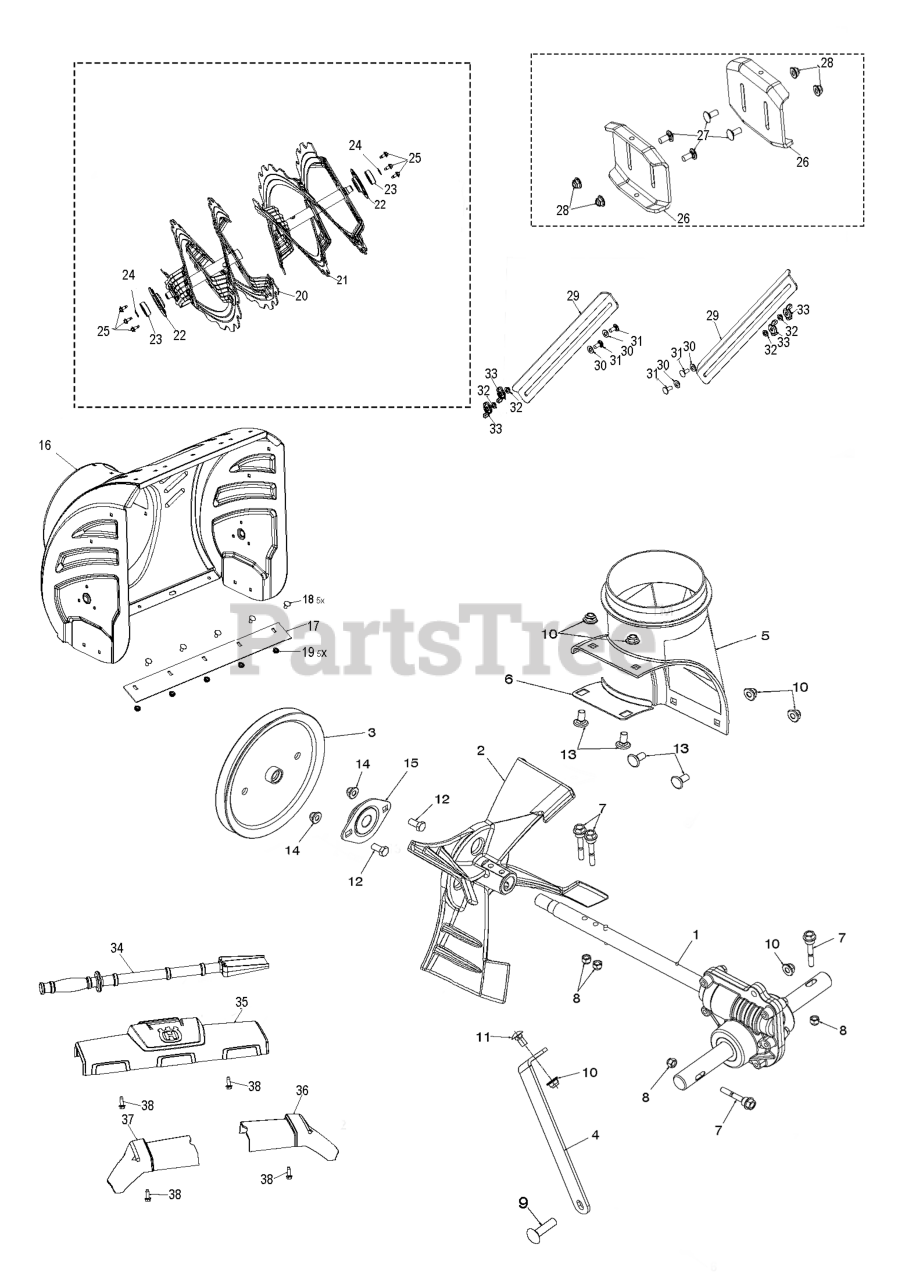

AUGER HOUSING & IMPELLER Parts Diagram

  • Title

26

Husqvarna 532407834

SKID PLATE

$20.99

$

In Stock, only 3 left!

0

38

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532128638

NUT WING PM

$7.49

$

In Stock, Qty 8

0

9

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 585198303

IMPELLER CAST.IRON.12IN MS 417

$157.99

$

In Stock, only 1 left!

0

5

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$11.99

$

In Stock, only 3 left!

0

17

Husqvarna 585048302

PLATE.SHAVE.24.LS.SNOW.BLACK

$22.99

$

Usually ships in 3-10 days

0

28

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 581970202

AUGER.RIBBON.24.LH.LS.479

Note: For 96193009103

$102.99

$

Usually ships in 3-10 days

0

37

Husqvarna 586330402

TRIM AUGER.HOUSING.WING.LH MS

$28.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532184747

DRIFT CUTTER BAR
(Superseded to 532435832)

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 581708367

KIT.AUGR.HSG.581976702(24LS668

$

$

Not available

22

Husqvarna 580855501

SUPPORT.BEARING.SINGLE.STAGE.B

$8.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 1 left!

0

30

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 12

0

35

Husqvarna 586414801

TRIM AUGER.HOUSING.FRONT.ASM

$96.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585109004

SUPPORT.GEARBOX.LS.498

$7.99

$

In Stock, only 1 left!

0

15

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0

3

Husqvarna 586715401

PULLEY SCREW ON 7.9

$34.99

$

In Stock, only 1 left!

0

24

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

20

Husqvarna 581970102

AUGER.RIBBON.24.RH.LS.479

Note: For 96193009103

$102.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 581970103

AUGER.RIB.24.RH.LS.GREY

Note: For 96193009104, 96191008202, 96193009102, 96191008201

$170.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581970203

AUGER.RIB.24.LH.LS.GREY

Note: For 96193009104, 96191008202, 96193009102, 96191008201

$169.99

$

Usually ships in 3-10 days

0

13

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$7.49

$

In Stock, Qty 5

0

23

Husqvarna 532437622

BEARING.BALL.MANDREL
(Superseded to 532110485)

Note: For 96193009104, 96193009103, 96191008202, 96191008201

$13.99

$

In Stock, Qty 5

0

6

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 9

0

19

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 585691701

BOLT CARR BLK 5_16-18 X .750

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0

7

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 586330302

TRIM AUGER.HOUSING.WING.RH MS

$28.99

$

In Stock, only 1 left!

0

23

Husqvarna 532110485

BEARING

Note: For 96193009102

$13.99

$

In Stock, Qty 5

0

32

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

1

Husqvarna 586715001

GEAR BOX ASM CAST
(Superseded to 597371601)

$338.99

$

Usually ships in 3-10 days

0
