ST 324 P (961930091-04) - Husqvarna 24" Snow Blower (2017-03) CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

24" Snow Blower

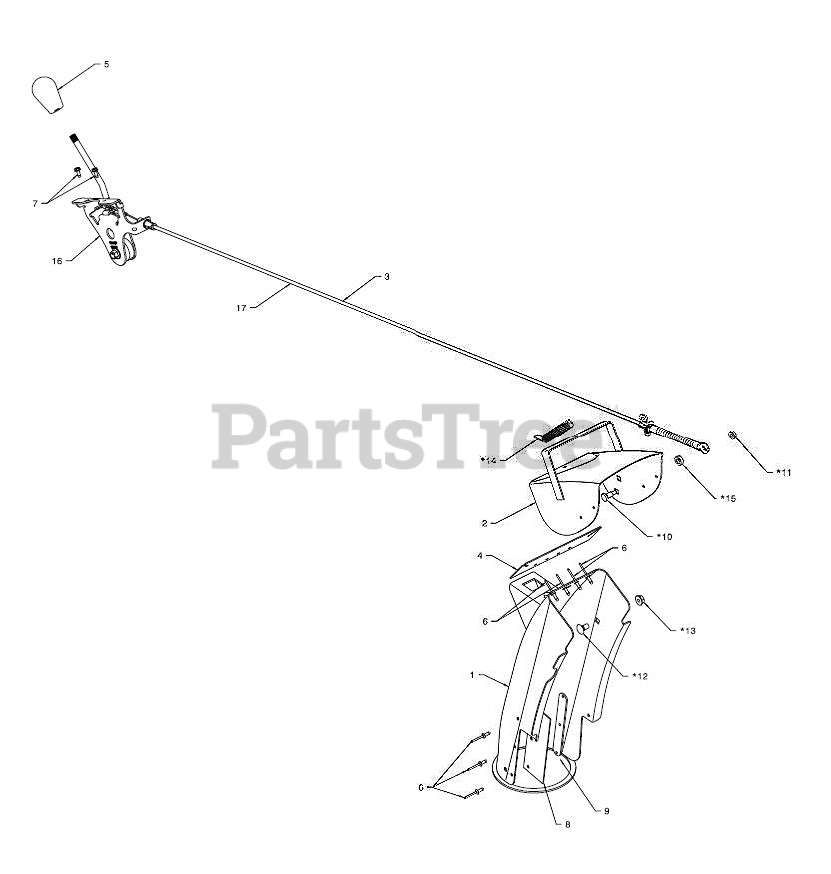

CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

  • Title

17

Husqvarna 587030901

RP CABLE.DEFLECTOR.BOWDEN

Note: SERVICE PART

$80.99

$

In Stock, only 2 left!

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 8

0

16

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$80.99

$

In Stock, only 2 left!

0

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$80.99

$

In Stock, only 2 left!

0

2

000000000

Note: DEFLECTOR

$

$

Not available

*15

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$4.99

$

In Stock, only 4 left!

0

*13

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

$120.99

$

In Stock, only 1 left!

0

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

000000000

Note: SHIELD

$

$

Not available

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

*10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$5.99

$

In Stock, Qty 7

0

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$22.99

$

In Stock, only 1 left!

0

9

000000000

Note: STRAP

$

$

Not available

4

000000000

Note: SEAL

$

$

Not available

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

6

000000000

Note: POP RIVET

$

$

Not available
