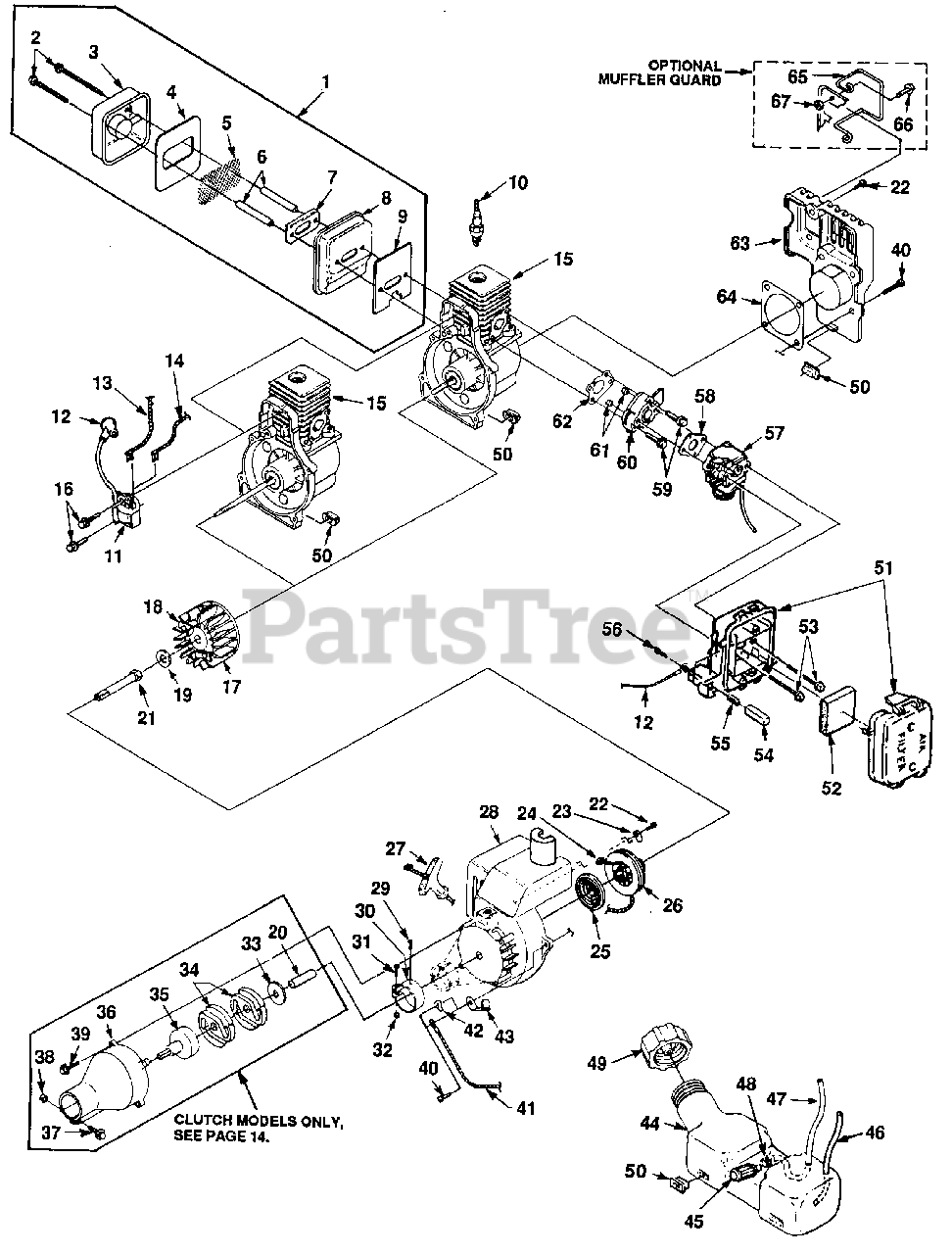

ST 275 (UT-20594-2A) - Homelite String Trimmer Engine Peripherals Parts Diagram

String Trimmer

Engine Peripherals Parts Diagram

  • Title
1

Homelite A01123

MUFFLER- Complete
(Superseded to A04837)

$

$

Not available

2

Homelite 88060

SCREW- Sems Hex Hd (10-24 X 2 1/2")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite A98780

COVER- Muffler
(Superseded to A04786)

$

$

Not available

4

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

6

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

7

Homelite 98783

PLATE- Reinforcing

$

$

Not available

8

Homelite A01323

BODY- Muffler
(Superseded to A04837)

$

$

Not available

9

Homelite 98786B

GASKET- Muffler

$

$

Currently unavailable

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

$

$

Not available

10

Homelite 96169S

SPARK PLUG (DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

11

Homelite 94711CS

MODULE- Ignition

$

$

Not available

12

Homelite A33055

TERMINAL- High-Tension

$

$

Not available

13

Homelite A00681

LEAD-Electrical (ST-185BC, GST-BC, ST-285BC, ST-385BC, HBC-18, HBC-30)

$

$

Not available

14

Homelite A98809

LEAD-Electrical (ST-155,SX-135,ST-175G,HLT-15,ST-275,GST,HGT,HLT-16
(Superseded to A07238)

$

$

Not available

15

SHORT BLOCK

Note: See Short Block diagram for correct Short Block.

$

$

Not available

16

Homelite 82540

SCREW- Taptite (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

17

Homelite A00856

ROTOR KIT (ST-185BC, GST-BC
(Superseded to UP03856)

$

$

Not available

18

Homelite A70285E

KIT- Starter Pawl

$101.99

$

Usually ships in 3-7 days

0

19

Homelite 95479A

WASHER- Flat

$

$

Not available

20

Homelite 035662

SPACER
(Superseded to UP04118)

$

$

Not available

17

Homelite A00857

ROTOR KIT (ST-285BC, ST-385BC, HBC-18, HBC-30)
(Superseded to UP03856)

$

$

Not available

18

Homelite A70285E

KIT- Starter Pawl

$101.99

$

Usually ships in 3-7 days

0

19

Homelite 95479A

WASHER- Flat

$

$

Not available

20

Homelite 035661

SPACER
(Superseded to PS035661)

$5.49

$

Usually ships in 3-7 days

0

17

Homelite A04158

ROTOR KIT (ST-155, SX-135,ST-175G,HLT-15,ST-275,GST,HGT,HLT-16,HLT-1
(Superseded to UP03856)

$

$

Not available

18

Homelite A70285E

KIT- Starter Pawl

$101.99

$

Usually ships in 3-7 days

0

19

Homelite 84065

WASHER- Flat (5/16") (ST-155,SX-135,ST-175G,HLT-15,ST-275,HLT-18,HLT-1
(Superseded to UP04241)

$

$

Not available

21

Homelite 98795A

CONNECTOR- Drive (ST-155,SX-135,ST-175G,HLT-15,ST-275,GST,HGT,HLT-16

$

$

Not available

Homelite A01083A

COMPLETE STARTER ASSEMBLY
(Superseded to A02575E)

$

$

Not available

22

Homelite 82541

SCREW- Plastite (#10 X 1/2")

$1.99

$

In Stock, only 3 left!

0

23

Homelite 98791

BRACKET- Retaining

$

$

Not available

24

Homelite 9789902

ROPE- Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

26

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 02264

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

28

Homelite A02575C

HOUSING- Engine (ST 155,SX-135,ST-175G,HLT-15,ST-275,GST,HGT,HLT-16)
(Superseded to A02575E)

$

$

Not available

28

Homelite A02576C

HOUSING-Engine (ST-185BC,GST-BC,ST-285BC,ST-385BC,HBC-18,HBC-30)
(Superseded to A06982)

$

$

Not available

29

Homelite 82522

SCREW- Pan Hd. (#10 X 3/8")
(Superseded to 82455)

$

$

Not available

30

Homelite 98802A

CLAMP
(Superseded to UP04704)

$

$

Not available

31

Homelite 82268

SCREW- Hex Sems (10-24 X 3/8")

$

$

Not available

32

Homelite 97574

NUT- Square

$

$

Not available

33

Homelite 98929A

WASHER- Clutch (ST-185BC, GST-BC, ST-285BC, ST-385BC, HBC-18, HBC-30)
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

34

Homelite 00242

CLUTCH (ST-185BC, GST-BC) (ST-285BC, ST-385BC, HBC-18, HBC-30)

$

$

Not available

35

Homelite A02727

CONNECTOR & DRUM (ST-185BC, GST-BC)
(Superseded to UP04104)

$

$

Not available

Homelite A03485A

CONNECTOR & DRUM (ST-285BC, ST-385BC, HBC-18, HBC-30)
(Superseded to UP04133)

$41.99

$

Usually ships in 3-7 days

0

36

Homelite A02396A

TUBE ADAPTOR (ST-185BC, GST-BC, ST-285BC, ST-385BC, HBC-18, HBC-30)

$

$

Currently unavailable

37

Homelite 88054

SCREW- Sems Hex Hd (10 24 X 1 1/4")
(Superseded to UP04267)

$

$

Not available

38

Homelite 81208

NUT (10-24)

$

$

Not available

39

Homelite 88052

SCREW- Sems Hex Hd (10-24 X 7/8")

$4.99

$

Usually ships in 3-7 days

0

40

Homelite 82538

SCREW- Taptite (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

41

Homelite A98919A

LEAD- Ground
(Superseded to UP04274)

$

$

Not available

42

Homelite 02851

TERMINAL

$

$

Not available

43

Homelite A98808

BRACKET Cable

$

$

Currently unavailable

44

Homelite A04447

TANK- Fuel
(Superseded to UP00136)

$

$

Not available

45

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

46

Homelite 0143932

TUBING- Rubber (8")
(Superseded to UP03825)

$

$

Not available

47

Homelite 9477232

TUBING- Rubber (8")
(Superseded to UP03905)

$

$

Not available

48

Homelite 98268

CLAMP- Wire
(Superseded to 690765001)

$1.99

$

In Stock, Qty 6

0

49

Homelite A00982A

FUEL CAP

$

$

Currently unavailable

50

Homelite 98792

BUMPER- Rubber

$

$

Not available

51

Homelite A04449

AIR FILTER BOX
(Superseded to A04707A)

$

$

Not available

52

Homelite D98760A

FILTER- Air

$

$

Currently unavailable

53

Homelite 82542

SCREW (10-24 X 2 1/4")

$4.99

$

Usually ships in 3-7 days

0

54

Homelite 98769

BUTTON- Switch

$4.99

$

Usually ships in 3-7 days

0

55

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 93923

SCREW- Plastite (#6)
(Superseded to 82513)

$2.49

$

In Stock, Qty 5

0

57

Homelite A04445

CARBURETOR KIT
(Superseded to A04445A)

$

$

Not available

58

Homelite 98766A

GASKET Carburetor
(Superseded to 900994004)

$

$

Not available

59

Homelite 825491

SCREW- Taptite (10-24 X 1")
(Superseded to UP05542)

$

$

Not available

60

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

61

Homelite 81208

NUT (10-24)

$

$

Not available

62

Homelite 98765B

GASKET- Heat Dam

$4.99

$

Usually ships in 3-7 days

0

63

Homelite A00858

CRANKCASE COVER

$14.99

$

Usually ships in 3-7 days

0

64

Homelite 98767A

GASKET- Crankcase Cover

$

$

Not available

65

Homelite A00254

WIRE GUARD KIT
(Superseded to A00254A)

$

$

Not available

66

Homelite 88049

SCREW- Hex Sems (10-24 X 1/2")

$

$

Not available

67

Homelite 81208

NUT (10-24)

$

$

Not available
