ST 261 E (961910030-02) - Husqvarna 24" Snow Blower (2011-05) DRIVE Parts Diagram

24" Snow Blower

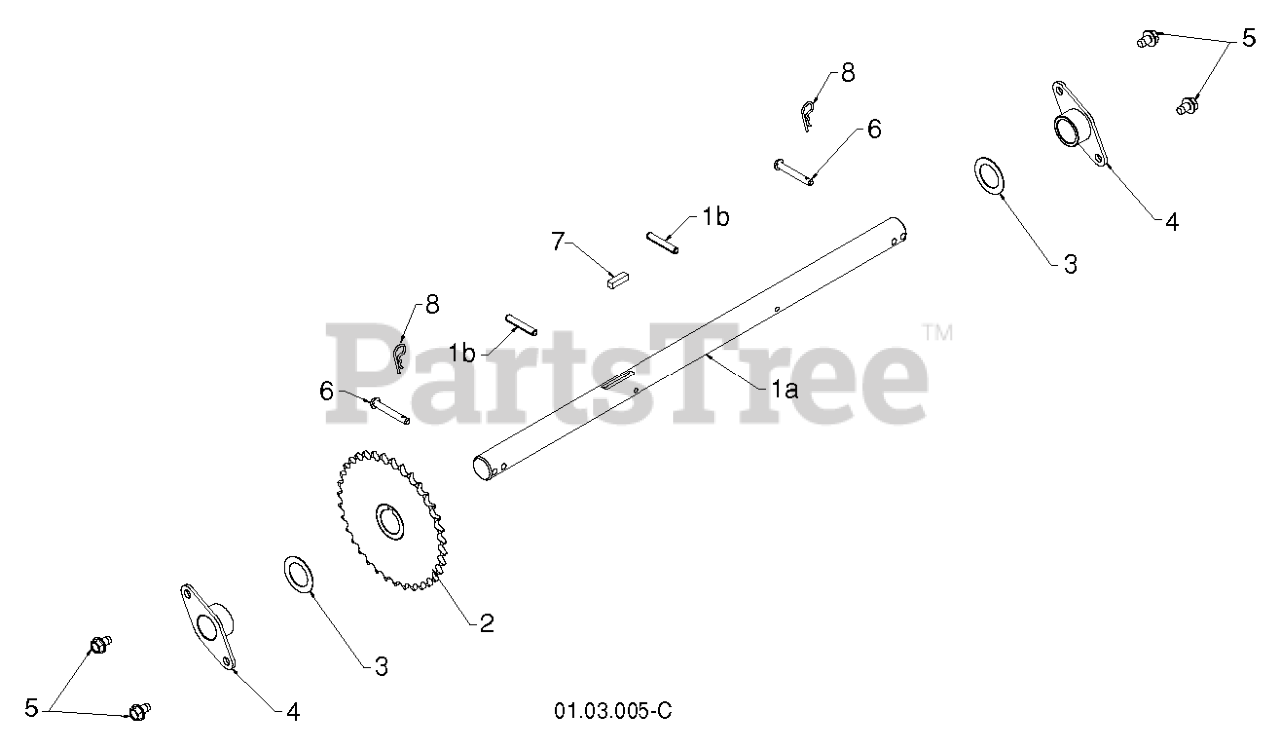

DRIVE Parts Diagram

  • Title

5

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

7

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 532402691

SPROCKET.WELDMENT.AXLE.1.00

$60.99

$

Usually ships in 3-10 days

0

1a

Husqvarna 532179352

SHAFT.AXLE.16".SNOW

$60.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532188226

AXLE.SHAFT.ASM.W/ROLPIN.NON-PS

Note: "assy of 1a,1b"

$85.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 20+

0

1b

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0
