ST 261 E (961910030-01) - Husqvarna 24" Snow Blower (2009-08) DRIVE 2 Parts Diagram

24" Snow Blower

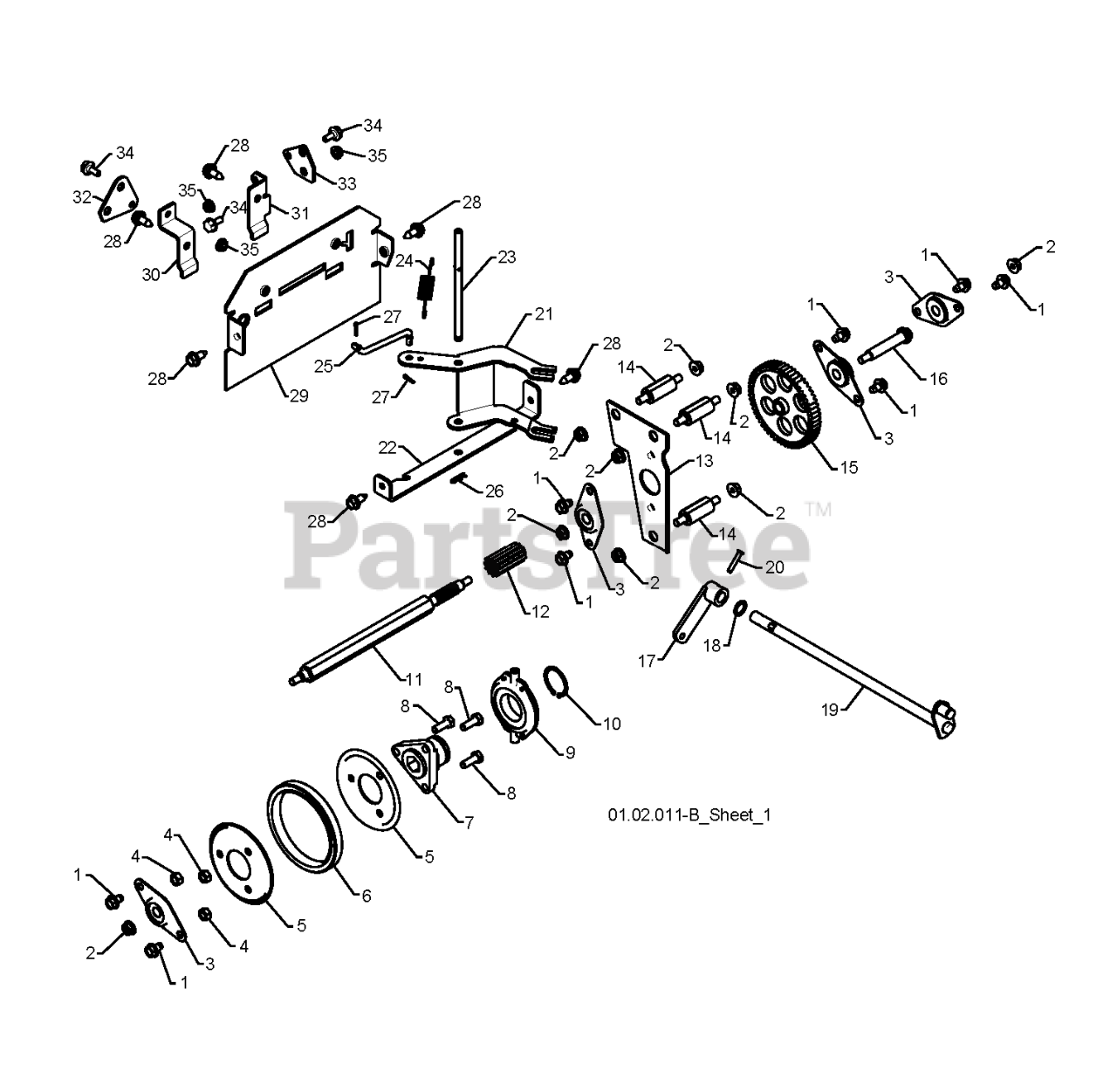

DRIVE 2 Parts Diagram

  • Title
17

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

9

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

3

Husqvarna 532180017

BEARING, FLANGE

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

15

Husqvarna 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

13

Husqvarna 532435790

PLATE.AUXILIARY.
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532435799

LATE.CLUTCH.
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

16

Husqvarna 532180134

SHAFT, AUXILIARY

$

$

Not available

29

Husqvarna 532416921

PLATE.REAR.SNOW.PNT.ORANGE

$

$

Not available

1

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$26.99

$

In Stock, only 4 left!

0

12

Husqvarna 532180065

GEAR, PINION

$

$

Not available

2

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 532179270

SPACER, PLATE

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

4

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532435792

RP SHIFTER LEVER
(Superseded to 532184080)

$

$

Not available

28

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 13

0

30

Husqvarna 532435797

RP BRACKET.SHIFTER.PLATE

$2.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532435793

BRACKET.SHIFT.PIVOT.BLACK

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532435796

BRACKET.CLUTCH.PLATE
(Superseded to 532416864)

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

5

Husqvarna 532435789

PLATE.RUBBER.WHEEL.BLACK

$

$

Not available

20

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532180066

SHAFT.HEX.LONG

$

$

Not available

34

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532435800

RP PLATE.SHIFTER.

$2.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0
