ST 2446 (2691570-00) - Snapper 46" Lawn Tractor, Hydro Drive, 24hp Frame & Hood Group Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

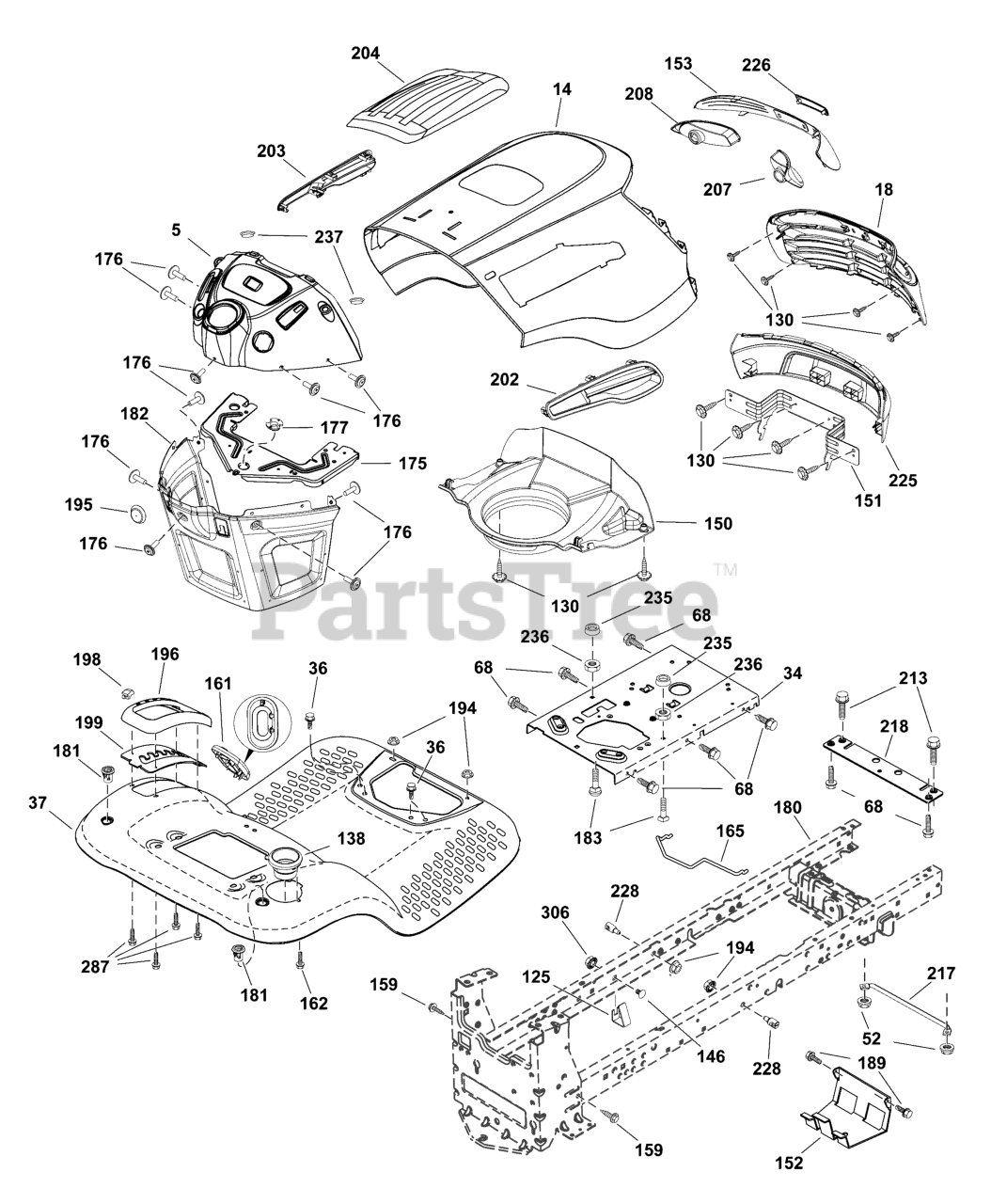

Frame & Hood Group Parts Diagram

  • Title

$148.99

$

Usually ships in 2-12 days

0

$190.99

$

Usually ships in 2-12 days

0

18

$

$

Currently unavailable

34

Snapper 705268

Plate Engine Welded Chassis

$66.99

$

Usually ships in 2-12 days

0

36

Snapper 705324

Screw 5/16-18 X 3/4 Smgml Tap/R

$5.49

$

Usually ships in 2-12 days

0

37

$540.99

$

Usually ships in 2-12 days

0

52

Snapper 705349

Nut, Hex, Crownlock 5/16-18

$9.99

$

In Stock, Qty 5

0

68

Snapper 84004011

SCREW, 5/16-18 X 1/2, Thread Roll

$8.49

$

Usually ships in 2-12 days

0

125

Snapper 705286

Clip Fuel Line

$4.99

$

Usually ships in 2-12 days

0

130

Snapper 705233

Screw #10 x 0.750 BOS Thread

$4.99

$

Usually ships in 2-12 days

0

138

Snapper 84004156

CUPHOLDER

$

$

Currently unavailable

146

$6.99

$

Usually ships in 2-12 days

0

150

Snapper 84004053

DUCT, Air

$

$

Currently unavailable

151

Snapper 705178

Bracket Pivot Lasr/Elte/Husqlt

$51.99

$

Usually ships in 2-12 days

0

152

Snapper 705129

Shield Browning/Debris

$36.99

$

Usually ships in 2-12 days

0

153

Snapper 84004054

LENS, Bar Pred

$

$

Not available

159

Snapper 705322

Screw 3/8-16 x .75 Smgml Tap/R.Z

$6.49

$

Usually ships in 2-12 days

0

161

Snapper 705257

Window Fuel

$12.99

$

In Stock, only 1 left!

0

162

Snapper 705019

Screw Hex Wsh Hi-Lo 1/4 X 1/2 Unc

$4.99

$

Usually ships in 2-12 days

0

165

Snapper 705101

Support Tank Rear

$33.99

$

Usually ships in 2-12 days

0

175

Snapper 705063

CROSSMEMBER

$48.99

$

Usually ships in 2-12 days

0

176

Snapper 705137

Screw #10-24X5/8 Rnd Qudrx Gim

$15.99

$

Usually ships in 2-12 days

0

177

Snapper 705091

Bushing Steering Yt/Gt

$12.99

$

In Stock, Qty 5

0

180

Snapper 705094

Chass Wldmt Tl 12 Ga/2Pc

$302.99

$

Usually ships in 2-12 days

0

181

Snapper 705433

Bushing Mnt Fend Crgo Blk Tex

$8.99

$

Usually ships in 2-12 days

0

182

Snapper 705060

Hex Capscrew, 5/16"-18 x 6-1/2" lg.

$176.99

$

Usually ships in 2-12 days

0

183

Snapper 705360

Bolt Full Thd 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

189

Snapper 705321

Screw 5/16-18 X 3/4 Smgml Tap/Bl
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

194

Snapper 705352

Nut, Lock Hex Flange 5/16-18 Unc

$5.99

$

Usually ships in 2-12 days

0

195

Snapper 84004068

PLUG, Lower Dash Hole

$11.99

$

Usually ships in 2-12 days

0

196

Snapper 705265

Console Asm. Deck Lift

$59.99

$

Usually ships in 2-12 days

0

198

Snapper 705260

Indicator Deck Lift

$34.99

$

Usually ships in 2-12 days

0

199

Snapper 705226

Plate Deck Lift

$18.99

$

In Stock, only 1 left!

0

202

Snapper 84004069

VENT, RH Side Hood

$64.99

$

Usually ships in 2-12 days

0

203

Snapper 84004070

VENT, LH Side Hood

$66.99

$

Usually ships in 2-12 days

0

204

Snapper 84004071

VENT, Top

$90.99

$

Usually ships in 2-12 days

0

207

Snapper 705297

Insert Lens Reflective RH

$9.99

$

Usually ships in 2-12 days

0

208

Snapper 705296

Insert Lens Reflective LH

$13.99

$

Usually ships in 2-12 days

0

213

Snapper 84005867

CAPSCREW, 5/16-18 X 3/4 GR. 5 ZD

$7.99

$

Usually ships in 2-12 days

0

217

Snapper 705180

Rod Pivot Hood

$5.99

$

Usually ships in 2-12 days

0

218

Snapper 705099

X-Piece Hood Stop Non/Stealth

$7.99

$

Usually ships in 2-12 days

0

225

Snapper 84004074

BUMPER, Snapper

$111.99

$

Usually ships in 2-12 days

0

226

Snapper 84004075

PLATE, Snapper Logo

$40.99

$

Usually ships in 2-12 days

0

228

Snapper 705088

Stud Fastner W/'D'anti-Rotatio

$12.99

$

In Stock, only 2 left!

0

235

Snapper 705173

Spacer Fender

$6.49

$

Usually ships in 2-12 days

0

236

Snapper 705355

Nut Center Lock 5/16-18 Unc

$12.99

$

In Stock, only 1 left!

0

237

Snapper 770340

Plug Mount Cargo

$6.49

$

Usually ships in 2-12 days

0

287

Snapper 705328

Screw Hex Washead 1/4-20 X 3/8

$4.99

$

Usually ships in 2-12 days

0

306

Snapper 84004161

NUT, 3/8-16, Lock

$12.99

$

In Stock, only 1 left!

0
