ST 2446 (2691570-00) - Snapper 46" Lawn Tractor, Hydro Drive, 24hp Engine Group Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

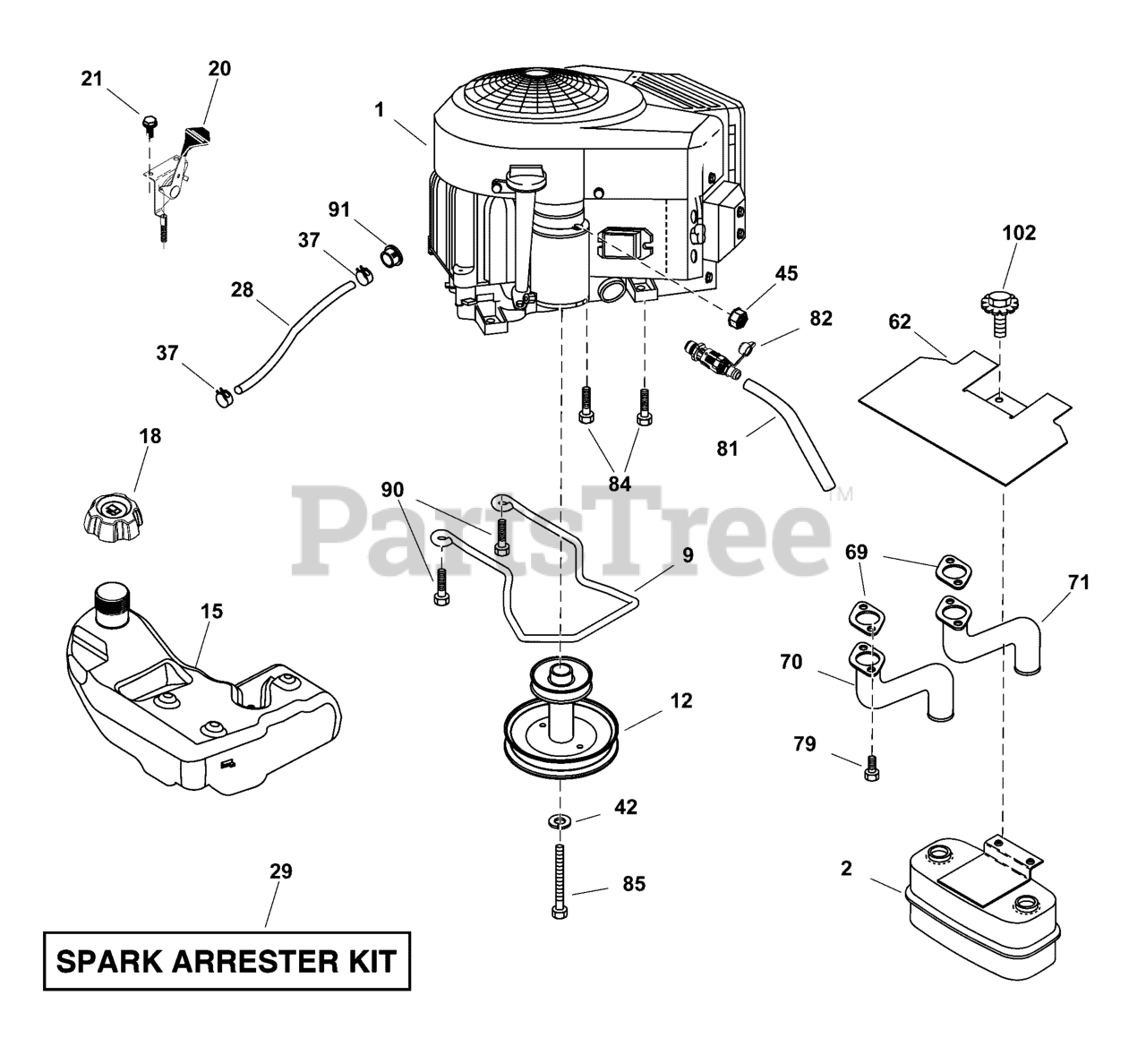

Engine Group Parts Diagram

  • Title
1

Snapper 44N877-0003-G1

Engine B&S Model No. 44N877-0003-G1

$

$

Currently unavailable

2

$107.99

$

Usually ships in 2-12 days

0

9

Snapper 84004017

KEEPER, Engine Belt

$

$

Not available

12

Snapper 84004236

PULLEY, Engine

$

$

Currently unavailable

15

Snapper 84005640

TANK, Fuel

$463.99

$

Usually ships in 2-12 days

0

18

Snapper 84004237

CAP, Fuel

$101.99

$

Usually ships in 2-12 days

0

20

Snapper 84004080

CONTROL, Throttle/Choke

$84.99

$

Usually ships in 2-12 days

0

21

Snapper 705233

Screw #10 x 0.750 BOS Thread

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 705141

Fuel Line

$41.99

$

Usually ships in 2-12 days

0

29

Snapper 705012

Spark Arrester Kit
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

37

Snapper 704997

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 84004020

WASHER, 7/16 Lock SLW

$8.49

$

Usually ships in 2-12 days

0

45

Snapper 705346

Nut Keps Hex 1/4-20 unc

$5.49

$

Usually ships in 2-12 days

0

62

Snapper 705252

Shield Heat Muffler

$14.99

$

Usually ships in 2-12 days

0

69

$29.99

$

In Stock, only 1 left!

0

70

Snapper 705291

Exhaust Tube LH

$35.99

$

Usually ships in 2-12 days

0

71

Snapper 705290

Exhaust Tube RH
(Superseded to 708013)

$38.99

$

In Stock, only 1 left!

0

79

Snapper 705044

Screw Socket HD 5/16-18 x 1

$7.49

$

Usually ships in 2-12 days

0

81

Snapper 705023

Tube Drain Oil Easy

$8.49

$

Usually ships in 2-12 days

0

82

Snapper 705244

Valve Oil Drain

$23.99

$

Usually ships in 2-12 days

0

84

Snapper 705325

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

85

Snapper 84004023

BOLT, 7/16-20 X 4 X GR. 5-1.5, Hex

$8.99

$

Usually ships in 2-12 days

0

90

Snapper 705323

Screw Hexwsh Thd 3/8-16 x 1

$10.99

$

Usually ships in 2-12 days

0

91

Snapper 705049

Bushing

$7.49

$

Usually ships in 2-12 days

0

102

Snapper 705321

Screw 5/16-18 X 3/4 Smgml Tap/Bl
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0
