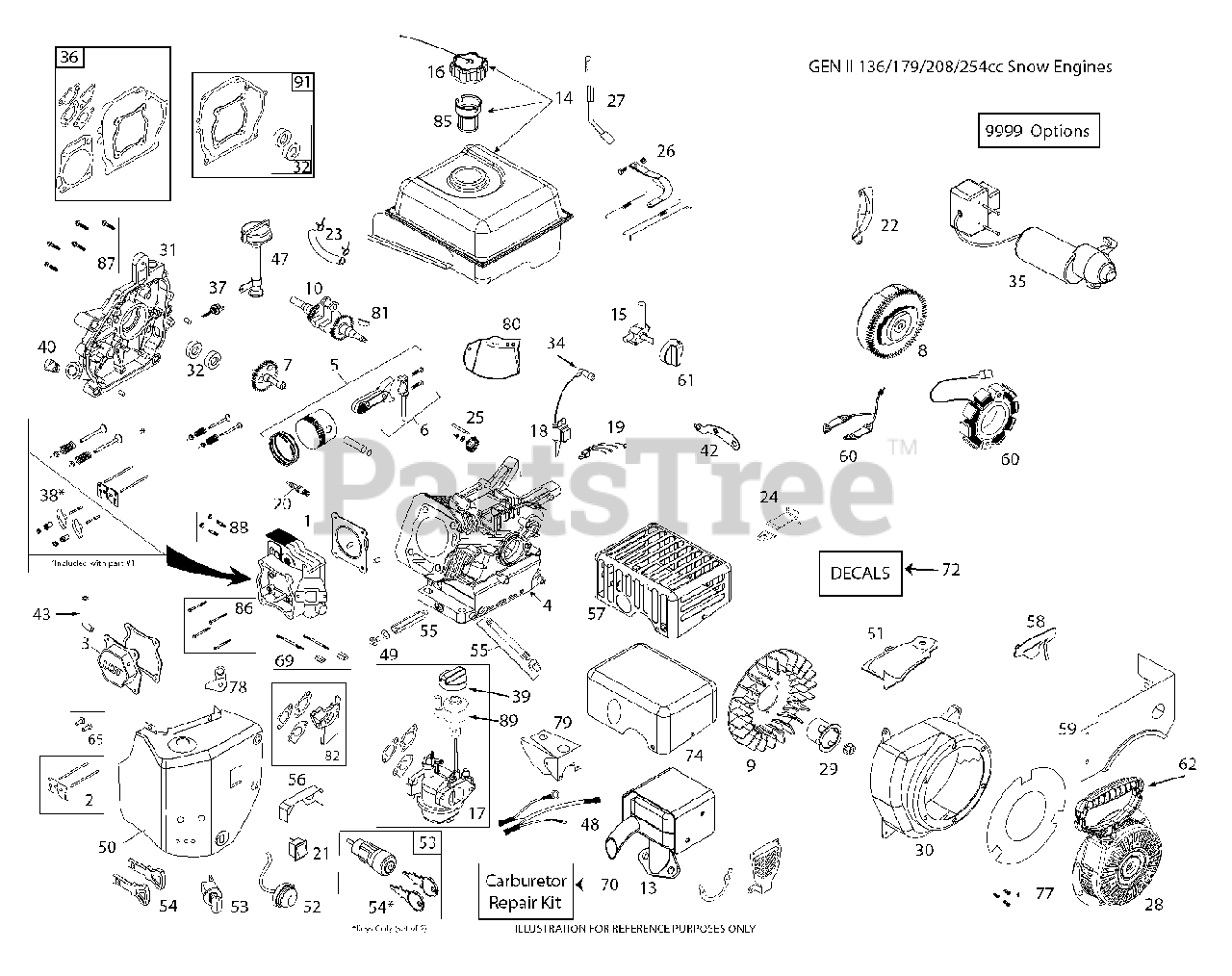

ST 2368 EP (961920076-02) - Jonsered Snow Thrower (2015-06) ENGINE Parts Diagram

Snow Thrower

ENGINE Parts Diagram

  • Title
1

Jonsered 585771401

Cylinder Head Assembly with Gasket, 254

$136.99

$

Usually ships in 3-10 days

0

2

Jonsered 585771501

KIT.PUSH.ROD.&.PLATE.W/VC.GASK

$15.99

$

Usually ships in 3-10 days

0

3

Jonsered 585771601

COVER.VALVE.W/GASKET.254CC

$27.99

$

In Stock, only 1 left!

0

4

Jonsered 587153801

(Superseded to 585335704)

$970.99

$

Usually ships in 3-10 days

0

5

Jonsered 585771701

PISTON.&.ROD ASSEM.254CC

$113.99

$

In Stock, only 1 left!

0

6

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

7

Jonsered 585771801

CAMSHAFT.MCR.W/GASKET.254CC

$45.99

$

Usually ships in 3-10 days

0

8

Jonsered 585771901

FLYWHEEL.ELEC.STRT.(8.MAGNETS)

$194.99

$

Usually ships in 3-10 days

0

9

Jonsered 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 1 left!

0

10

Jonsered 585772001

CRANKSHAFT.KEYED(#18).SNOW.254

$182.99

$

Usually ships in 3-10 days

0

13

Jonsered 585772101

MUFFLER.ASSEM.GEN2.SNOW.254CC
(Superseded to 582582901)

$79.99

$

Usually ships in 3-10 days

0

14

Jonsered 585772201

FUEL.TANK.SNOW.2.7L.BLACK.254C

$169.99

$

Usually ships in 3-10 days

0

15

Jonsered 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$18.99

$

Usually ships in 3-10 days

0

16

Jonsered 532424942

FUEL CAP OVERSIZED CLICK STYLE

$17.99

$

Usually ships in 3-10 days

0

17

Jonsered 587154101

Carburetor, LCT 254 with Idle-Down

$121.99

$

Usually ships in 3-10 days

0

18

Jonsered 532443894

COIL.ING.CDI.HI TEMP.SKSNO416.

$53.99

$

Usually ships in 3-10 days

0

19

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

20

Jonsered 532443898

PLUG.SPARK.PLAT.SKSN2404.1

$44.99

$

In Stock, only 1 left!

0

21

Jonsered 532424957

SWITCH.ON/OFF(SKSN-0403)

$45.99

$

In Stock, only 1 left!

0

22

Jonsered 585772401

SHIELD.FLYWHEEL.ELEC.STRT.208C

$8.99

$

Usually ships in 3-10 days

0

23

Jonsered 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$12.99

$

Usually ships in 3-10 days

0

24

Jonsered 585772501

BRACKET.SPEED.CNTRL.FIXED.254C

$11.99

$

Usually ships in 3-10 days

0

25

Jonsered 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Jonsered 585772601

KIT.GOVERNOR.ARM.&.LINK.254CC

$20.99

$

In Stock, only 1 left!

0

27

Jonsered 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

28

Jonsered 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

29

Jonsered 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

30

Jonsered 587154201

BLOWER HOUSING.LCT.208.ES W/OIL

$34.99

$

Usually ships in 3-10 days

0

31

Jonsered 585772701

CRANKCASE.CVR.PRESS.IN.HI-OIL.

$48.99

$

In Stock, only 1 left!

0

32

Jonsered 585772801

Oil Seal Kit, 2 Pieces 254CC

$27.99

$

Usually ships in 3-10 days

0

34

Jonsered 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

35

Jonsered 532436466

ELEC.START.GEN2.SKSN0400.2

$460.99

$

Usually ships in 3-10 days

0

36

Jonsered 585772901

KIT.ENGINE.GASKET.254CC

$48.99

$

In Stock, only 1 left!

0

37

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

38

Jonsered 585773001

KIT.ROCKER.ARM.W/GASKET.254CC

$30.99

$

Usually ships in 3-10 days

0

39

Jonsered 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 3 left!

0

40

Jonsered 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

42

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

43

Jonsered 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 581007201

High Oil Fill Tube Assembly

$10.99

$

Usually ships in 3-10 days

0

48

Jonsered 532429262

WIRE.HARNESS.SNOW

$15.99

$

Usually ships in 3-10 days

0

49

Jonsered 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

50

Jonsered 585773101

KIT.HEATER.BOX.SNOW.254CC

$62.99

$

Usually ships in 3-10 days

0

51

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

52

Jonsered 532424949

PRIMER.BULB.WITH HOSE (SNOW)

$13.99

$

Usually ships in 3-10 days

0

53

Jonsered 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

54

Jonsered 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 587154401

OIL PIPE DRAIN LCT 254

$40.99

$

In Stock, only 2 left!

0

56

Jonsered 585773301

SHIELD.CARBURETOR.VAPOR

$6.49

$

Usually ships in 3-10 days

0

57

Jonsered TBD

No Description Available

$

$

Not available

58

Jonsered 585773401

SHIELD.GOVERNOR.LINKAGE.254CC

$8.99

$

Usually ships in 3-10 days

0

59

Jonsered 587154501

FUEL TANK SKIRT SHIELD LCT 254

$24.99

$

In Stock, only 4 left!

0

60

Jonsered 532443893

208CC 60W ALTERNATOR

$68.99

$

Usually ships in 3-10 days

0

61

Jonsered 532432752

FUEL KNOB-SNOW

$12.99

$

In Stock, only 2 left!

0

62

Jonsered 532443899

HANDLE.RECOIL.DEL.SKSN0613.1

$17.99

$

Usually ships in 3-10 days

0

65

Jonsered 581372801

TAPPET.KIT.LCT.208CC

$22.99

$

Usually ships in 3-10 days

0

69

Jonsered 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

70

Jonsered 580353601

Carburetor Repair Kit, LCT SK9900

$120.99

$

Usually ships in 3-10 days

0

72

Jonsered TBD

No Description Available

Note: (532 43 56-48) DECAL KIT

$

$

Not available

74

Jonsered 581768801

Muffler Heat Shield Cover

$48.99

$

In Stock, only 1 left!

0

77

Jonsered 532432688

Recoil Bolt Kit, LCT

$4.99

$

In Stock, only 2 left!

0

78

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

78

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

79

Jonsered 585773701

COVER.CARBURETOR.SNOW

$20.99

$

Usually ships in 3-10 days

0

80

Jonsered 585773801

SHIELD.GOVERNOR.LINK.SNOW.254C

$8.99

$

Usually ships in 3-10 days

0

81

Jonsered 585297202

Flywheel Keys, 136/291cc 5-Pack

$26.99

$

Usually ships in 3-10 days

0

82

Jonsered 585020503

Carburetor Spacer, 208cc Lct

$8.99

$

In Stock, only 2 left!

0

85

Jonsered 586325601

Fuel Tank Strainer, LCT 208cc

$8.99

$

In Stock, only 1 left!

0

86

Jonsered 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$14.99

$

Usually ships in 3-10 days

0

87

Jonsered 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$10.99

$

In Stock, only 4 left!

0

88

Jonsered 586326801

STUD.MUFFLER.KIT.LCT

$10.99

$

In Stock, only 4 left!

0

89

Jonsered 587124801

Speed Knob, LCT Sksn5325.1

$9.99

$

Usually ships in 3-10 days

0

91

Jonsered 587994102

CRANKSHAFT GASKET KIT.LCT

$24.99

$

In Stock, only 1 left!

0

9999

Jonsered 587154801

High Altitude Jet, LCT >5000 25

$7.49

$

Usually ships in 3-10 days
