ST 2368 EP (961920076-01) - Jonsered Snow Thrower (2014-08) ACCESSORIES Parts Diagram

Snow Thrower

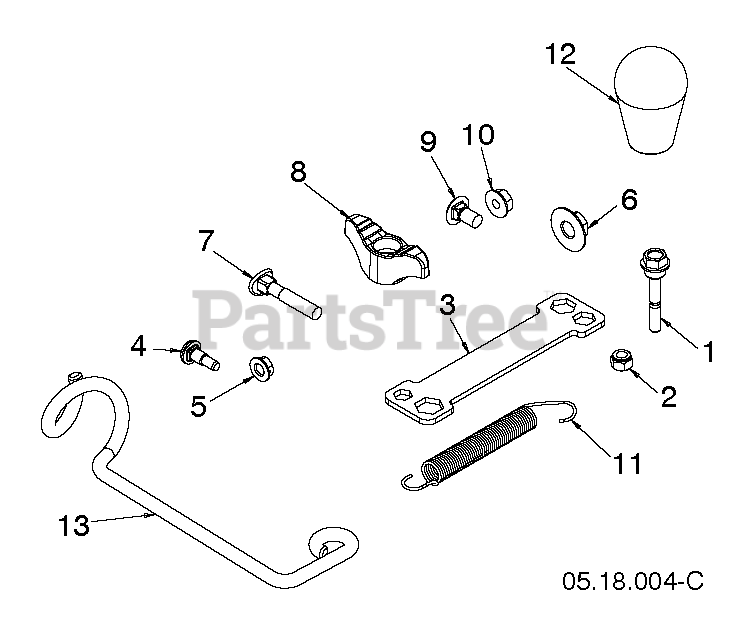

ACCESSORIES Parts Diagram

  • Title
1

Jonsered 585511801

Hex Head Shear Bolt, 1/4-20 X 1-13/16
(Superseded to 588077501)

$5.99

$

In Stock, Qty 20+

0

2

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

3

Jonsered 532429112

WRENCH.SNOWTHROWER

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 585832201

Shoulder Bolt, 1/4

$3.49

$

In Stock, only 1 left!

0

5

Jonsered 585691401

Flange Hex Lock Nut, 1/4-20 Large

$4.99

$

In Stock, only 3 left!

0

6

Jonsered 585691001

Flange Hex Lock Nut, Black 3/8-16

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 587359001

Carriage Bolt, 5/16-18 X 2.25
(Superseded to 588059901)

$4.99

$

In Stock, only 2 left!

0

8

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

9

Jonsered 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

$4.99

$

In Stock, only 1 left!

0

10

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

11

$7.99

$

In Stock, Qty 8

0

12

Jonsered 581697501

Knob, Soft Touch Slotted 428

$10.99

$

Usually ships in 3-10 days

0

13

Jonsered 581897301

Cable Rotation Support

$9.49

$

In Stock, only 1 left!

0
