ST 2361 (961920081-01) - Jonsered Snow Thrower (2015-08) CHASSIS ENGINE PULLEYS Parts Diagram

Snow Thrower

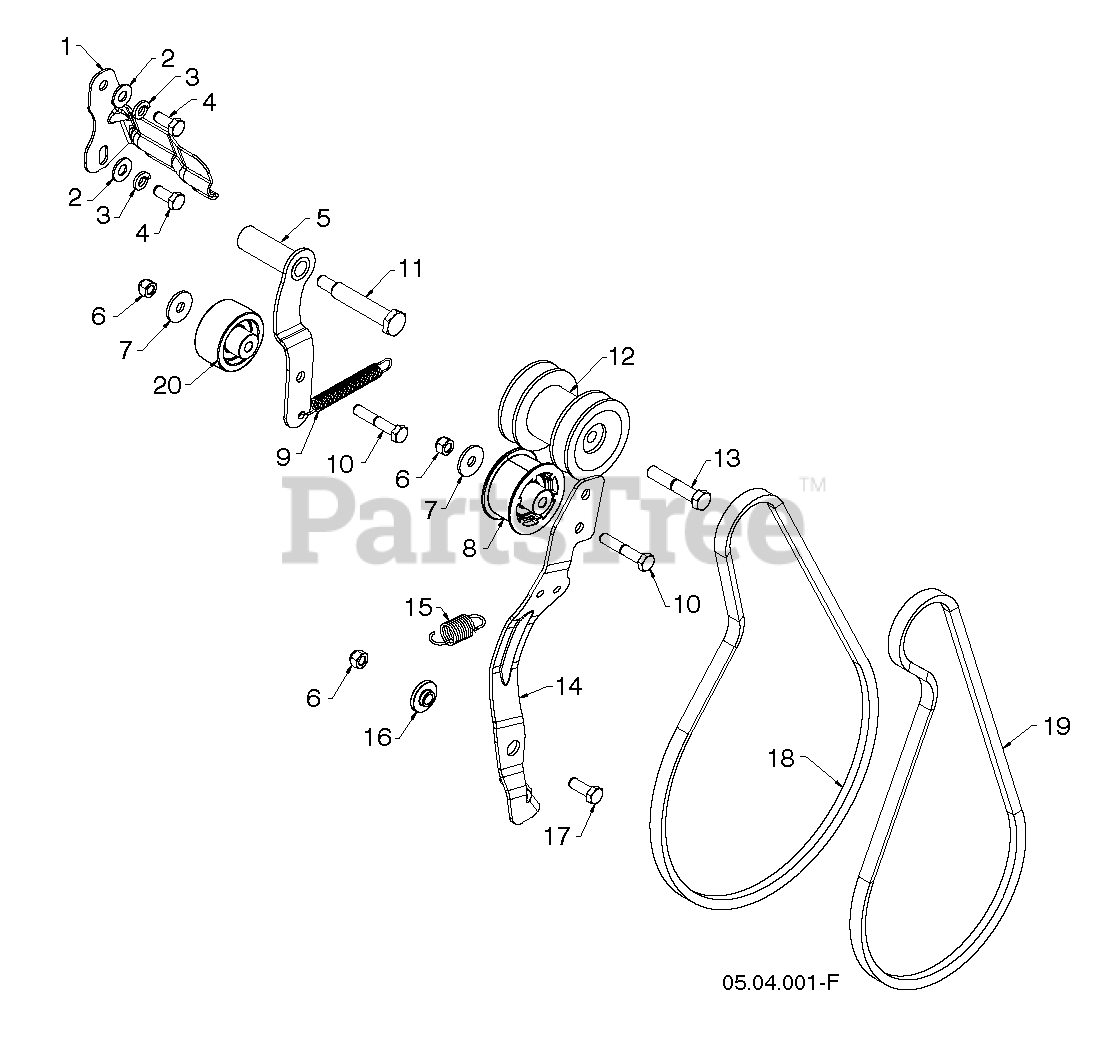

CHASSIS ENGINE PULLEYS Parts Diagram

  • Title

1

Jonsered 588492802

Belt Keeper Bracket

$6.99

$

In Stock, only 1 left!

0

2

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

3

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

5

Jonsered 581338203

Drive Weldment Idler Arm, Hot 008

$10.99

$

Usually ships in 3-10 days

0

6

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

8

Jonsered 581141401

Idler Pulley, 2.00 W Spa
(Superseded to 581141402)

$11.99

$

In Stock, Qty 10

0

9

Jonsered 580753001

Idler Arm Return Spring

$5.99

$

In Stock, Qty 5

0

10

Jonsered 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

11

Jonsered 581413801

Hex Head Shoulder Bolt, 5/16-24 X 2.25

$4.99

$

In Stock, only 2 left!

0

12

Jonsered 587893703

Impeller/Drive Assembly Pulley

$31.99

$

In Stock, only 4 left!

0

13

Jonsered 532179617

BOLT.BLADE

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 580831104

Impeller Idler Arm Bracket
(Superseded to 580831106)

$9.49

$

In Stock, only 1 left!

0

15

Jonsered 587031201

Impeller Idler Arm Return Spring

$5.99

$

In Stock, only 1 left!

0

16

Jonsered 587343701

Idler Pivot Bushing

$6.99

$

Usually ships in 3-10 days

0

17

Jonsered 874760514

BOLT

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 584216102

Belt, 4L X 38.19

$17.99

$

In Stock, Qty 14

0

19

Jonsered 581832401

Low Crank Impeller Belt
(Superseded to 501818201)

$17.99

$

In Stock, only 1 left!

0

20

Jonsered 586880201

Flange Idler Pulley, 2 O/Spacer
(Superseded to 586880202)

$12.99

$

In Stock, only 4 left!

0
