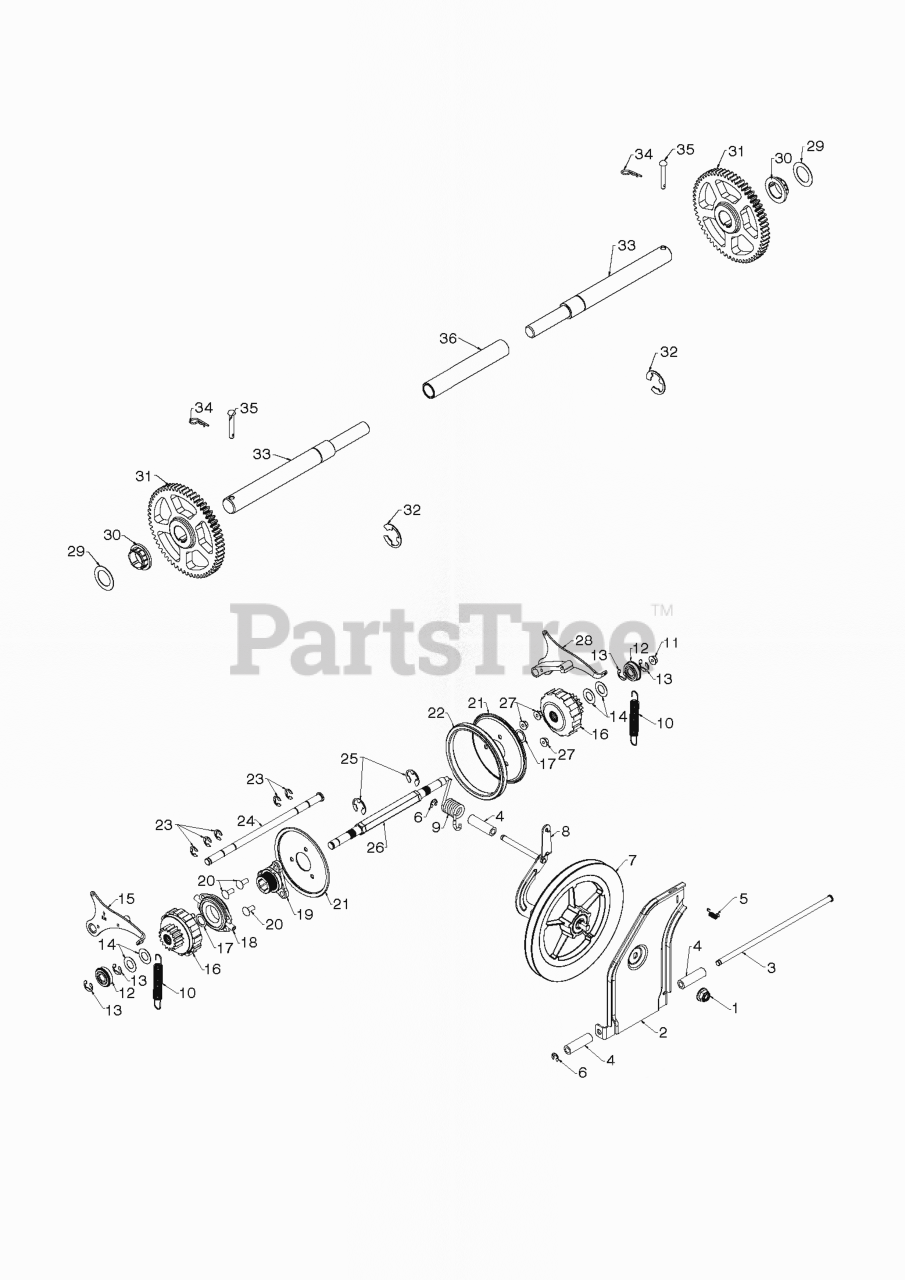

ST 230 P - Husqvarna 30" Snow Blower DRIVE Parts Diagram

30" Snow Blower

DRIVE Parts Diagram

  • Title

9

Husqvarna 581315301

SPRING TORSION DRIVE

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587703402

PLATE.SWING.FRICTION PULLEY.47

Note: For all EXCEPT 96191009005

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 580752501

SLEEVE SLEEVE, AXLE SLEEVE

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532444949

WASHER 1.00

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 580756601

PAWL.ASM.RH.SNOW

$21.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581091002

PLATE.RUBBER.WHEEL.BLACK

$12.99

$

In Stock, only 1 left!

0

34

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

27

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

Note: For 96193010106

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 581123002

ROD ROD,PIVOT, SWING PLATE ROD

$9.49

$

In Stock, only 1 left!

0

16

Husqvarna 580756001

GEAR.ASM.PLANETARY

$80.99

$

Usually ships in 3-10 days

0

30

Husqvarna 587978901

BUSHING.HEX.1.SHAFT

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 531447002

PLATE TIP PULLEY SLOTTED MS431

Note: For 96191009005

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 581328402

PULLEY ASSY TEXTURED TEXTURED

Note: For 96191009005

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532193885

SPRING LATCH

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 597412801

BEARING HOUSING ASSY TRUNNION

$34.99

$

In Stock, only 1 left!

0

22

Husqvarna 597362801

Friction Drive

Note: For 96191009005

$13.99

$

In Stock, Qty 10

0

20

Husqvarna 872050506

RHSNB 5/16-18 X 3/4 GR5 BLK ZN
(Superseded to 539109100)

Note: For 96193010106

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

32

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 580752601

AXLE AXLE, SPLIT SHAFT

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 580756701

PAWL.ASM.LH.SNOW

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 580755101

ROD ROD, PAWL ROD

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

Note: For all EXCEPT 96193010106

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 595841101

RETAINER RING E-RING CLEAR ZI

$2.49

$

Usually ships in 3-10 days

0

31

Husqvarna 588518601

GEAR.59T

$79.99

$

Usually ships in 3-10 days

0

12

Husqvarna 580756201

BEARING 9/16 ID. SNR

$7.49

$

In Stock, Qty 7

0

17

Husqvarna 580756301

WASHER FLAT.59IDX1.065ODX25GA

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 585263801

SPRING EXTENSION PS

$5.99

$

In Stock, only 3 left!

0

27

Husqvarna 532751153

NUT.LOCK.5/16-18

Note: For all EXCEPT 96193010106

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 586644301

CLIP E-RING_.500 SHAFT

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 587193403

BRACKET.YOKE.ASSEMBLY.479

$4.99

$

In Stock, Qty 9

0

35

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 581328401

PULLEY.FRICTION.DISC.COMBO

Note: For all EXCEPT 96191009005

$37.99

$

Usually ships in 3-10 days

0

26

Husqvarna 580752401

SHAFT SHAFT, PWR STR SHAFT

$62.99

$

In Stock, only 1 left!

0

14

Husqvarna 580751301

WASHER FLAT.637IDX1.00ODX21GA

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 580756102

RING.RETAINING.1622-2RSNR.CLER

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 581091101

RING RUBBER
(Superseded to 597362801)

Note: For all EXCEPT 96191009005

$13.99

$

In Stock, Qty 10

0
