ST 230 P - Husqvarna 30" Snow Blower "CHASSIS, ENGINE & PULLEYS" Parts Diagram

30" Snow Blower

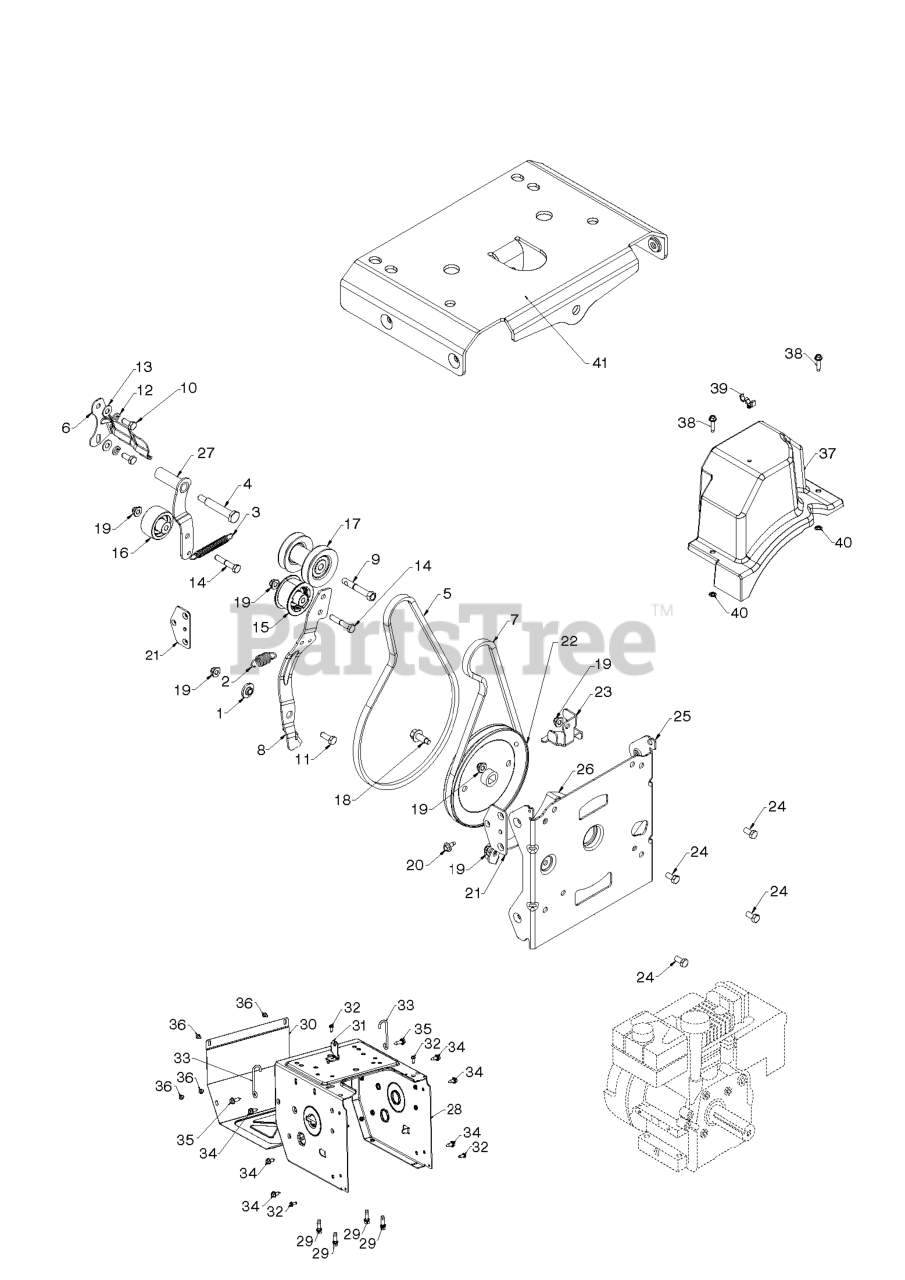

"CHASSIS, ENGINE & PULLEYS" Parts Diagram

  • Title

39

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

Note: For 96191009005, 96193010106

$3.99

$

In Stock, Qty 11

0

13

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

Note: For all EXCEPT 96191009005, 96193010106

$3.99

$

In Stock, Qty 11

0

7

Husqvarna 501818202

HIGH CRANK IMPELLER BELT

$31.99

$

In Stock, Qty 20+

0

11

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, Qty 7

0

41

Husqvarna 585546002

BRACKET.FRAME.SUP.LARGEENG.BLA

$51.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 2 left!

0

37

Husqvarna 587105501

COVER BELT ASM HIGH CRANK
(Superseded to 585771101)

$31.99

$

In Stock, only 1 left!

0

18

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 590699201

PULLEY IMPELLER DD 4L
(Superseded to 536862701)

$31.99

$

In Stock, only 1 left!

0

35

Husqvarna 593337201

SCREW HEXAGON HEAD WITH COLLAR

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

32

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

Husqvarna 598609803

ENGINE RATO 301CC (CARB)

Note: For 97046810100, (See Husqvarna Engine IPL for service parts)

$854.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588492802

BELT KEEPER BRACKET

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 580426108

ENGINE.LCT.291CC.ST FORCE.SNO

Note: For all EXCEPT, 96193010105, 96193010106 (See LCT Engine IPL for serice parts)

$1941.99

$

Usually ships in 3-10 days

0

Husqvarna 580426107

ENGINE.LCT.291CC.SNO.16

Note: For 96193010105, (See LCT Engine IPL for service parts)

$1152.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 3 left!

0

16

Husqvarna 586880202

PULLEY.IDLER.FLNGLESS.W/SPACER

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

38

000000000

Note: For 96191009005, BOLT HEX WSH THDRL 1/4-20 X 1

$

$

Not available

3

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 19

0

40

000000000

Note: For 96191009005

$

$

Not available

28

Husqvarna 589264705

FRAME MS 668

$113.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581141402

PULLEYIDLER.2.0.W/SPACER.CZ

$11.99

$

In Stock, Qty 6

0

25

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

38

000000000

Note: For all EXCEPT 96191009005

$

$

Not available

5

Husqvarna 585829902

BELT.HIGH.CRANK.4LX41.RAW.EDGE

$17.99

$

In Stock, only 4 left!

0

31

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

40

000000000

Note: For 96191009005, PALNUT 1/4 IN

$

$

Not available

1

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

33

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

34

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 6

0

Husqvarna 590218603

ENGINE LCT 208CC 6.3HP DSST OP

Note: For 96193010106, (See LCT Engine IPL for service parts)

$787.99

$

Usually ships in 3-10 days

0

12

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$56.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, only 1 left!

0

29

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0
