ST 230 P - Husqvarna 30" Snow Blower AUGER HOUSING & IMPELLER Parts Diagram

30" Snow Blower

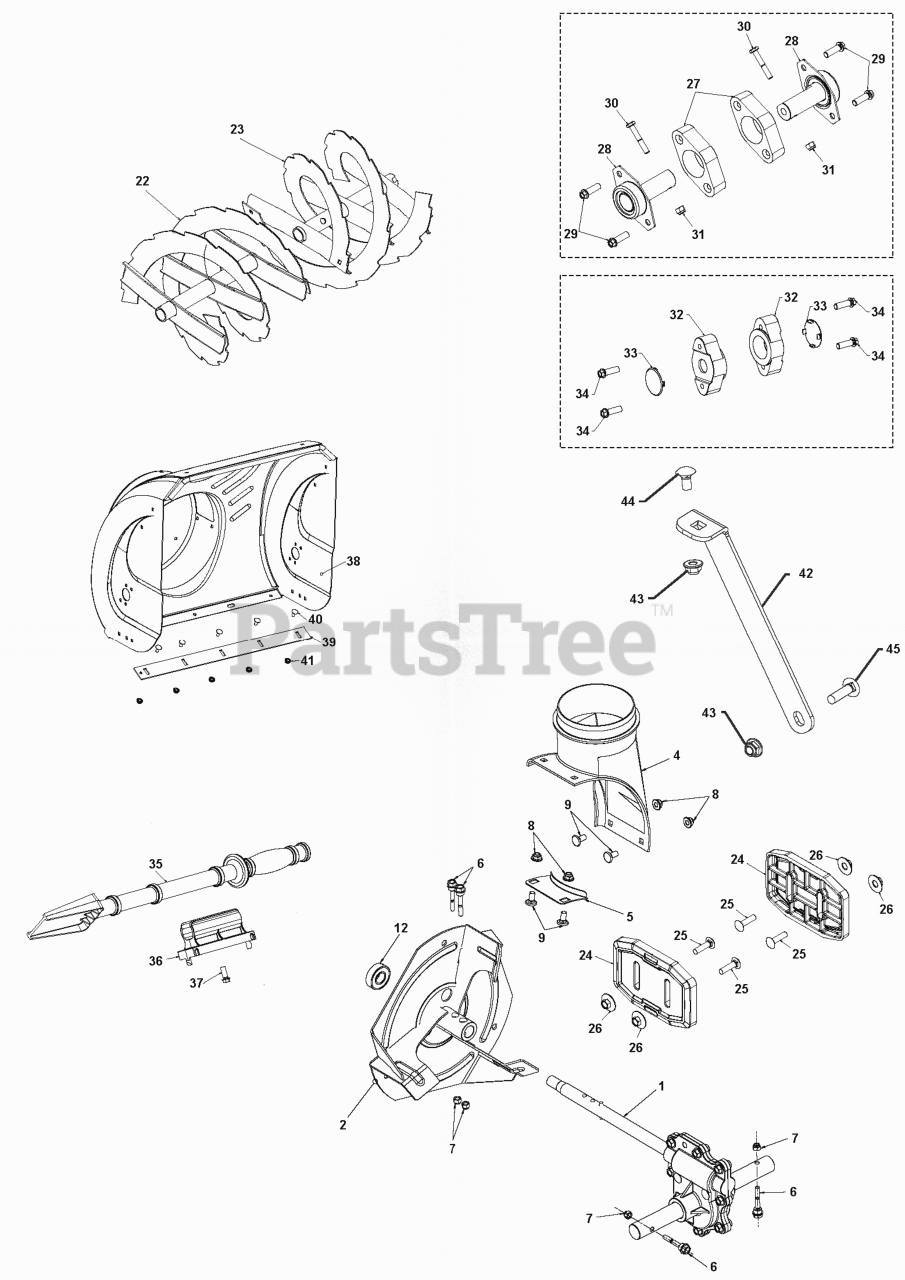

AUGER HOUSING & IMPELLER Parts Diagram

  • Title

23

Husqvarna 532421124

AUGER.WELD.RIB.BUT.LH.30.BLACK

Note: LH

$157.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note: For all EXCEPT 96193010106

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 532411939

PLUG.BEARING.HOLE.HSG

Note: For 96191009005

$10.99

$

In Stock, only 2 left!

0

7

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 96193010106

$2.49

$

In Stock, Qty 20+

0

31

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note: For 96191009004, 96191001500, 96193010105

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 532188170

BEARING RETAINER, PLASTIC

Note: For all EXCEPT 96191009005

$9.99

$

In Stock, only 1 left!

0

8

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$11.99

$

In Stock, only 4 left!

0

37

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

38

Husqvarna 581708391

KIT.AUGER.HOUSING.586184105

$433.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532416270

RP BAR.SCRAPER.30.BLACK
(Superseded to 532435830)

$24.99

$

In Stock, Qty 6

0

42

Husqvarna 589323002

BRACE SUPPORT GEARBOX 200 SERI

$10.99

$

In Stock, only 1 left!

0

36

Husqvarna 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 585802801

NUT.HEX.FL 5/16-18 TOP LCK BLK

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 532420478

BEARING.AUGER.SHAFT

Note: For 96191009005

$9.99

$

In Stock, only 1 left!

0

6

Husqvarna 588077502

BOLT SHEAR HX HD 1/4-20 CLEAR

$5.99

$

In Stock, Qty 8

0

12

Husqvarna 532198791

BEARING

$18.99

$

In Stock, Qty 9

0

28

Husqvarna 532427762

BEARING.BALL.AUGER.FLAT.
(Superseded to 594082801)

Note: For 96191009004, 96191001500, 96193010105

$18.99

$

In Stock, Qty 6

0

1

Husqvarna 582867602

Gears

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586607202

IMPELLER.STEEL.SNOW.BLACK

$40.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585802901

BOLT CAR BLK 5/16-18 X 1-1/4

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For all EXCEPT 96191009005

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 594082801

BALL BEARING AUGER BALL BEARIN

Note: For 96193010106

$18.99

$

In Stock, Qty 6

0

5

Husqvarna 597433002

Brackets

$4.99

$

In Stock, Qty 13

0

9

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

31

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 96193010106

$2.49

$

In Stock, Qty 20+

0

35

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

22

Husqvarna 532421125

AUGER.WELD.RIB.BUT.RH.30.BLACK

Note: RH

$157.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 583838801

PLATE.SKID.SHOE.COMPOSITE

$9.49

$

In Stock, Qty 11

0

30

Husqvarna 596322101

BOLT HEXAGON BOLT 1/4-20 X 1-5

Note: For 96193010106

$3.99

$

In Stock, Qty 13

0

43

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, only 2 left!

0

34

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For 96191009005

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

Note: For 96191009004, 96191001500, 96193010105

$3.99

$

In Stock, Qty 13

0
