ST 230 P (961930101-04) - Husqvarna 30" Snow Blower (2017-04) "CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

30" Snow Blower

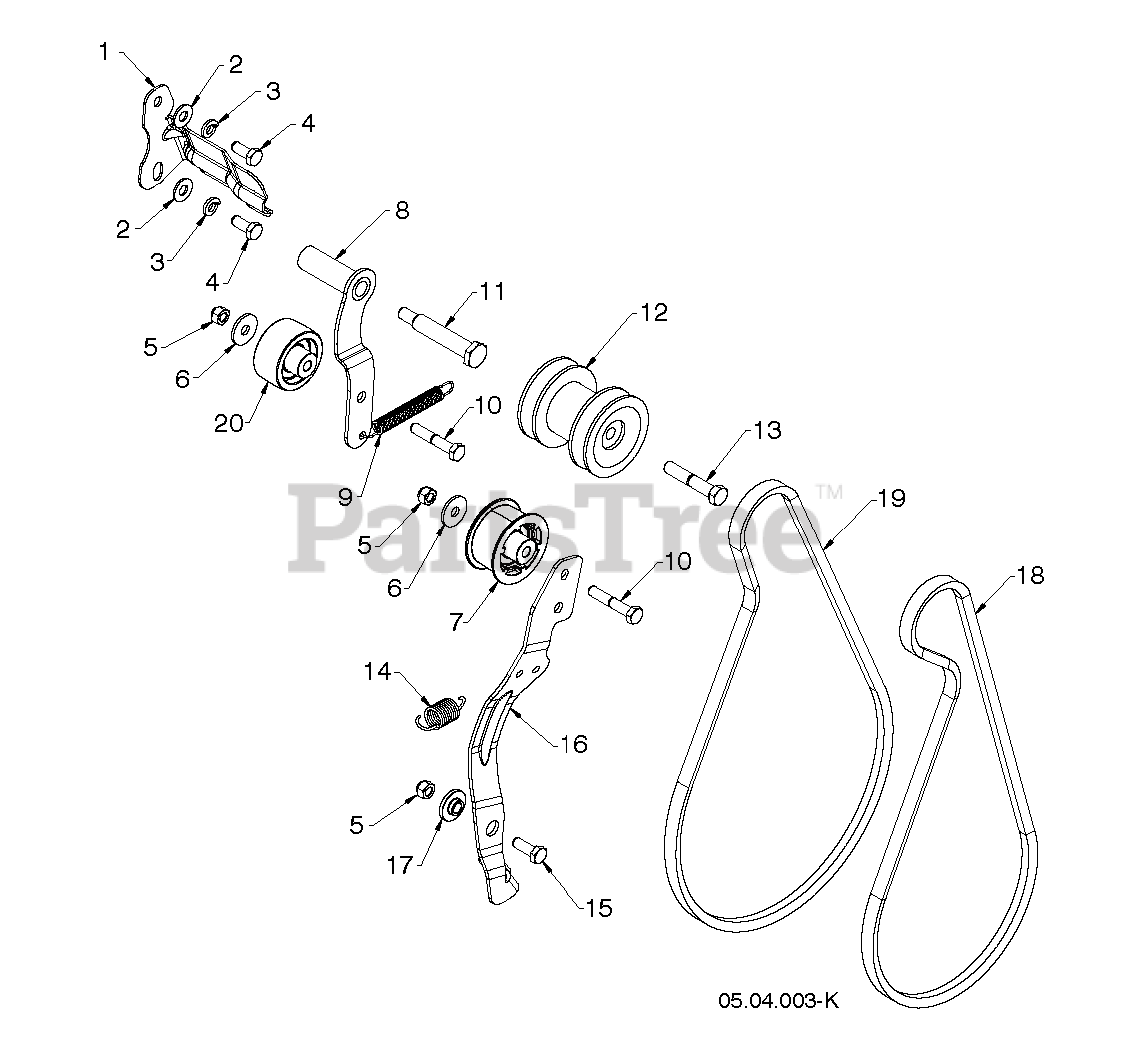

"CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

  • Title
11

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 581141401

PULLEY,IDLER,2.00 W SPA
(Superseded to 581141402)

$11.99

$

In Stock, Qty 8

0

13

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 501818202

HIGH CRANK IMPELLER BELT

$31.99

$

In Stock, Qty 20+

0

1

Husqvarna 588492802

BELT KEEPER BRACKET

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 7

0

5

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

19

Husqvarna 585829902

BELT.HIGH.CRANK.4LX41.RAW.EDGE

$17.99

$

In Stock, Qty 5

0

3

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

In Stock, only 4 left!

0

12

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 4 left!

0

14

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, only 1 left!

0

2

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0
