ST 230 P (961930101-01) - Husqvarna 30" Snow Blower (2014-06) CHASSIS ENGINE PULLEYS Parts Diagram

30" Snow Blower

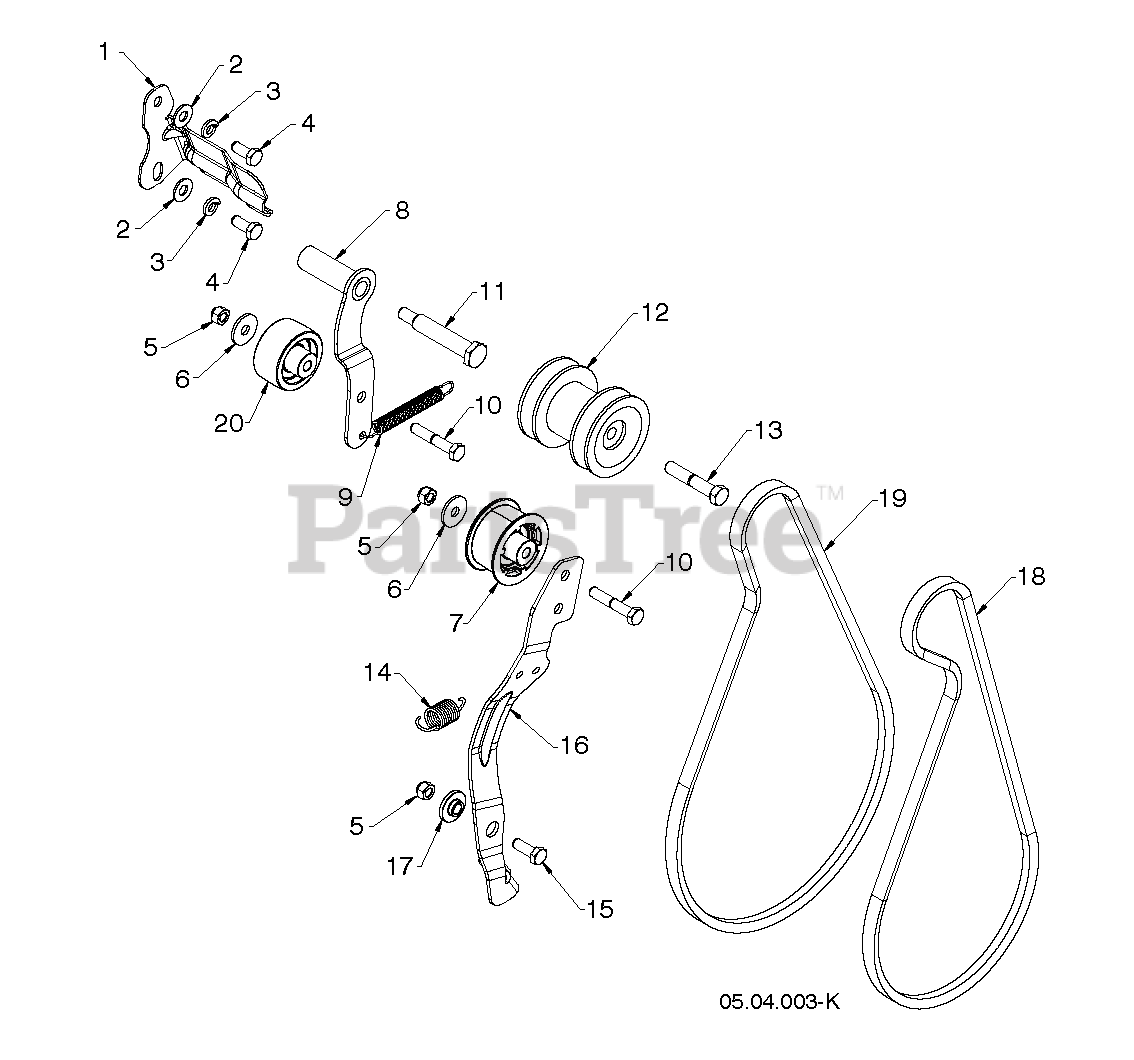

CHASSIS ENGINE PULLEYS Parts Diagram

  • Title

1

Husqvarna 581623702

BRACKET.BELT.KEEPER.004.BZP

$

$

Not available

2

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 810040500

LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

4

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 581141401

PULLEY,IDLER,2.00 W SPA
(Superseded to 581141402)

$11.99

$

In Stock, Qty 8

0

8

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

9

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 587462901

PULLEY.ASM.IMPELLER/DRIVE
(Superseded to 587893703)

$31.99

$

In Stock, only 4 left!

0

13

Husqvarna 532179617

BOLT.BLADE

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, only 1 left!

0

15

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 580831104

BRACKET ARM.IDLER.IMPELLER ARM
(Superseded to 580831106)

$9.49

$

In Stock, only 1 left!

0

17

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587209001

BELT.AUGER.HI.CRANK
(Superseded to 584216102)

$17.99

$

In Stock, Qty 11

0

19

Husqvarna 585829901

BELT.DRIVE.HI-CRANK
(Superseded to 585829902)

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

In Stock, only 4 left!

0
