ST 230 P (961910090-05) - Husqvarna 30" Snow Blower (2019-03) CONTROL PANEL & DISCHARGE CHUTE 9 Parts Diagram

30" Snow Blower

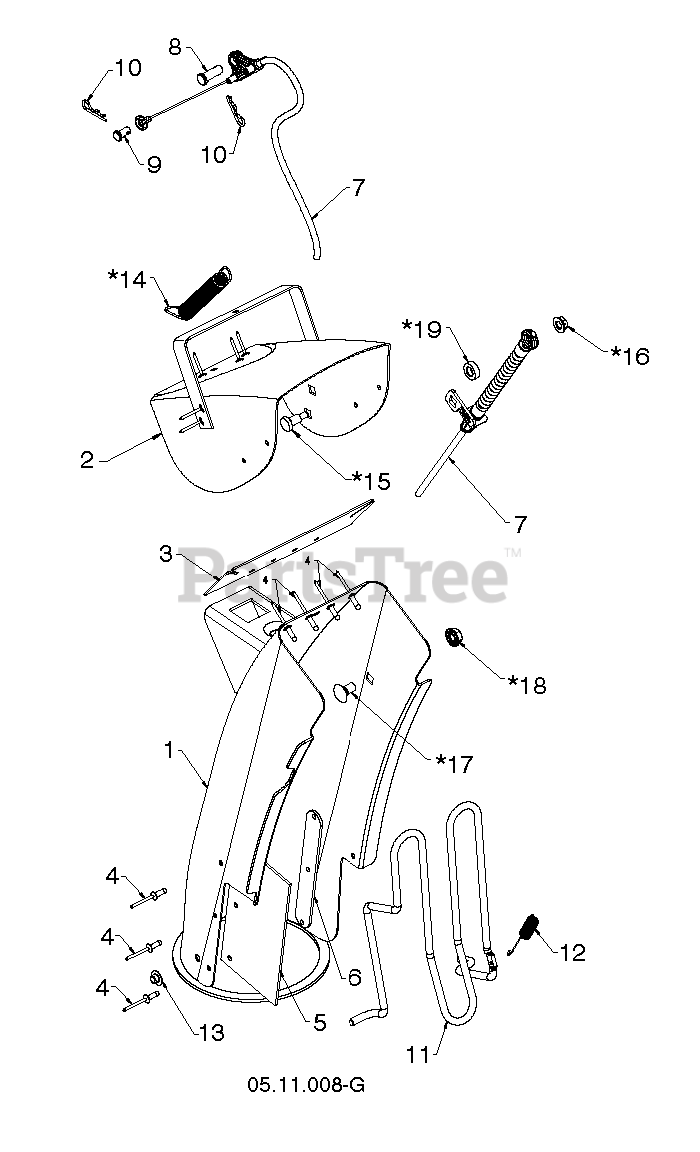

CONTROL PANEL & DISCHARGE CHUTE 9 Parts Diagram

  • Title

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: INCLUDED IN BAG OF PARTS

$7.99

$

In Stock, Qty 8

0

*17

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 1 left!

0

6

000000000

Note: RETAINER

$

$

Not available

13

Husqvarna 532059349

NUT
(Superseded to 582935201)

$4.99

$

Usually ships in 3-10 days

0

3

000000000

Note: SEAL

$

$

Not available

7

Husqvarna 590587002

CABLE CONTROL.CHUTE.DEFLECTOR.

$22.99

$

In Stock, only 1 left!

0

12

Husqvarna 532435616

SPRING.CHUTE.GUARD

$4.99

$

Usually ships in 3-10 days

0

*19

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

$21.99

$

Usually ships in 3-10 days

0

5

000000000

Note: SHIELD

$

$

Not available

*18

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: INCLUDED IN BAG OF PARTS

$3.99

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NUMBERS 1-6

$120.99

$

In Stock, only 1 left!

0

*15

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: INCLUDED IN BAG OF PARTS

$5.99

$

In Stock, Qty 7

0

*16

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$4.99

$

In Stock, only 1 left!

0

4

000000000

Note: POP RIVET

$

$

Not available

9

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 1 left!

0
