ST 230 P (961910090-05) - Husqvarna 30" Snow Blower (2019-03) "CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

30" Snow Blower

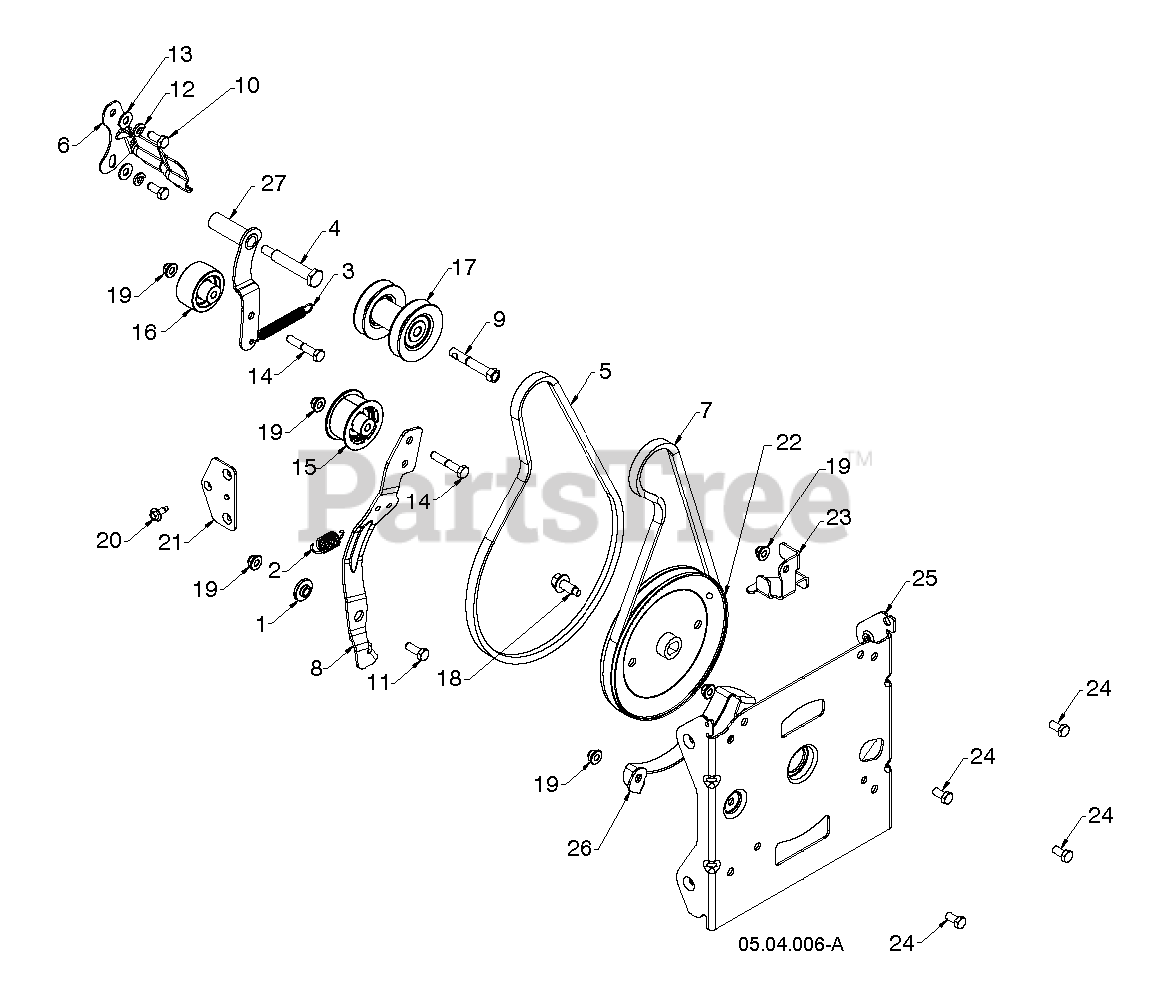

"CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

  • Title
27

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

24

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 19

0

5

Husqvarna 585829902

BELT.HIGH.CRANK.4LX41.RAW.EDGE

$17.99

$

In Stock, only 4 left!

0

6

Husqvarna 588492802

BELT KEEPER BRACKET

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 590699201

PULLEY IMPELLER DD 4L
(Superseded to 536862701)

$31.99

$

In Stock, only 1 left!

0

14

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 586880202

PULLEY.IDLER.FLNGLESS.W/SPACER

$12.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 501818202

HIGH CRANK IMPELLER BELT

$31.99

$

In Stock, Qty 20+

0

20

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 3 left!

0

15

Husqvarna 581141402

PULLEYIDLER.2.0.W/SPACER.CZ

$11.99

$

In Stock, Qty 6

0

12

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 11

0

2

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, Qty 7

0
