ST 230 P (961910090-03) - Husqvarna 30" Snow Blower (2017-05) "CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

30" Snow Blower

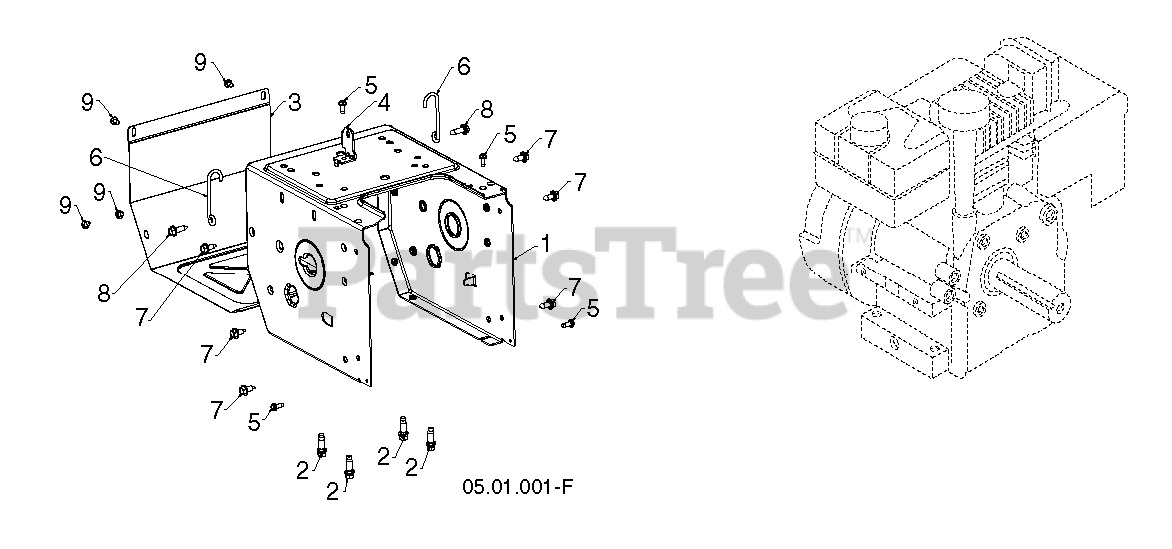

"CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

  • Title
4

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

2

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 580839405

FRAME.GEAR.CASE.ORANGE

$

$

Not available

5

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 14

0

Husqvarna 580426108

ENGINE.LCT.291CC.ST FORCE.SNO

Note: LCT PW2HK18850178Y

$1941.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585217501

SCREW HEX_SERR_HD_5_16-18X1.0
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$56.99

$

Usually ships in 3-10 days

0
