ST 227 S (41BD2S7C912) - Cub Cadet String Trimmer (2011) General Assembly Parts Diagram

String Trimmer

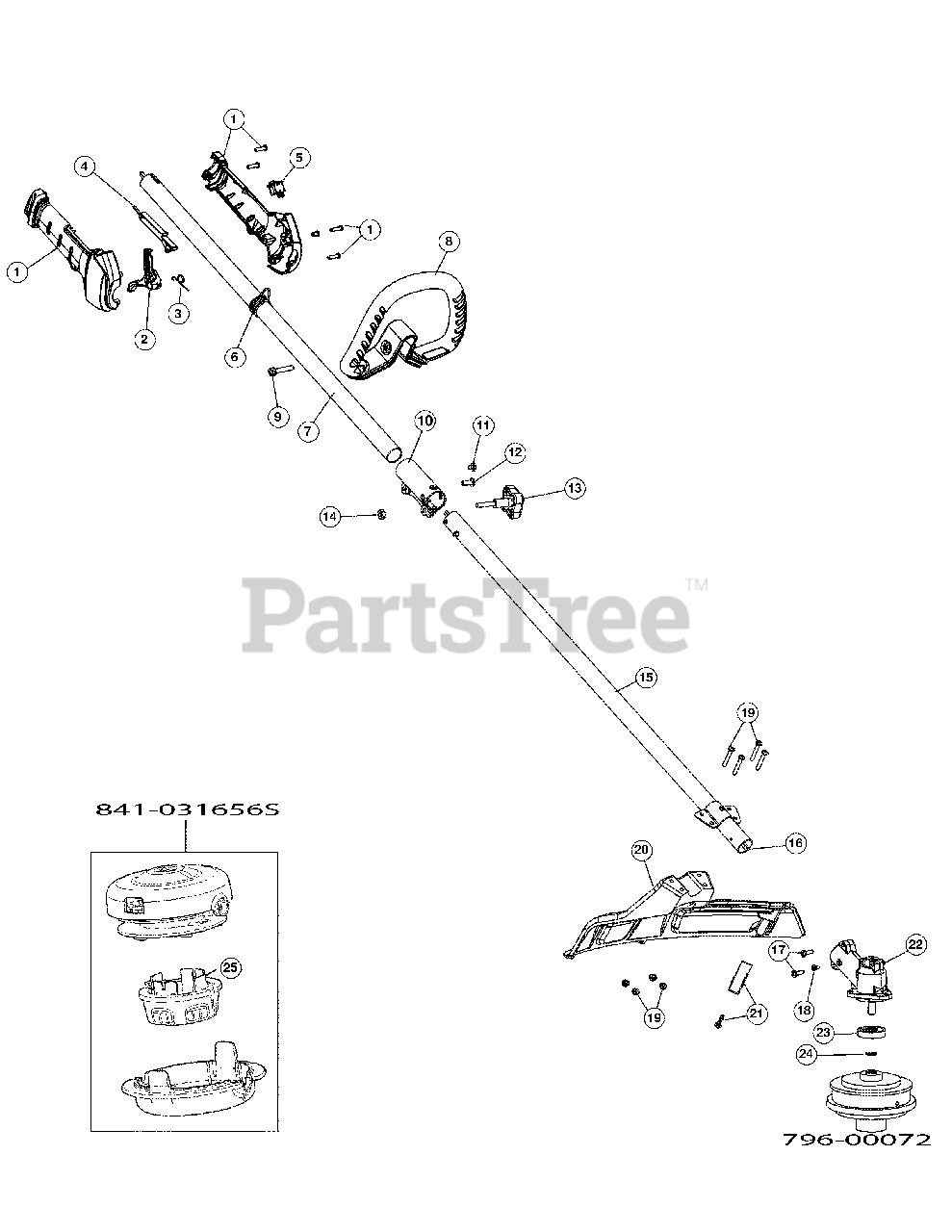

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. 2-5)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet 753-05007

Spring

$5.49

$

In Stock, only 3 left!

0

4

Cub Cadet 731-04971C-10

Throttle Lock-Out
(Superseded to 731-04971B-10)

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

Cub Cadet 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06558

Upper Driver Shaft Housing Assembly

$

$

Not available

8

Cub Cadet 753-06039

D-Handle Assembly

Note: (Incl. 9)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 753-06585

Split Boom Coupler

Note: (Incl. 11-14)

$9.49

$

In Stock, only 4 left!

0

11

Cub Cadet 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

13

Cub Cadet 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

14

Cub Cadet 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 753-06557

Lower Drive Shaft Assembly

Note: (Incl. 16)

$22.99

$

In Stock, only 1 left!

0

16

Cub Cadet 791-181166

Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 791-153597

Lower Clamp Assembly

Note: (Incl. 18)

$

$

Not available

18

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 753-05822

Shield Mounting Screw & Nut

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-05820

Shield Assembly

Note: (Incl. 21)

$24.99

$

In Stock, only 3 left!

0

21

Cub Cadet 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 791-182193

Gearbox Assembly

$99.99

$

In Stock, only 2 left!

0

23

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

24

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 753-08163

Bump Knob

$3.49

$

In Stock, Qty 19

0

841-031656S

Cub Cadet 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

Note: (replaces 796-00072) (includes 25)

$23.99

$

In Stock, only 2 left!

0

796-00072

Cub Cadet 796-00072

Cutting Head Assembly
(Superseded to 841-032392S)

$23.99

$

In Stock, only 2 left!

0

Cub Cadet 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Cub Cadet WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$14.99

$

In Stock, only 4 left!

0

Cub Cadet 49M2027P953

Electric Starter
(Superseded to 625-04120)

Note: (Optional Accessory)(not shown)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 49MESCBP912

Engine Start Bit
(Superseded to 49MASCBP953)

Note: (Optional Accessory)(not shown)

$20.99

$

In Stock, only 3 left!

0

Cub Cadet 49MRBESY912

Cordless Electric Starter

Note: (Optional Accessory)(not shown)

$

$

Not available
