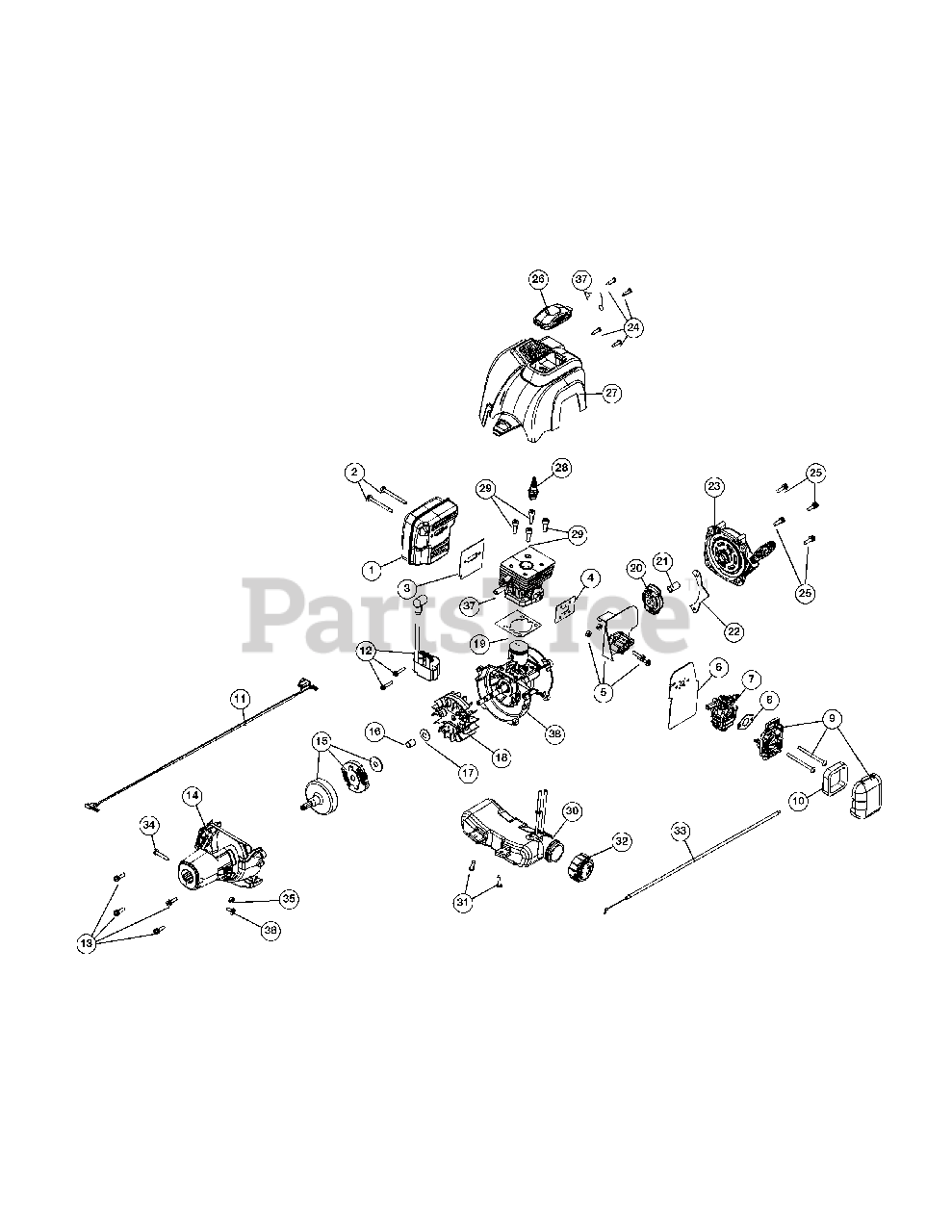

ST 227 S (41BD2S7C912) - Cub Cadet String Trimmer (2011) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06349

Muffler Assembly

Note: (Incl. 2 & 3)

$40.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06294

Muffler Bolts

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06352

Muffler Gasket

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-06353

Gasket

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-06354

Insulator Assembly

Note: (Incl. 4)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-06355

Heat Shield

$

$

Not available

7

Cub Cadet 753-06356

Carburetor

$42.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 753-05725

Aircleaner Assembly

Note: (Incl. 10)

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181757

Aircleaner Filter

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 753-06357

Lead Wire

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-06303

Module Assembly

$53.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-04742A

Clutch Cover Screws

$3.49

$

In Stock, only 1 left!

0

14

Cub Cadet 753-06358

Clutch Cover Assembly

Note: (Incl. 13)

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-06281

Clutch Assembly

$22.99

$

In Stock, only 3 left!

0

16

Cub Cadet 753-06359

Spacer

$

$

Not available

17

Cub Cadet 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

18

Cub Cadet 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-06360

Cylinder Gasket

$

$

Not available

20

Cub Cadet 753-06091

Pawl Assembly

$9.49

$

In Stock, only 2 left!

0

21

Cub Cadet 753-06104

Electric Starter Adapter

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 753-06364

Starter Cover Guard

Note: (Incl. 25)

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-06361

Starter Assembly

Note: (Incl. 22 & 25)

$

$

Not available

24

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 710-04742A

Screw

$3.49

$

In Stock, only 1 left!

0

26

Cub Cadet 753-06362

Spark Plug Cover

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-06639

Engine Cover

Note: (Incl. 24)

$

$

Not available

28

Cub Cadet 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-04715

Cylinder Screws

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 753-06250

Fuel Tank Assembly

Note: (Incl. 31 & 32)

$21.99

$

In Stock, Qty 14

0

31

Cub Cadet 791-181930

Fuel Tank Screws

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 791-182612

Fuel Cap

$20.99

$

In Stock, Qty 10

0

33

Cub Cadet 753-05883

Throttle Cable

$

$

Not available

34

Cub Cadet 753-04003

Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

35

Cub Cadet 712-0161

Nut

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 753-06640

Wire Guard

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 753-06638

Shortblock

Note: (Incl. 12, 16-19 & 28-29)

$

$

Not available
