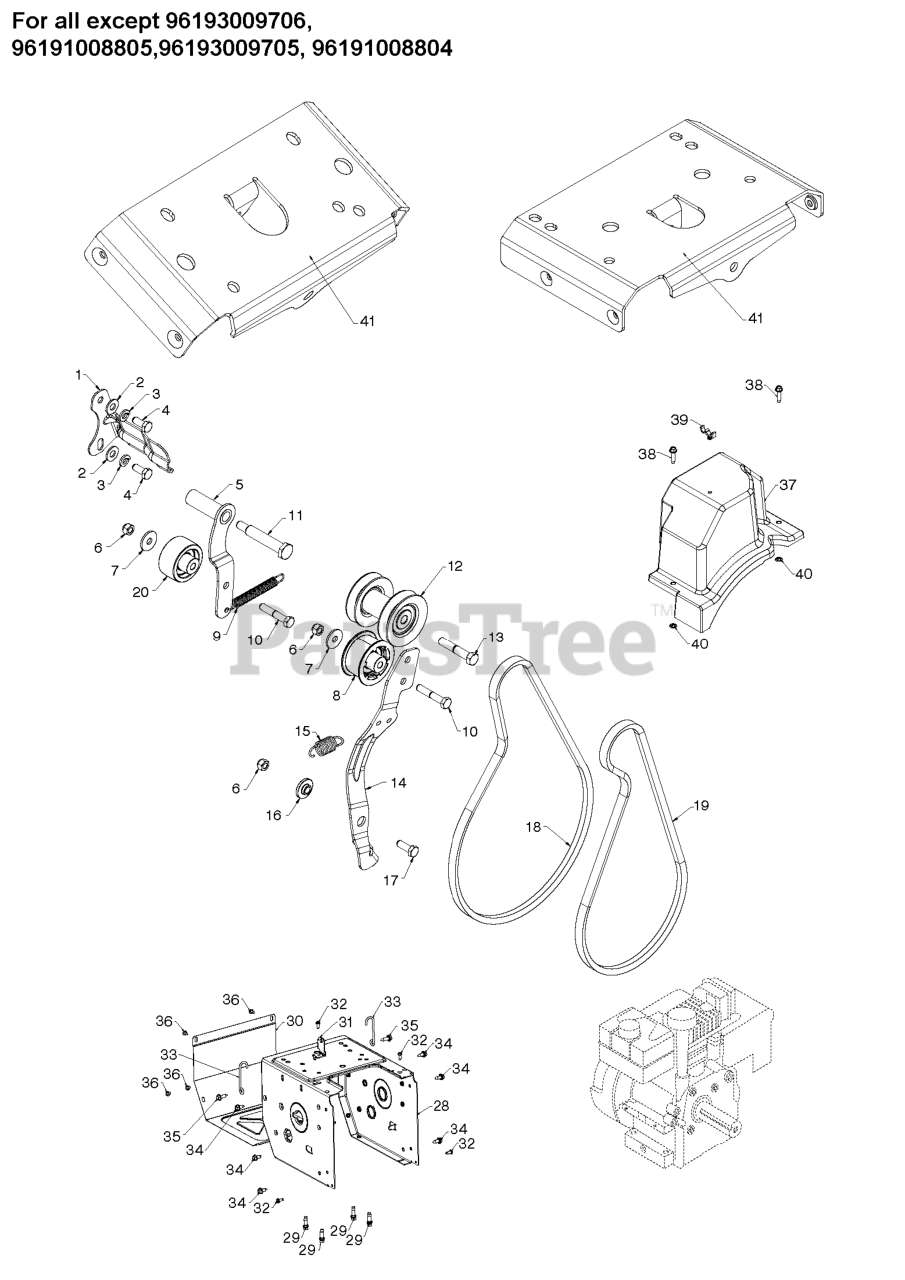

ST 227 P - Husqvarna 27" Snow Blower "CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

27" Snow Blower

"CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

  • Title

33

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

32

Husqvarna 817060410

SCREW 14-20 X 5/8

Note: For all EXCEPT 96191008803, 96193009704

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532179617

BOLT.BLADE

Note: For 96191008800, 96193009701

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

15

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

Note: For all EXCEPT 96193009704

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

Note: For 96191008803, 96193009704, 96191008802

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$11.99

$

In Stock, only 1 left!

0

20

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

In Stock, only 4 left!

0

8

Husqvarna 581141401

PULLEY,IDLER,2.00 W SPA
(Superseded to 581141402)

$11.99

$

In Stock, Qty 8

0

30

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$56.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 1 left!

0

37

Husqvarna 581049901

COVER COVER.BELT

Note: For 96191008800, 96193009701

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

Note: For 96191008803, 96193009704

$3.99

$

In Stock, only 1 left!

0

13

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

Note: For 96193009703, 96193009702, 96191008801

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 580831102

ARM.IDLER.SNOW.BLACK

Note: For 96191008800, 96193009701

$

$

Not available

40

000000000

Note: For all EXCEPT 96191008800, 96193009701

$

$

Not available

31

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 585335706

ENGINE.LCT.254CC.ALT.SNO

Note: LCT - PW2HK18750178E

$1025.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 4 left!

0

15

Husqvarna 587343701

BUSHING.BRAKE.ARM

Note: For 96193009704

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 580839405

FRAME.GEAR.CASE.ORANGE

$

$

Not available

38

000000000

Note: For all EXCEPT 96191008800, 96193009701

$

$

Not available

19

Husqvarna 501818201

LOW CRANK IMPELLER BELT

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580831104

BRACKET ARM.IDLER.IMPELLER ARM
(Superseded to 580831106)

Note: For 96193009703, 96193009702, 96191008801, 96193009701

$9.49

$

In Stock, only 1 left!

0

16

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: For 96191008803, 96193009704, 96191008802

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 583940502

BRACKET.FRAME.SUPPORT.BLACK

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581623702

BRACKET.BELT.KEEPER.004.BZP

Note: For 96191008800, 96193009701

$

$

Not available

7

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 593337201

SCREW HEXAGON HEAD WITH COLLAR

Note: For 96191008803

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 817060408

SCREW

Note: For 96191008802

$5.99

$

In Stock, only 2 left!

0

Husqvarna 585335704

ENGINE.LCT.254CC.STORMFOR.ALT

Note: For 96191008803, 96191008802, 96191008801, 96191008800, LCT - PW2HK18750178Y

$970.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584216102

BELT.DRIVE.SNOW.DUAL

$17.99

$

In Stock, Qty 11

0

1

Husqvarna 588492802

BELT KEEPER BRACKET

Note: For all EXCEPT 96191008800, 96193009701

$6.99

$

In Stock, only 1 left!

0

40

Husqvarna 532423062

PALNUT 1/4

Note: For 96191008800, 96193009701

$4.99

$

In Stock, only 4 left!

0

38

Husqvarna 585691101

SCREW HEX WASH THDRL BLK 1_4-

Note: For 96191008800, 96193009701

$3.49

$

In Stock, only 4 left!

0

11

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 587105401

COVER BELT ASM. LOW CRANK
(Superseded to 581049901)

Note: For all EXCEPT 96191008800, 96193009701

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 585217501

SCREW HEX_SERR_HD_5_16-18X1.0
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0
