ST 227 - Husqvarna 27" Snow Blower CHASSIS, ENGINE & PULLEYS Parts Diagram

27" Snow Blower

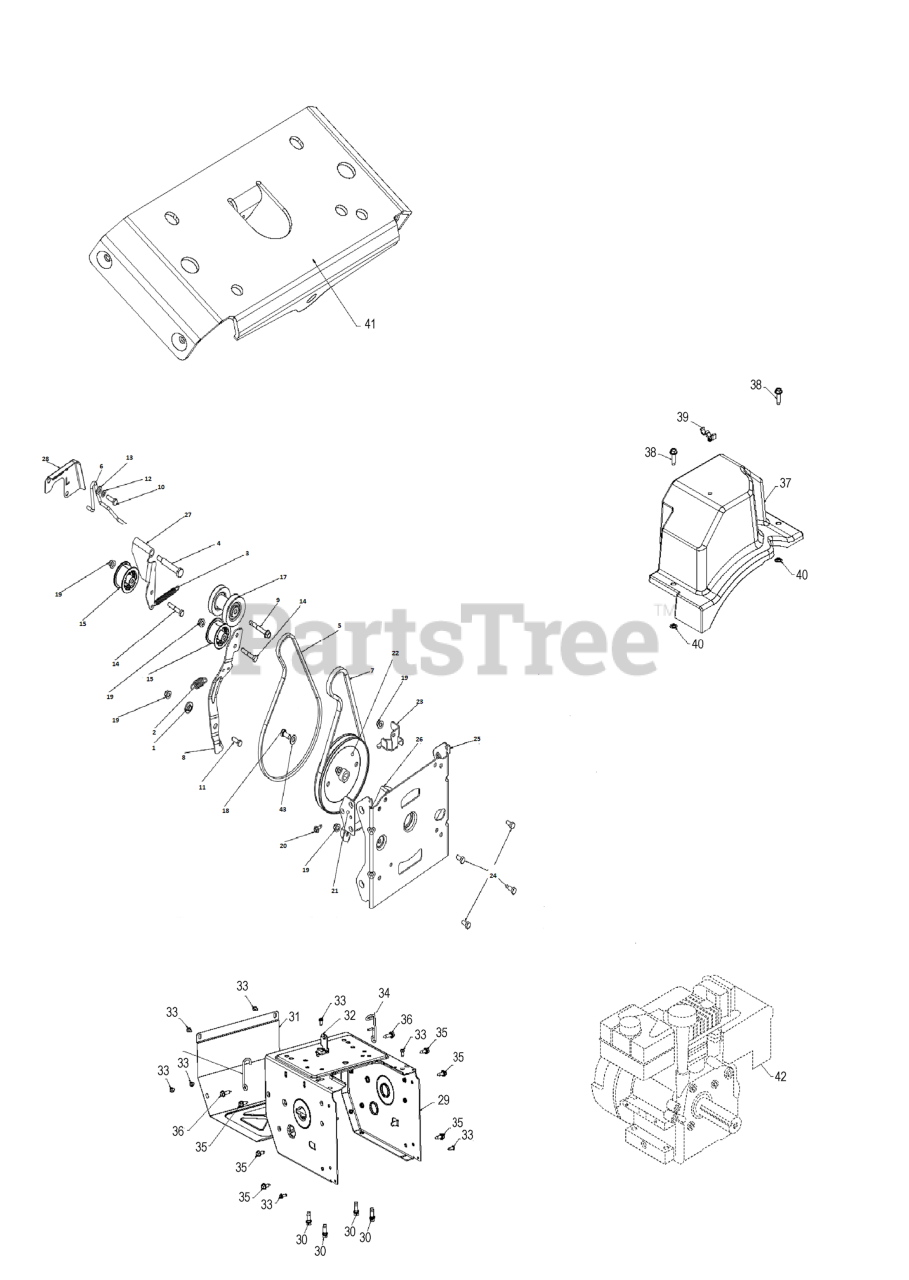

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title

19

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

31

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$56.99

$

Usually ships in 3-10 days

0

34

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

23

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 585335706

ENGINE.LCT.254CC.ALT.SNO

Note: For 970468901 (See LCT Engines IPL for service parts)

$1025.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581141402

PULLEYIDLER.2.0.W/SPACER.CZ

$11.99

$

In Stock, Qty 8

0

24

Husqvarna 596031601

Screws

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 598644401

Belt Keepers

$

$

Not available

13

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 590699201

PULLEY IMPELLER DD 4L
(Superseded to 536862701)

$31.99

$

Usually ships in 3-10 days

0

28

Husqvarna 598711902

Cranks

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582640701

Belts

$6.99

$

In Stock, only 1 left!

0

39

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

Note: For 970528701,970528702

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 598610602

NEEDS DESCRIPTION

Note: For 970528701 (See Husqvarna Engines IPL For Service Parts)

$

$

Not available

29

Husqvarna 589264705

FRAME MS 668

$113.99

$

Usually ships in 3-10 days

0

41

Husqvarna 583940502

BRACKET.FRAME.SUPPORT.BLACK

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 536862701

PULLEYS

Note: For 970528701,970528702

$31.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

Note: For 970528701,970528702

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596958903

ENGINES

Note: For 970469001 (See LCT Engines IPL for service parts)

$1698.99

$

Usually ships in 3-10 days

0

33

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 74760612

Bolt, Hex Head 3/8-16 x 3/4
(Superseded to 874760612)

Note: For 970528701,970528702

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 13

0

25

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 593337201

SCREW HEXAGON HEAD WITH COLLAR

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 598758701

BOLTS

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

40

Husqvarna 532423062

PALNUT 1/4

Note: PALNUT 1/4 IN

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 501818201

LOW CRANK IMPELLER BELT

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, only 1 left!

0

17

Husqvarna 598815602

PULLEY 4L GEAR - LC

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 593192502

ARM DRIVE IDLER CLEAR ZINC PLA

$11.99

$

In Stock, only 1 left!

0

37

Husqvarna 587105401

COVER BELT ASM. LOW CRANK
(Superseded to 581049901)

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 598610603

ENGINE RATO 252CC (CARB)

Note: For 97052870200 (See Husqvarna Engines IPL for service parts)

$626.99

$

Usually ships in 3-10 days

0

38

Husqvarna 585691101

SCREW HEX WASH THDRL BLK 1_4-

Note: BOLT HEX WSH THDRL 1/4-20X1

$3.49

$

In Stock, only 4 left!

0
