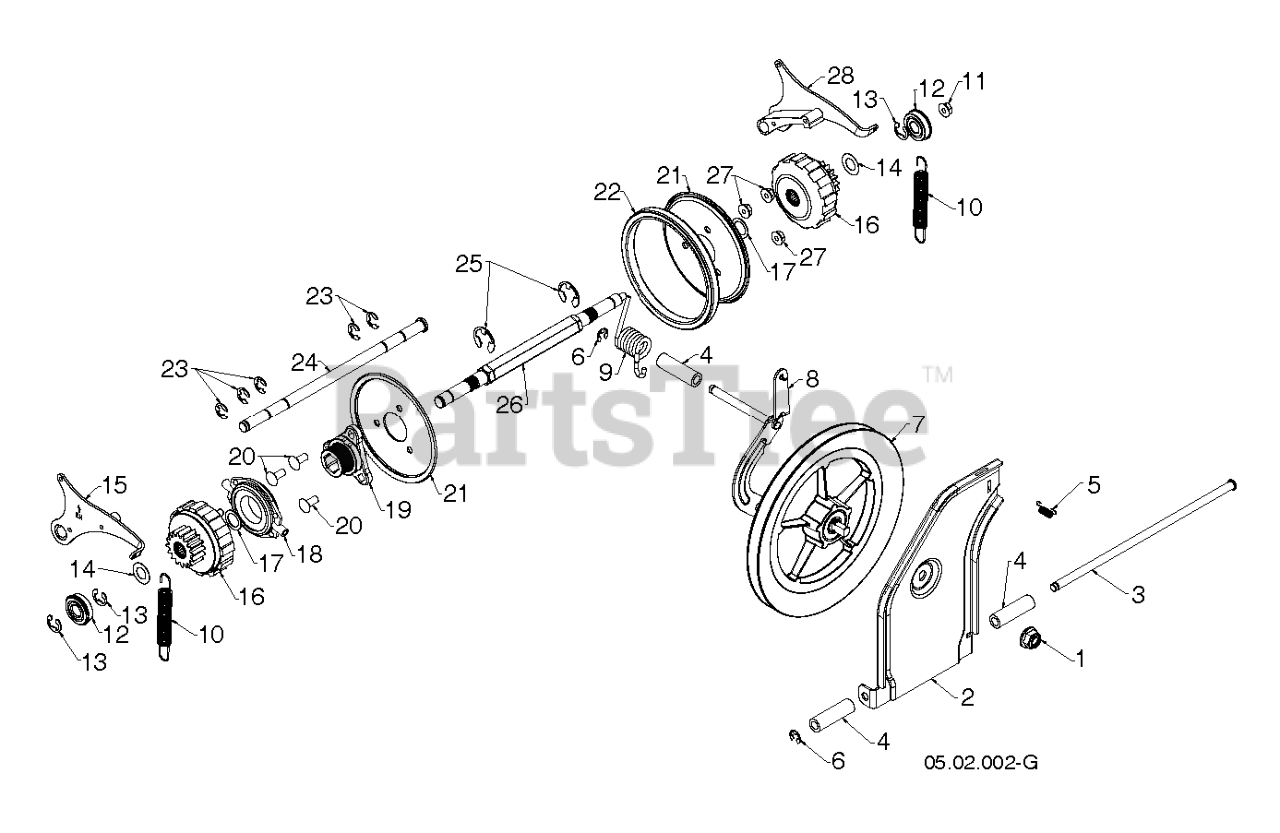

ST 224 P (961930122-04) - Husqvarna 24" Snow Blower (2019-03) DRIVE Parts Diagram

24" Snow Blower

DRIVE Parts Diagram

  • Title
1

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 587703402

PLATE.SWING.FRICTION PULLEY.47

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna 581123002

ROD ROD,PIVOT, SWING PLATE ROD

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532193885

SPRING LATCH

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 585841101

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 581328401

PULLEY.FRICTION.DISC.COMBO

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587193403

BRACKET.YOKE.ASSEMBLY.479

$4.99

$

In Stock, Qty 9

0

9

Husqvarna 581315301

SPRING TORSION DRIVE

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 585263801

SPRING EXTENSION PS

$5.99

$

In Stock, only 3 left!

0

11

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 580756201

BEARING 9/16 ID. SNR

$7.49

$

In Stock, Qty 7

0

13

Husqvarna 580756102

RING.RETAINING.1622-2RSNR.CLER

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 580751301

WASHER FLAT.637IDX1.00ODX21GA

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 580756601

PAWL.ASM.RH.SNOW

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580756001

GEAR.ASM.PLANETARY

$80.99

$

Usually ships in 3-10 days

0

17

Husqvarna 580756301

WASHER FLAT.59IDX1.065ODX25GA

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 597412801

BEARING HOUSING ASSY TRUNNION

$34.99

$

In Stock, only 1 left!

0

19

Husqvarna 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

20

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 581091002

PLATE.RUBBER.WHEEL.BLACK

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 581091101

RING RUBBER
(Superseded to 597362801)

$13.99

$

In Stock, Qty 8

0

23

Husqvarna 586644301

CLIP E-RING_.500 SHAFT

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 580755101

ROD ROD, PAWL ROD

$10.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 580752401

SHAFT SHAFT, PWR STR SHAFT

$62.99

$

In Stock, only 1 left!

0

27

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 580756701

PAWL.ASM.LH.SNOW

$21.99

$

Usually ships in 3-10 days

0
