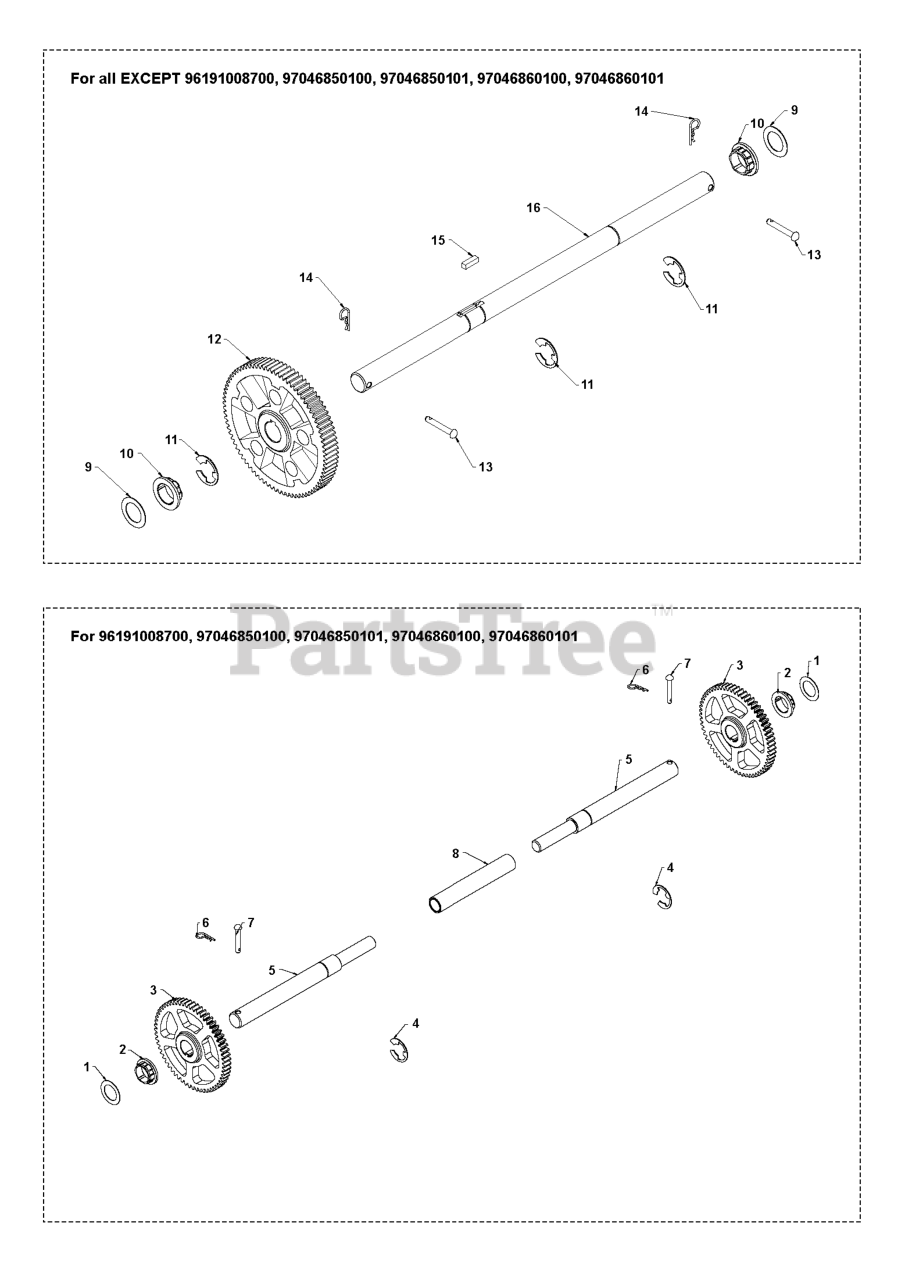

ST 224 - Husqvarna 24" Snow Blower DRIVE Parts Diagram

24" Snow Blower

DRIVE Parts Diagram

  • Title

4

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532444949

WASHER 1.00

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 581122301

BUSHING,HEX BUSHING (1
(Superseded to 587978901)

Note: For 96193009601

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 581122001

SHAFT SHAFT,AXLE,

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588518601

GEAR.59T

Note: For 97046850100, 97046850101, 97046860100, 97046860101

$79.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588518702

GEAR.80T.DRIVEN.2PC

Note: For all EXCEPT 96191008700, 96193009601, 97046850100, 97046850101, 97046860100, 97046860101

$85.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

6

Husqvarna 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

5

Husqvarna 580752601

AXLE AXLE, SPLIT SHAFT

$26.99

$

In Stock, only 2 left!

0

2

Husqvarna 581122301

BUSHING,HEX BUSHING (1
(Superseded to 587978901)

Note: For 96191008700

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 581122202

GEAR 80T DRIVEN_2PC

Note: For 96191008700

$91.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 587978901

BUSHING.HEX.1.SHAFT

Note: For all EXCEPT 96191008700, 96193009601, 97046850100, 97046850101, 97046860100, 97046860101

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 581122202

GEAR 80T DRIVEN_2PC

Note: For 96193009601

$91.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580752501

SLEEVE SLEEVE, AXLE SLEEVE

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 587978901

BUSHING.HEX.1.SHAFT

Note: For 97046850100, 97046850101, 97046860100, 97046860101

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 532444949

WASHER 1.00

$6.49

$

Usually ships in 3-10 days

0
