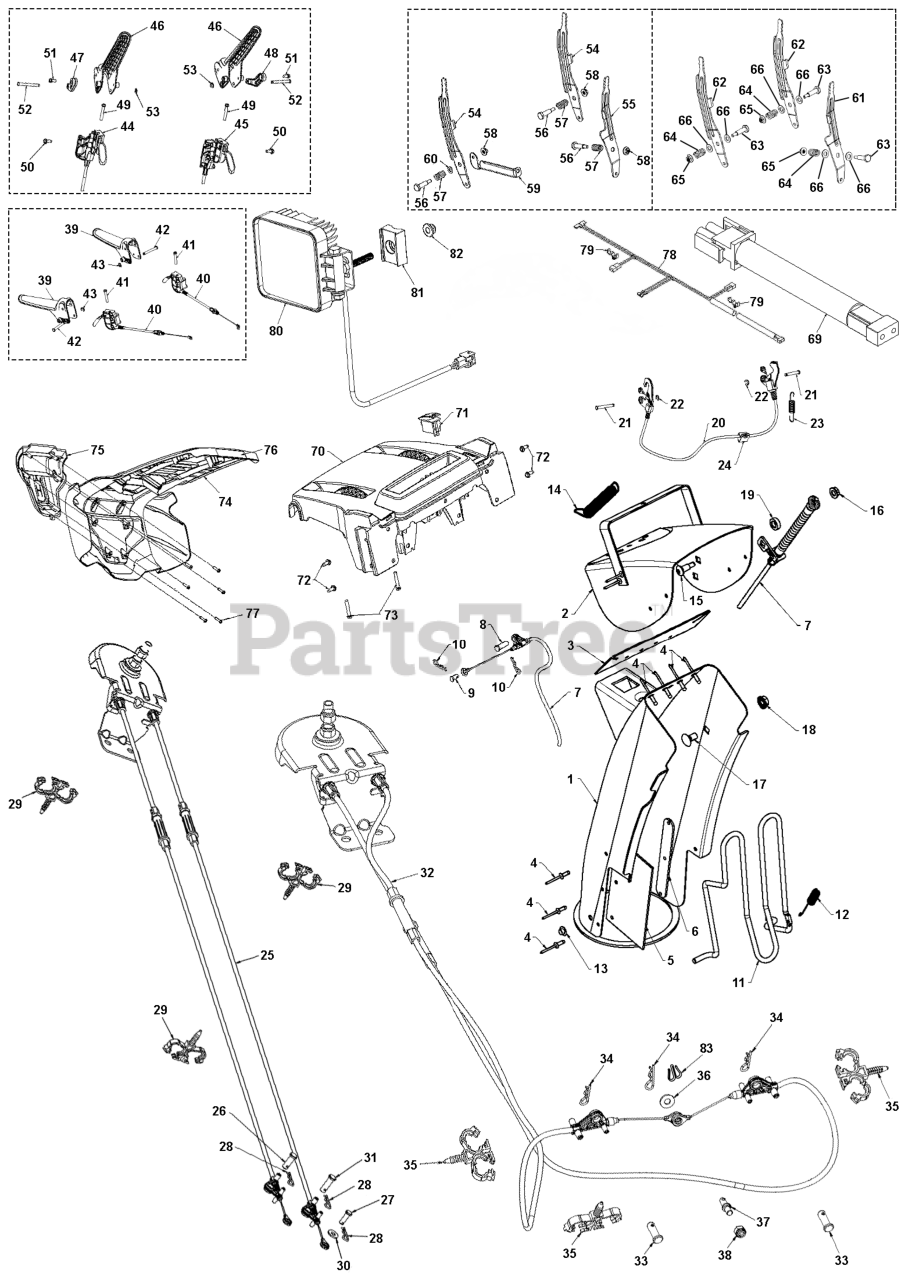

ST 224 - Husqvarna 24" Snow Blower CONTROL PANEL & DISCHARGE CHUTE 3 Parts Diagram

Husqvarna 532435582

Note: For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705

Husqvarna 817060410

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 582935201

Note: For 97046860100

Husqvarna 581329401

Husqvarna 817411308

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 590587001

Note: For 96193009604, 96191008703, 96191008704, 96193009605

Husqvarna 581329701

Note: For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605

Husqvarna 532128415

Note: For 96191008700, 96193009601

Husqvarna 587332502

Note: For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703

Husqvarna 587463001

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 587739602

Note: For 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605, 96191008705, 96193009606

Husqvarna 532420325

Note: For 96191008700, 96193009601

Husqvarna 581123902

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 585691501

Note: For 96191008700, 96193009601

Husqvarna 532431762

Note: For 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 585808301

Husqvarna 581680302

Note: For 96191008705, 96193009606

Husqvarna 598458701

Note: For 97046850100, 97046850101

Husqvarna 587739701

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 585690701

Note: For 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 585832001

Note: For 96193009602. INCLUDED IN BAG OF PARTS.

Husqvarna 587535701

Note: For 97046860100

Husqvarna 595086601

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 598450501

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532197991

Husqvarna 812000014

Note: For 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 581329601

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 587130803

Note: For 96191008705, 96193009606

Husqvarna 532423303

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581123902

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581329702

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581208201

Note: For 96191008700, 96193009602

Husqvarna 581241602

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581329401

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 587739702

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 598458701

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 97046850100, 97046850101, 97046860100

000000000

Note: For all EXCEPT 96191008700, 96193009601. DEFLECTOR.

Husqvarna 581680301

Note: For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605

Husqvarna 532163409

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532430324

Note: For 96191008700, 96193009601

Husqvarna 501417401

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 501417301

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602. INCLUDED IN BAG OF PARTS.

Husqvarna 585805001

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 585691401

Note: INCLUDED IN BAG OF PARTS

Husqvarna 583404901

Husqvarna 581208101

Note: For 96193009601, 96191008701

Husqvarna 812000014

Husqvarna 588263901

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532184113

Note: For 96191008700, 96193009601

Husqvarna 581151201

Husqvarna 532444041

Note: For 96191008700, 96193009601

Husqvarna 588147701

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 817060410

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 581329501

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 596786802

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 594944401

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 588077802

Note: For all EXCEPT 96191008700, 96193009601. INCLUDES KEY NUMBERS 1-6.

Husqvarna 586682101

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581329601

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 583473901

Note: For 97046860100

Husqvarna 586668901

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 587130801

Note: For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605

Husqvarna 532423303

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 585832001

Note: INCLUDED IN BAG OF PARTS

Husqvarna 593853401

Note: For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 584652201

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 877100812

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 586668901

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 590587002

Note: For 96191008705, 96193009606

Husqvarna 532145006

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 97046850100, 97046850101, 97046860100

Husqvarna 598803401

Note: For 97046850100, 97046850101, 97046860100, 97046860101

000000000

Note: For all EXCEPT 96191008700, 96193009601. SEAL.

Husqvarna 532421728

Note: For 96191008700, 96193009601

Husqvarna 586682101

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 586961501

Note: For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603

000000000

Note: For all EXCEPT 96191008700, 96193009601. RETAINER.

Husqvarna 532184505

Note: INCLUDED IN BAG OF PARTS

Husqvarna 581329501

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 598812001

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 584652201

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 581131212

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532179246

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 596029401

Husqvarna 585832201

Note: For 96191008700, 96193009601, 96191008701. INCLUDED IN BAG OF PARTS.

Husqvarna 596040501

Note: For all EXCEPT 96191008700, 96193009601

Husqvarna 812000014

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 598803701

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 587739601

Note: For 96191008702, 96193009603, 96193009604, 96191008703, 96191008704, 96193009605, 96191008705, 96193009606

Husqvarna 584468402

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532059349

Note: For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705, 97046860101

Husqvarna 588263902

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 587031301

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 599265401

Note: For 97046850100, 97046850101, 97046860100, 97046860101

000000000

Note: For all EXCEPT 96191008700, 96193009601. POP RIVET.

Husqvarna 581329702

Note: For 96191008705, 96193009606

000000000

Note: For all EXCEPT 96191008700, 96193009601. SHIELD.

Husqvarna 598803801

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 590439801

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 532431762

Note: For all EXCEPT 97046860100

Husqvarna 532435616

Note: For 96191008700, 96191008701, 96191008702, 96191008703, 96191008704, 96191008705, 97046860100, 97046860101

Husqvarna 581329401

Note: For 97046850100, 97046850101, 97046860100, 97046860101

Husqvarna 535332701

Note: Fits 97052860100, 97052860200

Husqvarna 587463001

Note: For 96191008700, 96193009601, 96191008701, 96193009602

Husqvarna 593622201

Note: For 97046860100, 97046860101
