ST 224 - Husqvarna 24" Snow Blower ACCESSORIES Parts Diagram

24" Snow Blower

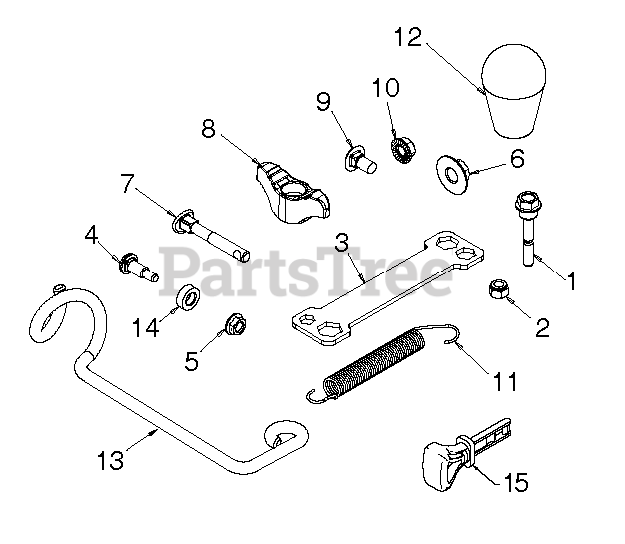

ACCESSORIES Parts Diagram

  • Title

3

Husqvarna 532429112

WRENCH.SNOWTHROWER.ZINC.YZ

Note: For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

$5.99

$

In Stock, Qty 8

0

4

Husqvarna 585832201

BOLT SHOULDER 1/4

Note: For 96191008700, 96193009601, 96191008701, 96193009602

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 581697501

KNOB.SOFT.TOUCH.SLOTTED.428

$10.99

$

In Stock, only 2 left!

0

14

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

Note: For all EXCEPT 96191008700, 96193009601, 96191008701, 96193009602

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$4.99

$

In Stock, Qty 5

0

15

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

In Stock, only 1 left!

0

2

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

Note: For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 588059901

BOLT.CARRIAGE.5/16-18 X 2.25

Note: For all EXCEPT 96191008700, 96193009601

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

Note: For 96191008700

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

Note: For 96191008700, 96193009601

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 532185577

HANDLE.KNOB.BLACK

$9.49

$

In Stock, Qty 18

0

13

Husqvarna 581897301

SUPPORT ROTATION CABLE

Note: For all EXCEPT 97046850100, 97046850101, 97046860100, 97046860101

$9.49

$

In Stock, only 1 left!

0

11

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 11

0

6

Husqvarna 585691001

NUT.HEX.FLANGE.LOCK BLK 3/8-16

$3.49

$

In Stock, only 1 left!

0

1

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

Note: For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

$5.99

$

In Stock, Qty 6

0

10

Husqvarna 596040501

Hardware

Note: For all EXCEPT 96191008700

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 588077502

BOLT SHEAR HX HD 1/4-20 CLEAR

Note: For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101

$5.99

$

In Stock, Qty 6

0

13

Husqvarna 596976801

Supports

Note: For 97046850100, 97046850101, 97046860100, 97046860101

$6.99

$

Usually ships in 3-10 days

0
