ST 224 (970468501-00) - Husqvarna 24" Snow Blower (2020-05) "CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

24" Snow Blower

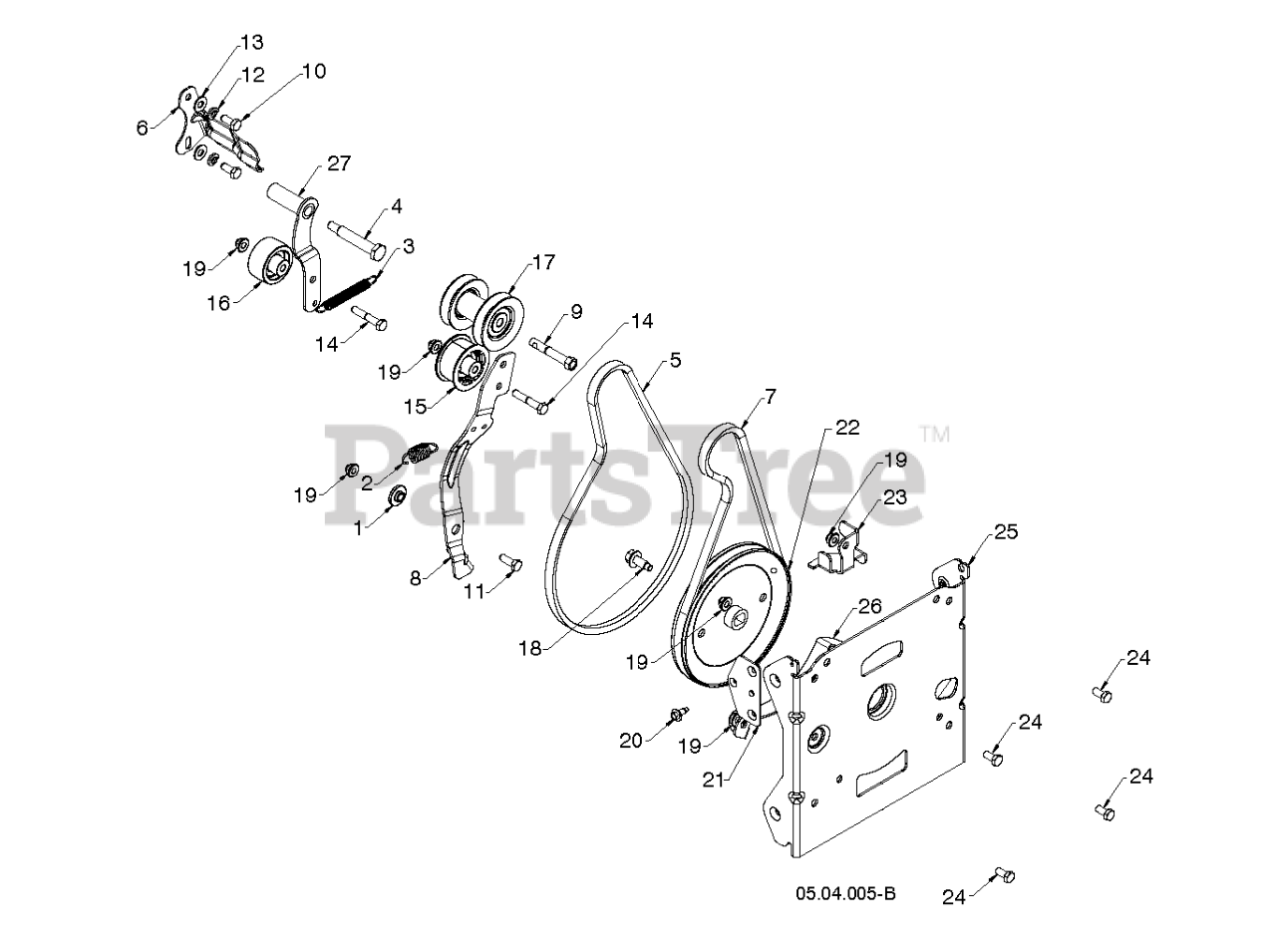

"CHASSIS, ENGINE & PULLEYS" 2 Parts Diagram

  • Title

14

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 9

0

26

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 501818201

LOW CRANK IMPELLER BELT

$22.99

$

In Stock, Qty 20+

0

18

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, Qty 8

0

25

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

22

Husqvarna 590699201

PULLEY IMPELLER DD 4L
(Superseded to 536862701)

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

1

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 584216102

BELT.DRIVE.SNOW.DUAL

$22.99

$

In Stock, Qty 20+

0

10

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, Qty 9

0

17

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$34.99

$

In Stock, only 3 left!

0

19

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

23

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$11.99

$

In Stock, Qty 7

0

11

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, Qty 9

0

24

Husqvarna 596031601

Screws

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, Qty 18

0

27

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$13.99

$

In Stock, only 1 left!

0

4

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, Qty 9

0

9

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, Qty 6

0

6

Husqvarna 588492802

BELT KEEPER BRACKET

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 586880202

PULLEY.IDLER.FLNGLESS.W/SPACER

$13.99

$

In Stock, only 3 left!

0

15

Husqvarna 586880202

PULLEY.IDLER.FLNGLESS.W/SPACER

$13.99

$

In Stock, only 3 left!

0

21

Husqvarna 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, Qty 9

0

12

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 4 left!

0
