ST 224 (961910087-05) - Husqvarna 24" Snow Blower (2019-03) DRIVE Parts Diagram

24" Snow Blower

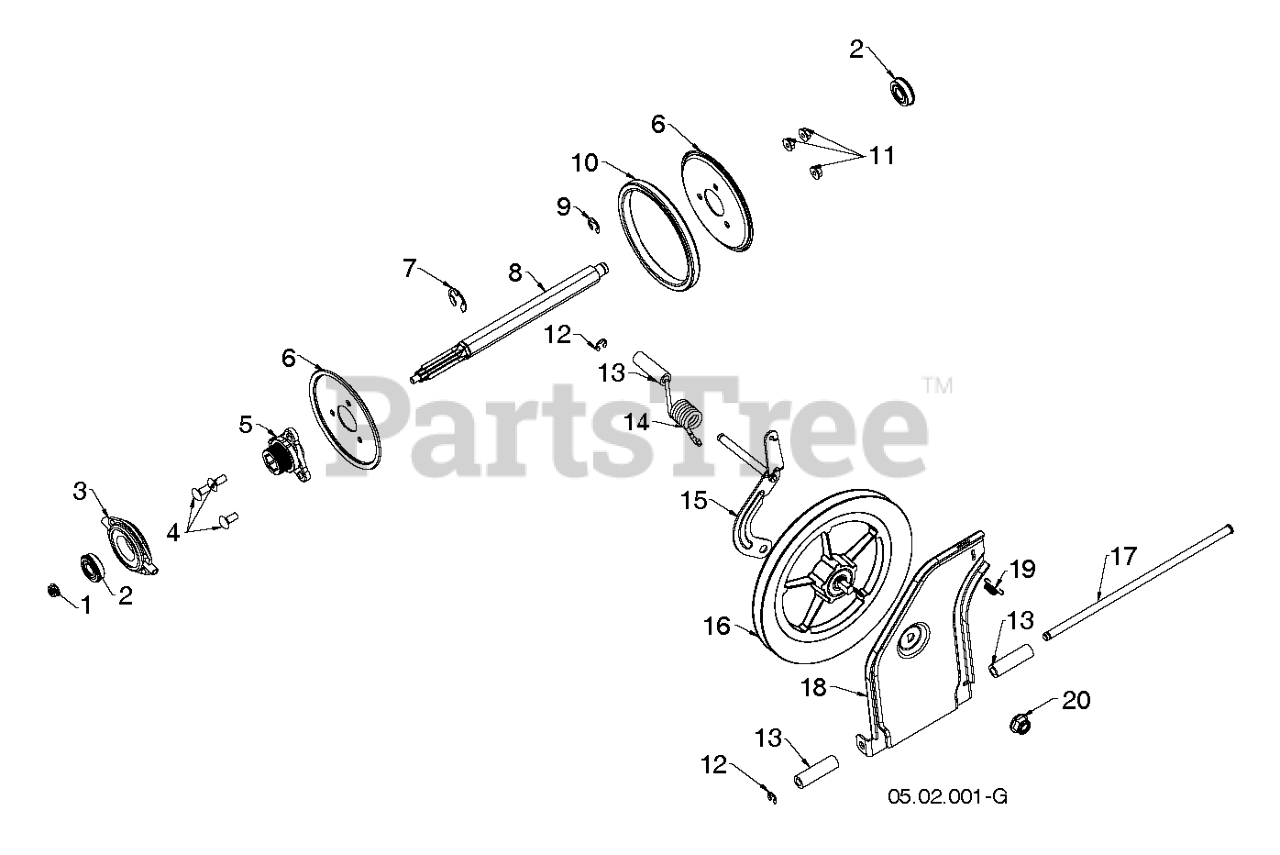

DRIVE Parts Diagram

  • Title

20

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

16

Husqvarna 581328401

PULLEY.FRICTION.DISC.COMBO

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 581123002

ROD ROD,PIVOT, SWING PLATE ROD

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

18

Husqvarna 587703402

PLATE.SWING.FRICTION PULLEY.47

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 580756201

BEARING 9/16 ID. SNR

$7.49

$

In Stock, Qty 7

0

7

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581121901

SHAFT SHAFT,7T REDUCTION

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587193403

BRACKET.YOKE.ASSEMBLY.479

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 581091101

RING RUBBER
(Superseded to 597362801)

$13.99

$

In Stock, Qty 8

0

6

Husqvarna 581091002

PLATE.RUBBER.WHEEL.BLACK

$12.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 532193885

SPRING LATCH

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 580756102

RING.RETAINING.1622-2RSNR.CLER

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 595841101

RETAINER RING E-RING CLEAR ZI

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 597412801

BEARING HOUSING ASSY TRUNNION

$34.99

$

In Stock, only 1 left!

0

14

Husqvarna 581315301

SPRING TORSION DRIVE

$4.99

$

Usually ships in 3-10 days

0
