ST 224 (961910087-02) - Husqvarna 24" Snow Blower (2016-04) AUGER HOUSING IMPELLER Parts Diagram

24" Snow Blower

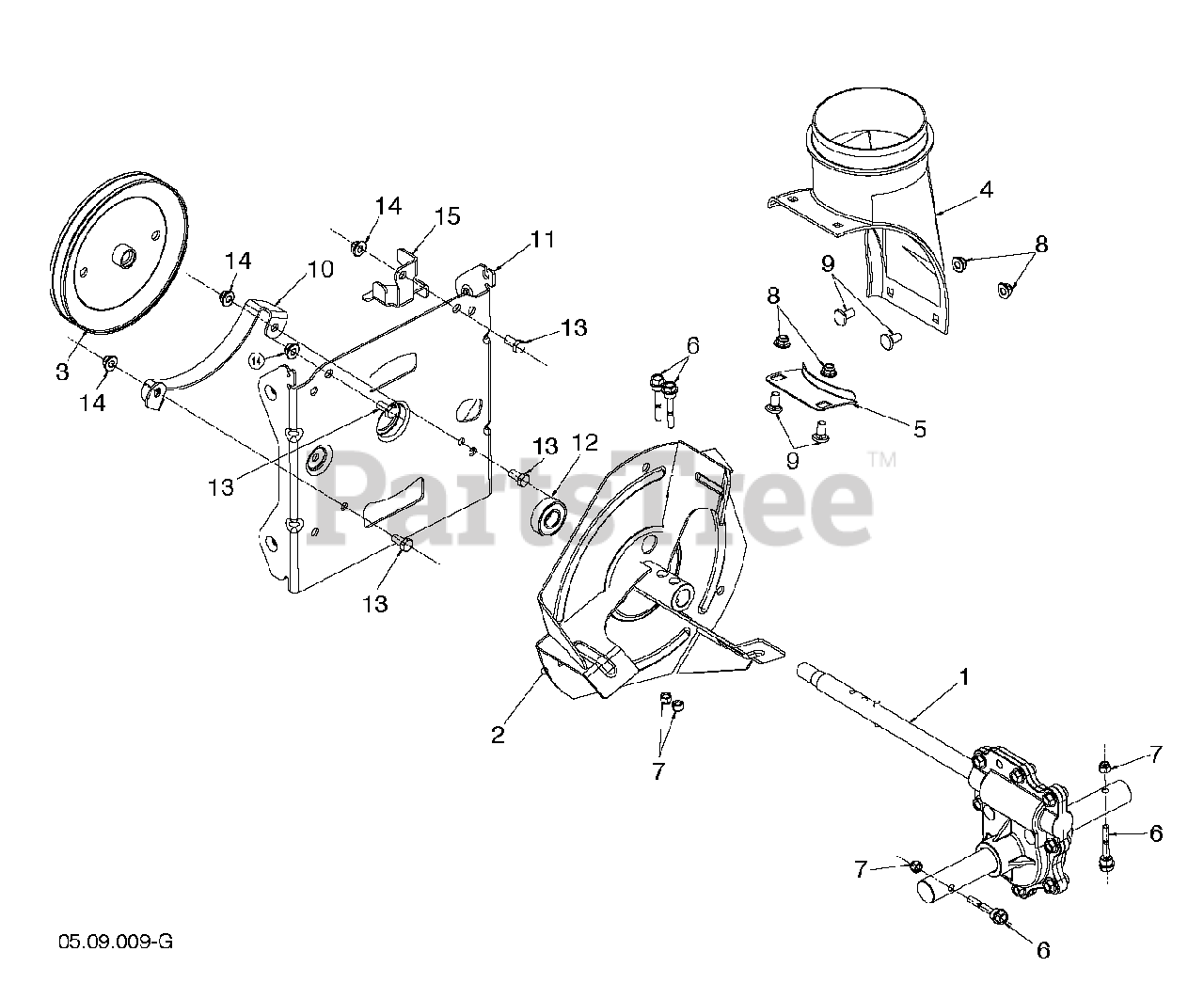

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Husqvarna 501149601

GEARBOX.AUGER.
(Superseded to 598831601)

$265.99

$

In Stock, only 4 left!

0

2

Husqvarna 586607202

IMPELLER.STEEL.SNOW.BLACK

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587402401

PULLEY SCREW ON 7.3 5/8

$28.99

$

In Stock, only 3 left!

0

4

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$11.99

$

In Stock, Qty 5

0

5

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 13

0

6

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 8

0

7

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532198791

BEARING

$18.99

$

In Stock, Qty 9

0

13

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

In Stock, only 2 left!

0
