ST 224 (961910087-00) - Husqvarna 24" Snow Blower (2014-06) DRIVE Parts Diagram

24" Snow Blower

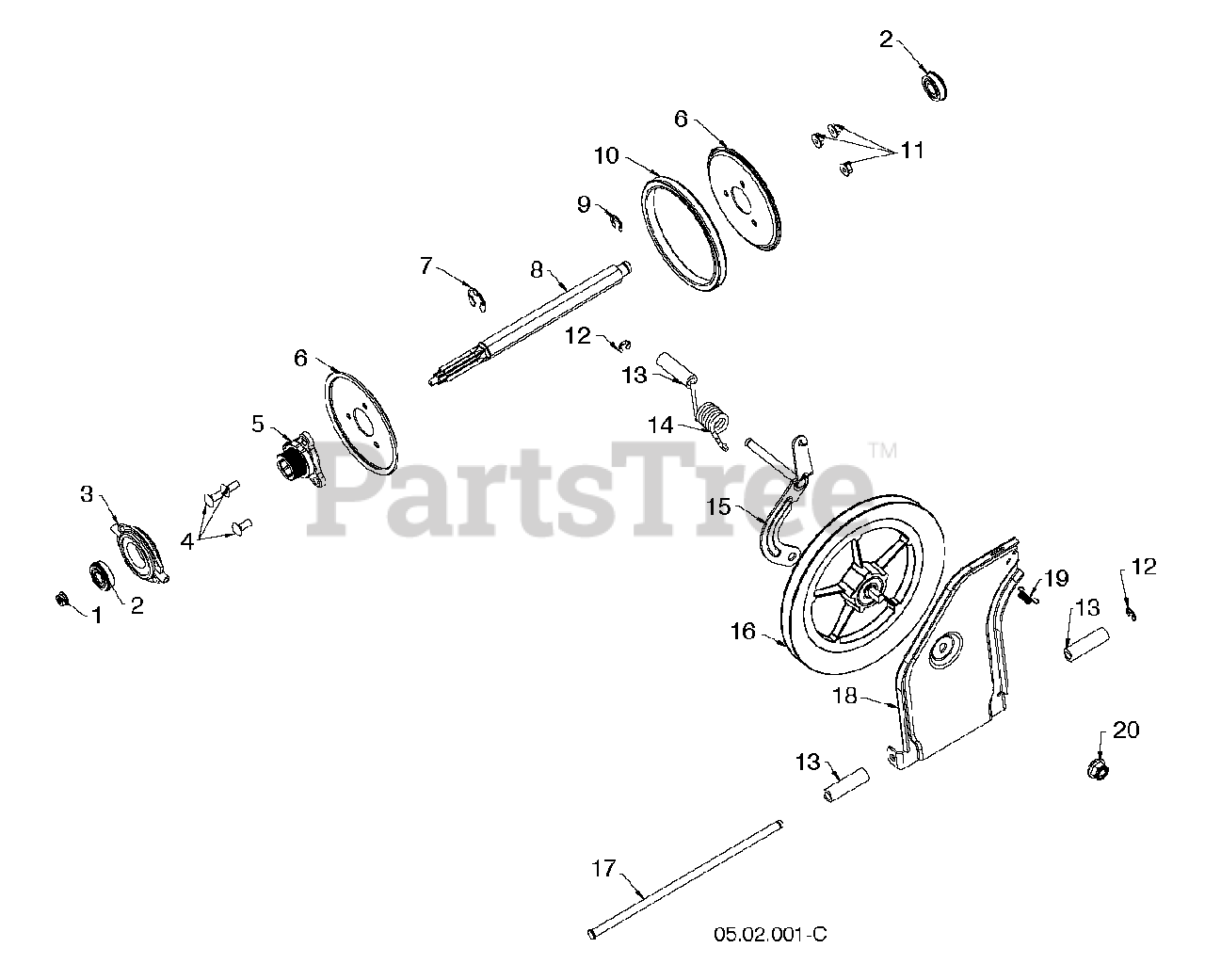

DRIVE Parts Diagram

  • Title

1

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 580756201

BEARING 9/16 ID. SNR

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 532175244

$

$

Currently unavailable

4

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

6

Husqvarna 581091002

PLATE.RUBBER.WHEEL.BLACK

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581121901

SHAFT SHAFT,7T REDUCTION

$62.99

$

In Stock, only 1 left!

0

9

Husqvarna 580756101

RING RING, RETAINING RING (996
(Superseded to 580756102)

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 581091101

RING RUBBER
(Superseded to 597362801)

$13.99

$

In Stock, Qty 20+

0

11

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 812000007

E-RING LT
(Superseded to 595841101)

$2.49

$

In Stock, only 2 left!

0

13

Husqvarna 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 581315301

SPRING TORSION DRIVE

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581454203

BRACKET YOKE WELDMENT_MS 479
(Superseded to 587193403)

$

$

Not available

16

Husqvarna 581328401

PULLEY.FRICTION.DISC.COMBO

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 581123001

ROD.TIP.PLATE
(Superseded to 581123002)

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 581446903

PLATE SWING FRICTION PULL_MS

$

$

Not available

19

Husqvarna 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0
