ST 2111 E (961910022-01) - Jonsered Snow Thrower (2007-10) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

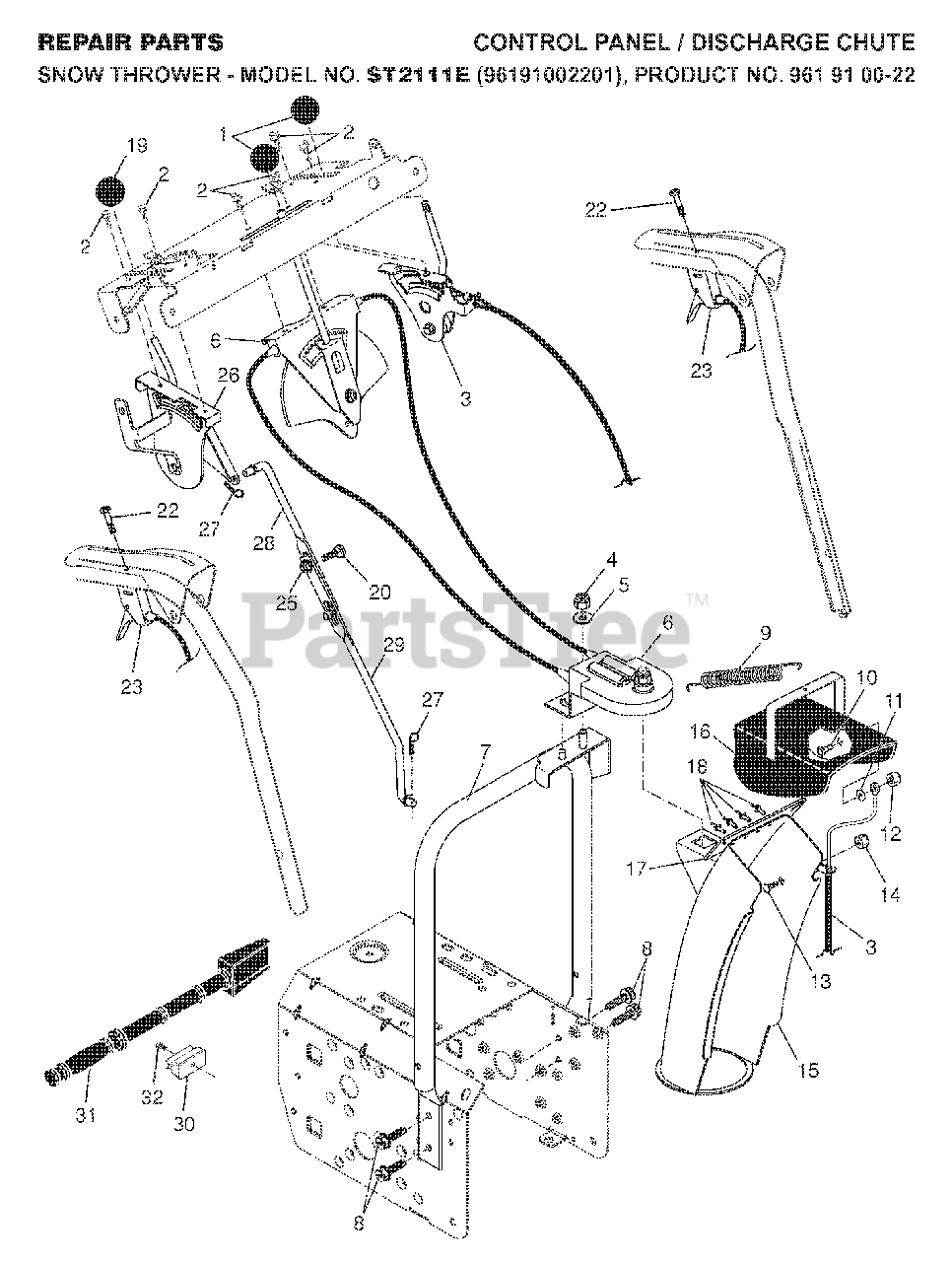

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Jonsered 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

2

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Jonsered 532198475

CONTROL.CABLE.DEFLECTOR
(Superseded to 532420673)

$80.99

$

In Stock, Qty 5

0

4

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

6

Jonsered 532404974

CONTROL ASSEMBLY,CHUTE ROTATER
(Superseded to 532428272)

$

$

Not available

7

Jonsered 532407643

SUPPORT, PIVOT
(Superseded to 532405784)

$

$

Not available

8

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Jonsered 532184505

SPRING

$7.99

$

In Stock, Qty 15

0

10

Jonsered 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 11

0

11

Jonsered 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 12

0

12

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

13

Jonsered 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

15

Jonsered 532407833

No Description Available

$

$

Not available

16

Jonsered 532184534

No Description Available
(Superseded to 588077804)

$

$

Not available

17

Jonsered 532179145

SEAL, DEFLECTOR
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 532414281

RED KNOB SHIFTER

$22.99

$

In Stock, only 1 left!

0

20

Jonsered 872270506

No Description Available
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0

22

Jonsered 874041024

SCREW

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 532188303

STEERING.CONTROL.SNOW THROWER

$40.99

$

Usually ships in 3-10 days

0

25

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 532198474

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

27

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

28

Jonsered 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, Qty 5

0

29

Jonsered 532187716

ROD, LOWER SPEED CONTROL

$

$

Not available

30

Jonsered 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

32

Jonsered 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0
