ST 2111 E (961910014-02) - Jonsered Snow Thrower (2007-01) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

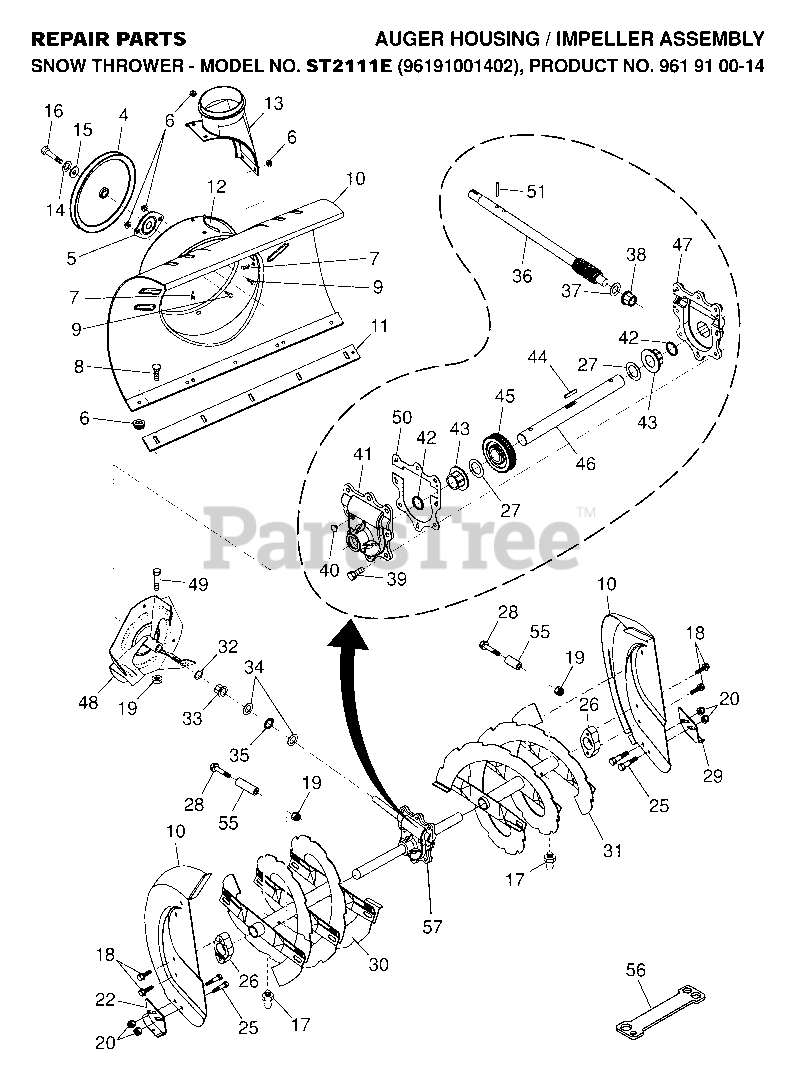

AUGER HOUSING IMPELLER Parts Diagram

  • Title
4

Jonsered 532191079

PULLEY, IMPELLER
(Superseded to 191079)

$

$

Not available

5

Jonsered 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0

6

Jonsered 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

8

Jonsered 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

$7.99

$

In Stock, only 1 left!

0

10

Jonsered 532408270

No Description Available
(Superseded to 584381601)

$

$

Not available

11

Jonsered 532407645

BAR, SCRAPER
(Superseded to 532404933)

$24.99

$

In Stock, only 4 left!

0

12

Jonsered 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 532178675)

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 532175322

BASE DISCHARGE CHUTE
(Superseded to 532442438)

$11.99

$

In Stock, only 3 left!

0

14

Jonsered 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

15

Jonsered 532198552

WASHER, LOCK 5/16

$7.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

17

Jonsered 532405637

GREASE FITTING

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 532179582

SCREW, HEX HD 5/16X1

$7.49

$

In Stock, only 3 left!

0

19

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 532184094

SKID PLATE RH
(Superseded to 532436125)

$

$

Not available

25

Jonsered 872270506

No Description Available
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

26

Jonsered 532174658

BEARING, AUGER
(Superseded to 532420478)

$9.99

$

In Stock, only 1 left!

0

27

Jonsered 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

28

Jonsered 532198636

BOLT, SHEAR
(Superseded to 532192090)

$5.99

$

In Stock, Qty 20+

0

29

Jonsered 532184093

SKID PLATE LH
(Superseded to 532174762)

$9.49

$

In Stock, only 2 left!

0

30

Jonsered 532407722

AUGER ASSEMBLY, RH
(Superseded to 532406024)

$159.99

$

In Stock, only 1 left!

0

31

Jonsered 532407723

AUGER ASSEMBLY, LH
(Superseded to 532406023)

$

$

Not available

32

$6.49

$

In Stock, only 2 left!

0

33

Jonsered 532407769

BUSHING, FLANGE 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

34

Jonsered 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

35

Jonsered 532174684

BEARING TRUST 3/4

$9.99

$

In Stock, only 2 left!

0

36

Jonsered 532174660

SHAFT, IMPELLER
(Superseded to 532407757)

$102.99

$

Usually ships in 3-10 days

0

37

Jonsered 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

38

Jonsered 532174686

BUSHING FLANGE 5/8
(Superseded to 174686)

$

$

Not available

39

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

40

$

$

Not available

41

Jonsered 532174688

HOUSING.GEARBOX.RH.SNOW

$

$

Not available

42

Jonsered 532174698

SEAL, OIL
(Superseded to 174698)

$

$

Not available

43

Jonsered 532174701

BUSHING FLANGE 1"

$

$

Not available

44

Jonsered 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

45

Jonsered 532174659

WORM GEAR
(Superseded to 532429659)

$279.99

$

Usually ships in 3-10 days

0

46

Jonsered 532174657

SHAFT, AUGER

$68.99

$

Usually ships in 3-10 days

0

47

Jonsered 532174687

LH GEARBOX HOUSING
(Superseded to 407765)

$

$

Not available

48

Jonsered 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

49

Jonsered 874780426

SCREW.HEX.HD1/4-20X

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 532175311

GASKET.AUGER.GEARBOX

$9.99

$

Usually ships in 3-10 days

0

51

Jonsered 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 7836M)

$

$

Not available

55

$7.49

$

In Stock, Qty 12

0

56

Jonsered 532180684

RP WRENCH, SNOWTHROWER
(Superseded to 532429112)

$4.99

$

In Stock, only 1 left!

0

58

Jonsered 532188170

BEARING RETAINER, PLASTIC

$

$

Not available
