ST 2111 E (961910014-00) - Jonsered Snow Thrower (2007-01) WHEELS TIRES Parts Diagram

Snow Thrower

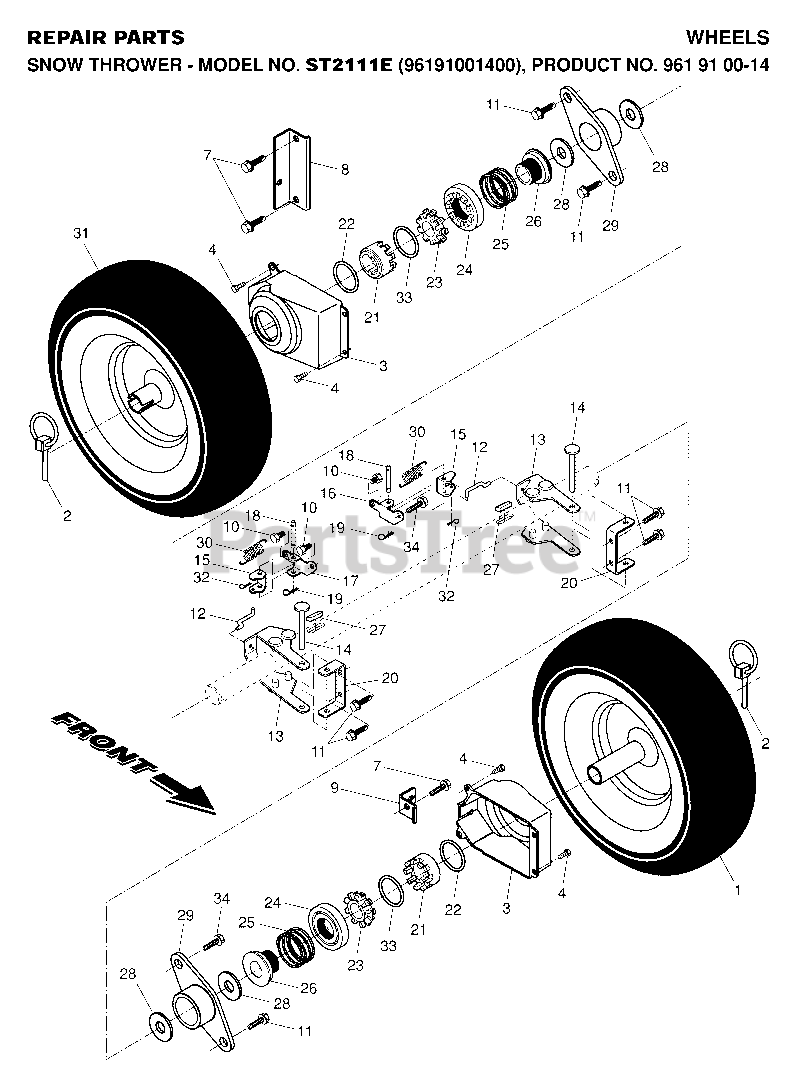

WHEELS TIRES Parts Diagram

  • Title
1

Jonsered 532199501

16 X 4.8 LH WHEEL GREY
(Superseded to 532436717)

$

$

Not available

2

Jonsered 532155443

PIN KLIK, 1/4

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 532405161

COVER, POWER STEERING

$10.99

$

In Stock, only 1 left!

0

4

Jonsered 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

8

Jonsered 532187859

BRACKET, STEERING CABLE RH
(Superseded to 532185603)

$12.99

$

In Stock, only 1 left!

0

9

Jonsered 532187858

BRACKET, STEERING CABLE LH
(Superseded to 532185602)

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532198584

SCREW, HEX HEAD 5/16-18 X 1/2

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 532406057

LINK, STEERING LEVER

$11.99

$

Usually ships in 3-10 days

0

13

Jonsered 532407837

STEERING YOKE
(Superseded to 532193506)

$21.99

$

Usually ships in 3-10 days

0

14

Jonsered 532182015

PIN, STEERING LEVER

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 532199518

BELLCRANK.STEER
(Superseded to 532194944)

$

$

Not available

16

Jonsered 532199512

CONTROL SHAFT
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532199511

BRKT.STEER.PIVOT.RH
(Superseded to 532194943)

$

$

Not available

18

Jonsered 532181847

PIN, STEERING BELLCRANK

$12.99

$

Usually ships in 3-10 days

0

19

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

20

Jonsered 532184197

BRACKET.STEER.PNT.BLACK

$

$

Not available

21

Jonsered 532192126

DRIVER WHEEL
(Superseded to 581645001)

$31.99

$

In Stock, only 1 left!

0

22

Jonsered 532182466

RING, WIRE RETAINER

$7.49

$

In Stock, Qty 5

0

23

Jonsered 532187622

LOBE WHEEL

$37.99

$

Usually ships in 3-10 days

0

24

Jonsered 532194941

SLIDE.CLUTCH
(Superseded to 581644901)

$44.99

$

In Stock, only 2 left!

0

25

Jonsered 532179139

SPRING, CLUTCH SLIDE

$6.49

$

In Stock, Qty 8

0

26

Jonsered 532194940

LOBE.AXLE
(Superseded to 581645101)

$

$

Not available

27

Jonsered 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

28

Jonsered 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

29

Jonsered 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

30

Jonsered 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

31

Jonsered 532199502

16 X 4.8 RH WHEEL
(Superseded to 532192093)

$

$

Not available

32

Jonsered 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 4 left!

0

$10.99

$

Usually ships in 3-10 days

0
