ST 2109 E (961910040-02) - Jonsered Snow Thrower (2011-05) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

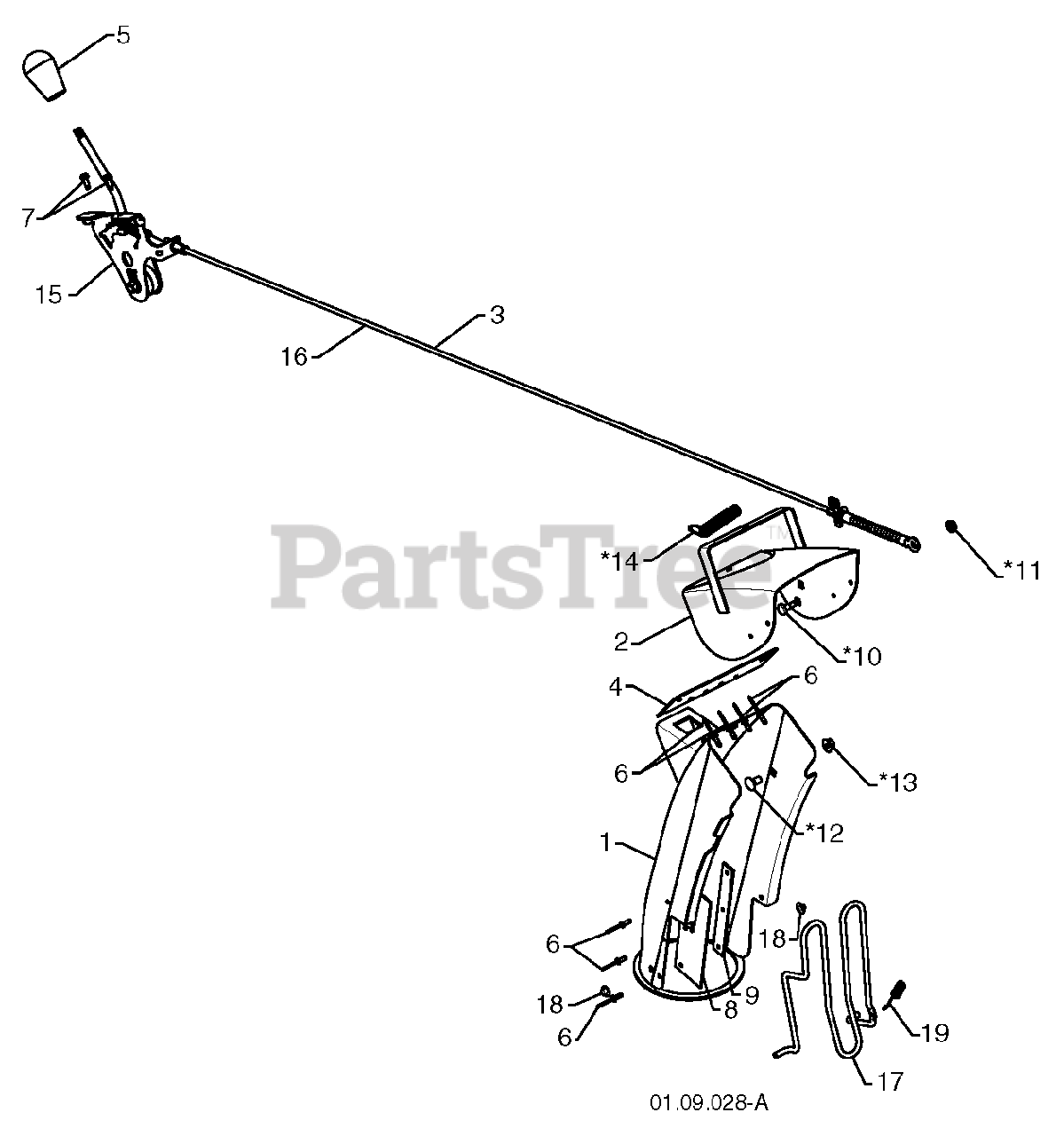

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Jonsered 532443680

No Description Available
(Superseded to 583764701)

$47.99

$

Usually ships in 3-10 days

0

2

Jonsered 532184534

No Description Available
(Superseded to 588077804)

$

$

Not available

3

Jonsered 532420673

CONTROL.ASM.DEFLECTOR
(Superseded to 585271701)

$80.99

$

In Stock, Qty 5

0

4

Jonsered 532420325

SEAL.DEFLECTOR

$7.49

$

Usually ships in 3-10 days

0

5

Jonsered 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

6

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

8

Jonsered 532430324

SHIELD.SNOW.CHUTE

$20.99

$

In Stock, only 4 left!

0

9

Jonsered 532419822

No Description Available

$

$

Not available

10

Jonsered 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 11

0

11

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

12

Jonsered 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

13

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

14

Jonsered 532184505

SPRING

$7.99

$

In Stock, Qty 15

0

15

Jonsered 532420679

CHUTE.DEFLECTOR.HEAD.SERVICE.
(Superseded to 587030801)

$80.99

$

In Stock, Qty 5

0

16

Jonsered 532420672

SERVICE.CHUTE.DEF.CBL.BLK
(Superseded to 587030901)

$80.99

$

Usually ships in 3-10 days

0

17

Jonsered 532435582

No Description Available

$21.99

$

Usually ships in 3-10 days

0

18

Jonsered 532059349

No Description Available

$

$

Not available

19

Jonsered 532435616

No Description Available

$4.99

$

Usually ships in 3-10 days

0
