ST 2109 E (961910040-00) - Jonsered Snow Thrower (2010-06) BELT GUARD PULLEY Parts Diagram

Snow Thrower

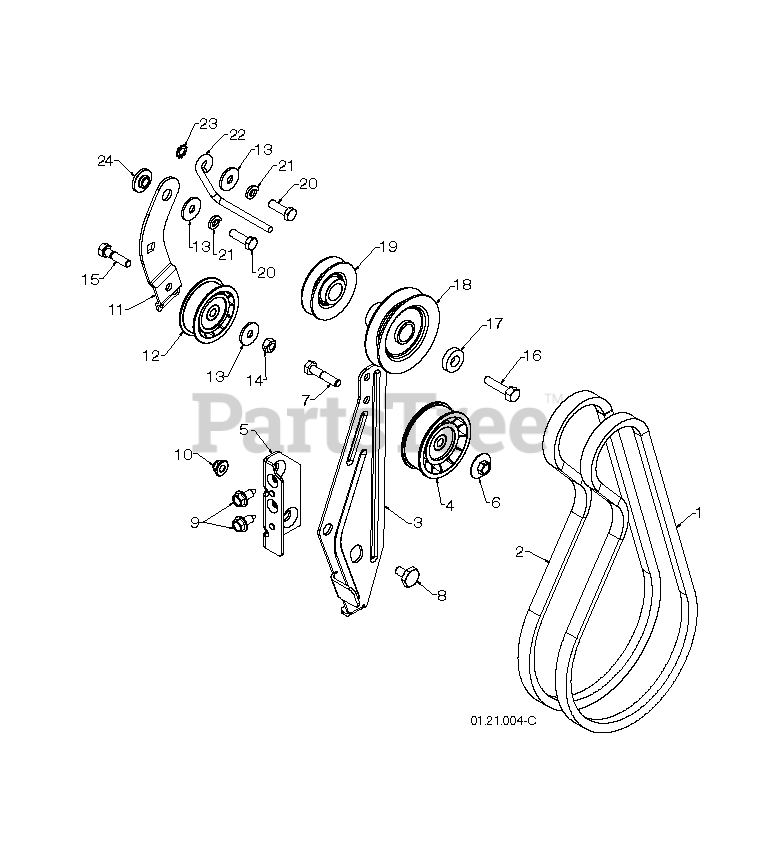

BELT GUARD PULLEY Parts Diagram

  • Title
1

Jonsered 532408019

BELT-V.IMPELLER.HS

$49.99

$

In Stock, only 1 left!

0

2

Jonsered 532419744

V-BELT.TRACTION

$34.99

$

In Stock, only 1 left!

0

3

Jonsered 532435802

RP ARM.IDLER.BRAKE
(Superseded to 532429271)

$

$

Not available

4

Jonsered 532430846

PULLEY.IDLER.W/SPACER.

$27.99

$

Usually ships in 3-10 days

0

5

Jonsered 532435801

RP BRACKET.IDLER
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

7

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

8

Jonsered 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

10

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

11

Jonsered 532187786

ARM, IDLER
(Superseded to 532192128)

$44.99

$

In Stock, only 2 left!

0

12

Jonsered 532180522

PULLEY.W/SPACER.2.25

$31.99

$

In Stock, only 2 left!

0

13

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

14

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

18

Jonsered 532426492

PULLEY.ENG.IMPELLER.

$

$

Not available

19

Jonsered 532426490

PULLEY.ENG.TRACTION

$15.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 4 left!

0

21

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

22

Jonsered 532155452

GUIDE BELT

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0
