ST 2109 E (961910040-00) - Jonsered Snow Thrower (2010-06) ASSEMBLY Parts Diagram

Snow Thrower

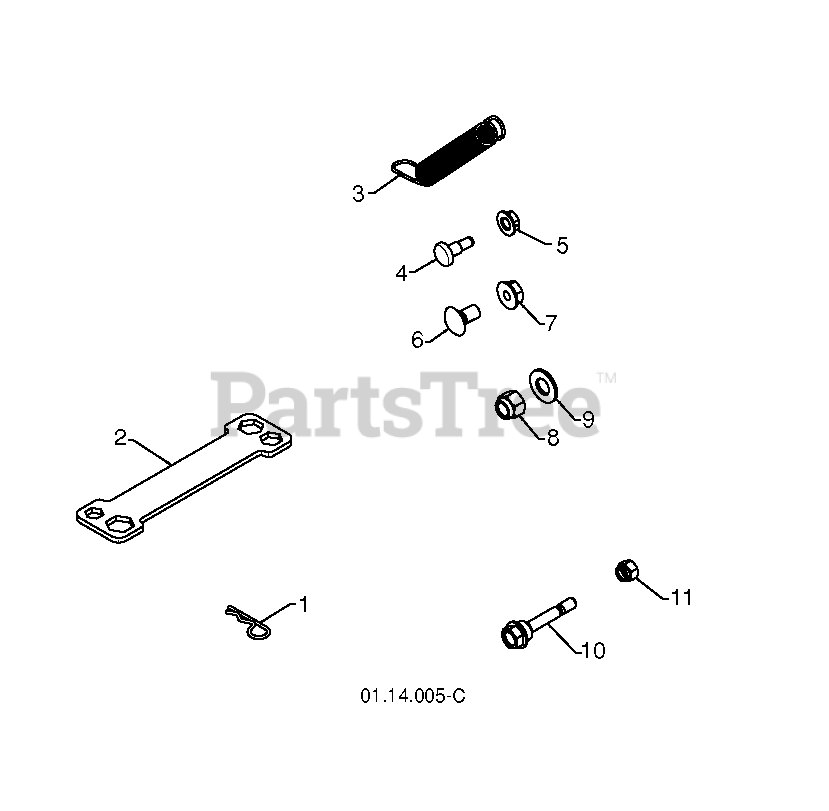

ASSEMBLY Parts Diagram

  • Title
1

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

2

Jonsered 532429112

WRENCH.SNOWTHROWER

$4.99

$

In Stock, only 1 left!

0

$7.99

$

In Stock, Qty 15

0

4

Jonsered 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 11

0

5

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

6

Jonsered 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

8

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 5

0

10

Jonsered 532192090

BOLT, SHOULDER SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 8

0

11

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0
