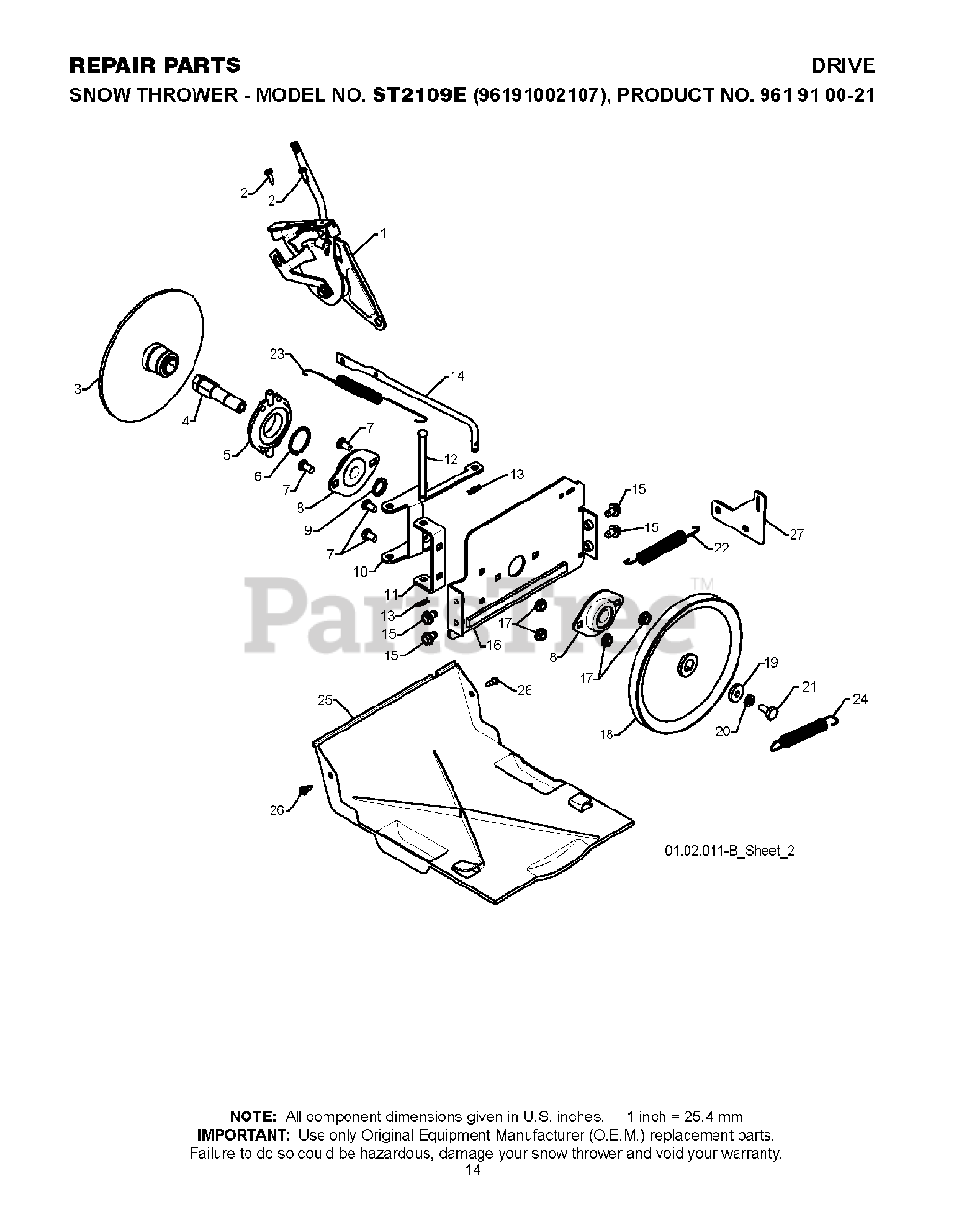

ST 2109 E (961910021-07) - Jonsered Snow Thrower (2009-08) DRIVE Parts Diagram

Snow Thrower

DRIVE Parts Diagram

  • Title

1

Jonsered 532198875

HEAD ASSY SPEED
(Superseded to 532198474)

$

$

Not available

2

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Jonsered 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

4

Jonsered 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

5

Jonsered 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

6

Jonsered 812000012

RETAINING RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

8

Jonsered 532188909

BEARING FLANGE

$28.99

$

In Stock, only 4 left!

0

9

Jonsered 532182504

SPACER, BEARING

$6.99

$

Usually ships in 3-10 days

0

10

Jonsered 532175350

LEVER.SHIFTER.PLATE.BLACK
(Superseded to 532184077)

$12.99

$

Usually ships in 3-10 days

0

11

Jonsered 532175349

BRACKET, SHIFTER SUPPORT
(Superseded to 532435784)

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

15

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

16

Jonsered 532175338

PLATE, DRIVE MOUNTING
(Superseded to 532184075)

$14.99

$

Usually ships in 3-10 days

0

17

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

19

Jonsered 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 874950512

SCREW

$4.99

$

In Stock, only 3 left!

0

22

Jonsered 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

23

Jonsered 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

24

Jonsered 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

25

Jonsered 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 2 left!

0

26

Jonsered 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

27

Jonsered 532413429

No Description Available

$

$

Not available
