ST 2109 E (961910021-04) - Jonsered Snow Thrower (2008-08) HANDLE Parts Diagram

Snow Thrower

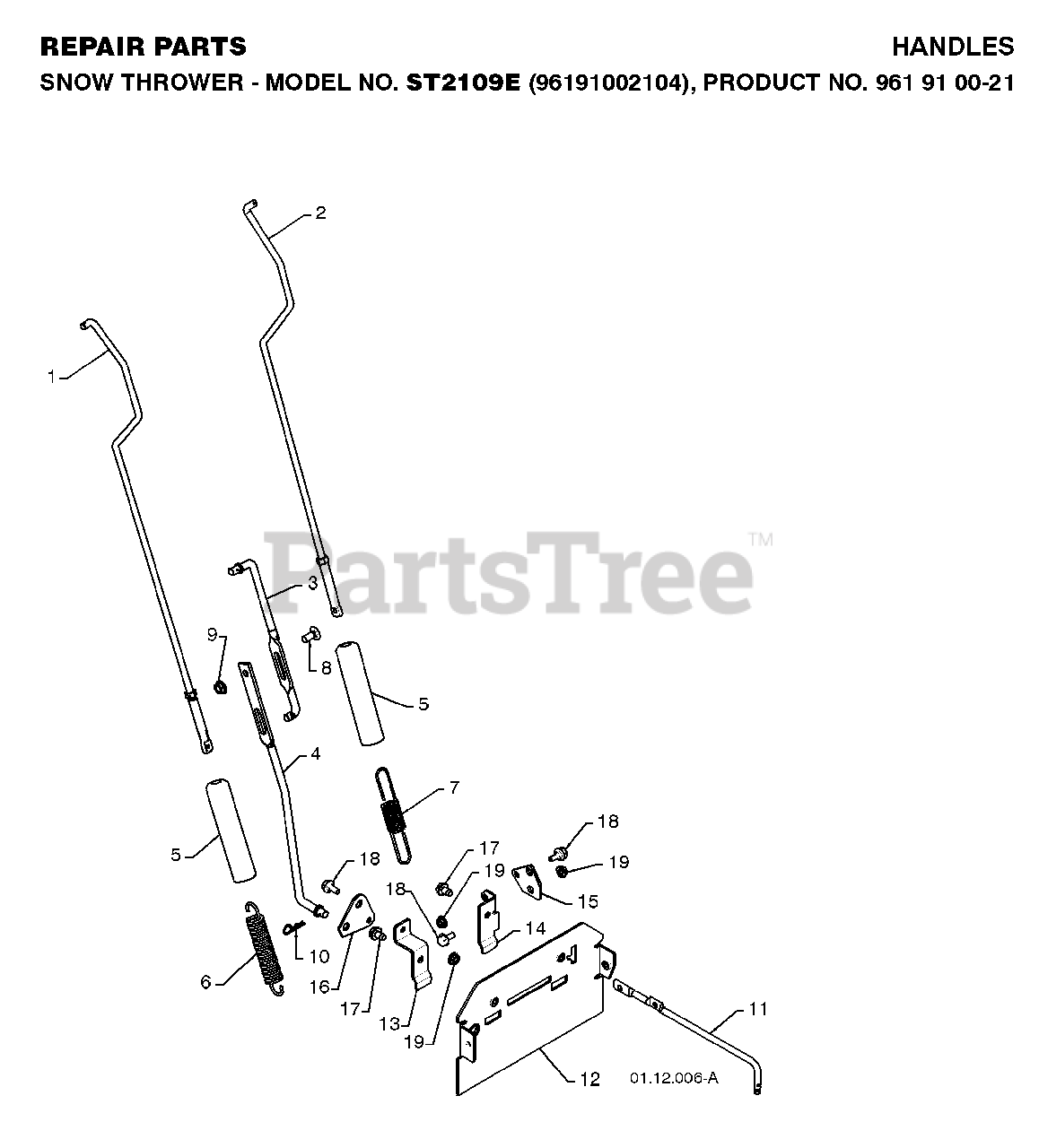

HANDLE Parts Diagram

  • Title
1

Jonsered 532180480

ROD.ASM.IMPELLER

$

$

Not available

2

Jonsered 532405740

ROD.ASM.TRACTION

$

$

Not available

3

Jonsered 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, Qty 5

0

4

Jonsered 532187716

ROD, LOWER SPEED CONTROL

$

$

Not available

5

Jonsered 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

6

Jonsered 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, Qty 5

0

7

Jonsered 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, Qty 7

0

8

Jonsered 872270506

No Description Available
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

9

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

11

Jonsered 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

12

Jonsered 532417539

No Description Available

$

$

Not available

13

Jonsered 532415433

BRACKET.SHIFTER.PLATE.BZP

$4.99

$

In Stock, only 1 left!

0

14

Jonsered 532416864

BRACKET.CLUTCH.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 532415435

PLATE.CLUTCH.BZP

$2.99

$

Usually ships in 3-10 days

0

16

Jonsered 532415450

PLATE.SHIFTER.BZP

$7.99

$

In Stock, only 3 left!

0

17

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
