Jonsered ST 2109 E (961910021-04) - Jonsered Snow Thrower (2008-08) DRIVE Parts Lookup with Diagrams

1

Jonsered 532198474

HEAD ASSY SPEED

(Superseded to 532429667) 

$

Not available 

2

Jonsered 817501010

SCREW #10-24 X 5/8

$

Not available 

3

Jonsered 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

4

Jonsered 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

5

Jonsered 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

6

Jonsered 812000012

RETAINING RING

(Superseded to 583607301) 

$6.49

$

Usually ships in 3-10 days

7

Jonsered 872270505

BOLT

(Superseded to 872110505) 

$3.99

$

In Stock, Qty 20+

8

Jonsered 532188909

BEARING FLANGE

$31.99

$

In Stock, Qty 15

9

Jonsered 532182504

SPACER, BEARING

$7.99

$

Usually ships in 3-10 days

10

Jonsered 532184077

LEVER.SHIFTER.PLATE.BLACK

$13.99

$

Usually ships in 3-10 days

11

Jonsered 532184076

BRACKET, SHIFTER SUPPORT

(Superseded to 532175349) 

$4.99

$

Usually ships in 3-10 days

12

Jonsered 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

13

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

14

Jonsered 817490408

SCREW

(Superseded to 874780408) 

$1.49

$

Usually ships in 3-10 days

15

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

16

Jonsered 532184075

PLATE.DRIVE.MOUNTING.BLACK

$

Not available 

17

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

18

Jonsered 532191080

PULLEY.TRACTION.7.75

$68.99

$

Usually ships in 3-10 days

19

Jonsered 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

20

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

21

Jonsered 874950512

SCREW

$4.99

$

In Stock, only 2 left!

22

Jonsered 532419925

ARM.IDLER.BRAKE

(Superseded to 532422111) 

$

Not available 

23

Jonsered 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

24

Jonsered 532184074

BRACKET, IDLER PIVOT

(Superseded to 532184789) 

$102.99

$

Usually ships in 3-10 days

25

Jonsered 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 17

26

Jonsered 874780524

HEX BOLT

(Superseded to 596582201) 

$3.99

$

In Stock, Qty 12

27

Jonsered 532166785

LOCKNUT 5/16-18

(Superseded to 532426589) 

$6.49

$

In Stock, Qty 13

28

Jonsered 532181044

RP SPRING, TRACTION IDLER

(Superseded to 532414557) 

$6.99

$

In Stock, Qty 9

29

Jonsered 532179354

ARM, IDLER

(Superseded to 532422111) 

$

Not available 

30

Jonsered 532180522

PULLEY.W/SPACER.2.25

$31.99

$

In Stock, only 3 left!

31

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD

(Superseded to 874520520) 

$4.99

$

Usually ships in 3-10 days

32

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

33

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8

(Superseded to 532435345) 

$4.99

$

In Stock, Qty 20+

35

Jonsered 532850263

LOCKWASHER

(Superseded to 810040600) 

$1.99

$

Usually ships in 3-10 days

36

Jonsered 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

37

Jonsered 532180478

PULLEY, ENGINE TRACTION DRIVE

$27.99

$

Usually ships in 3-10 days

38

Jonsered 532409475

SPACER.ENGINE.PULLEY

$9.49

$

Usually ships in 3-10 days

39

Jonsered 532179095

SPRING.RETURN

$6.49

$

In Stock, only 2 left!

40

Jonsered 532155452

GUIDE BELT

$6.49

$

In Stock, Qty 10

41

Jonsered 874610516

SCREW

$4.99

$

In Stock, only 2 left!

42

Jonsered 532175331

BUSHING, IDLER PIVOT

(Superseded to 587343701) 

$6.99

$

In Stock, only 4 left!

43

Jonsered 811050500

WASHER EXT TOOTH LOCK 5/16

(Superseded to 810040500) 

$4.99

$

Usually ships in 3-10 days

44

Jonsered 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

45

Jonsered 532155415

WASHER.20X8.5

$4.99

$

Usually ships in 3-10 days

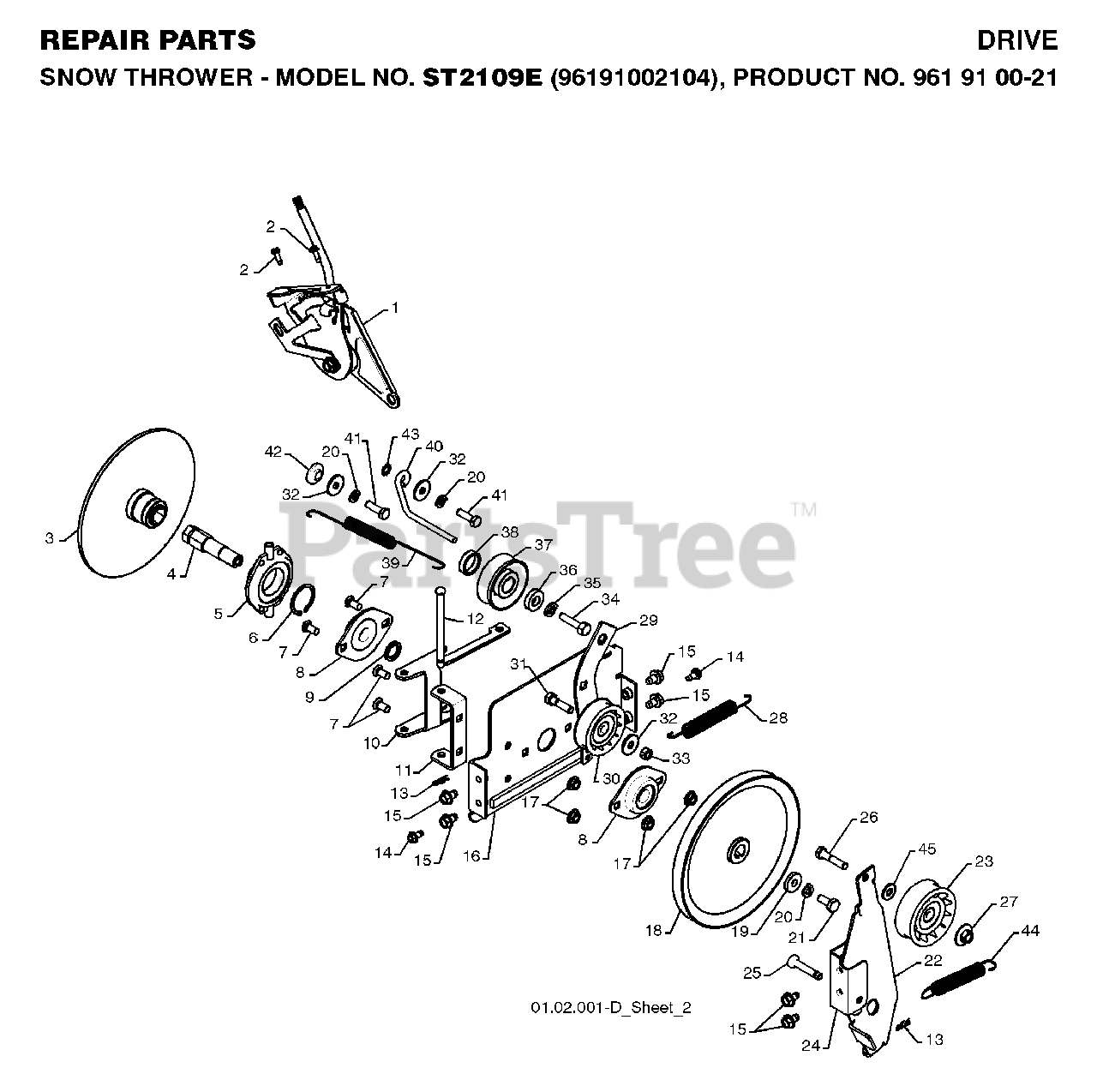

ST 2109 E (961910021-04) - Jonsered Snow Thrower (2008-08) DRIVE Parts Diagram

DRIVE Parts Diagram
