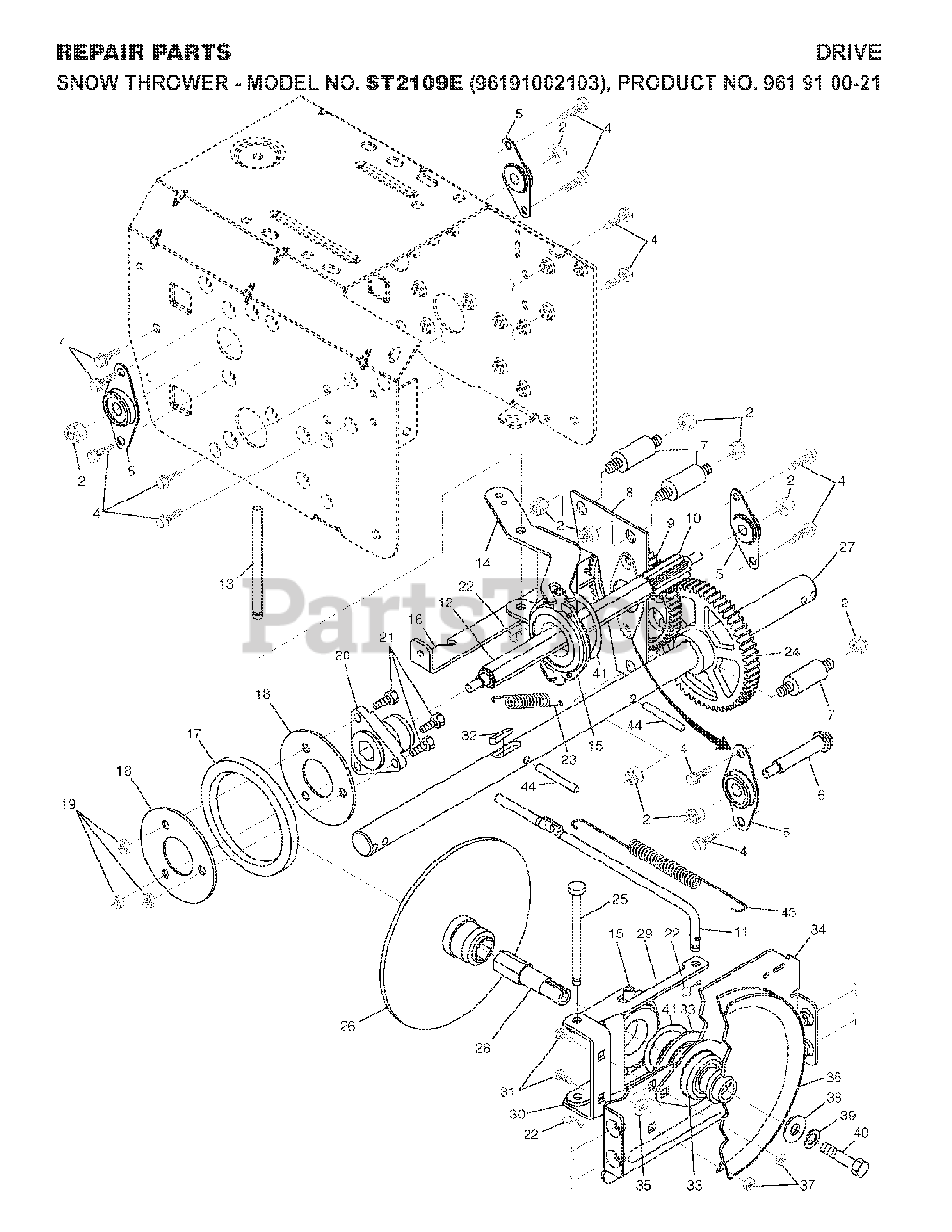

ST 2109 E (961910021-03) - Jonsered Snow Thrower (2007-10) DRIVE Parts Diagram

Snow Thrower

DRIVE Parts Diagram

  • Title
2

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

4

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532180017

BEARING, FLANGE

$26.99

$

Usually ships in 3-10 days

0

6

Jonsered 532180134

SHAFT, AUXILIARY

$

$

Not available

7

Jonsered 532179270

SPACER, PLATE

$11.99

$

Usually ships in 3-10 days

0

8

Jonsered 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

10

Jonsered 532180065

GEAR, PINION

$

$

Not available

11

Jonsered 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

12

Jonsered 532180066

SHAFT.HEX.LONG

$

$

Not available

13

Jonsered 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

14

Jonsered 532184080

LEVER, SPEED CONTROL

$

$

Not available

15

Jonsered 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

16

Jonsered 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532186951)

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$26.99

$

In Stock, only 1 left!

0

18

Jonsered 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532198176)

$

$

Not available

19

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

20

Jonsered 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 7

0

24

Jonsered 532180081

GEAR, AXLE (58T)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

25

Jonsered 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

27

Jonsered 532404307

SHAFT.AXLE.POWER.STEERING

$72.99

$

Usually ships in 3-10 days

0

28

Jonsered 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

29

Jonsered 532184077

LEVER.SHIFTER.PLATE.BLACK

$12.99

$

Usually ships in 3-10 days

0

30

Jonsered 532184076

BRACKET, SHIFTER SUPPORT
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

31

Jonsered 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

33

Jonsered 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

34

Jonsered 532184075

PLATE.DRIVE.MOUNTING.BLACK

$14.99

$

Usually ships in 3-10 days

0

35

Jonsered 532182504

SPACER, BEARING

$6.99

$

Usually ships in 3-10 days

0

36

Jonsered 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

37

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

39

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

41

Jonsered 812000012

RETAINING RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

43

Jonsered 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

44

Jonsered 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0
